Adapter duct ⌀ 150 mm, 90 ° round-flatZ861SI1 • 17005362
Z861SI1 • 17005362
1 / 2
Adapter duct ⌀ 150 mm, 90 ° round-flatZ861SI1 • 17005362
Z861SI1 • 17005362
Find a local Dealer
Find a local dealer in your vicinity
Adapter duct ⌀ 150 mm, 90 ° round-flatZ861SI1 • 17005362
Z861SI1 • 17005362
Find a local Dealer
Find a local dealer in your vicinity
Check appliance compatibility
How to find your E-Number
The model number (E-number) is located on the type plate of your device.
Technical Overview
Product group for which the accessory is available
Hob
Special Features

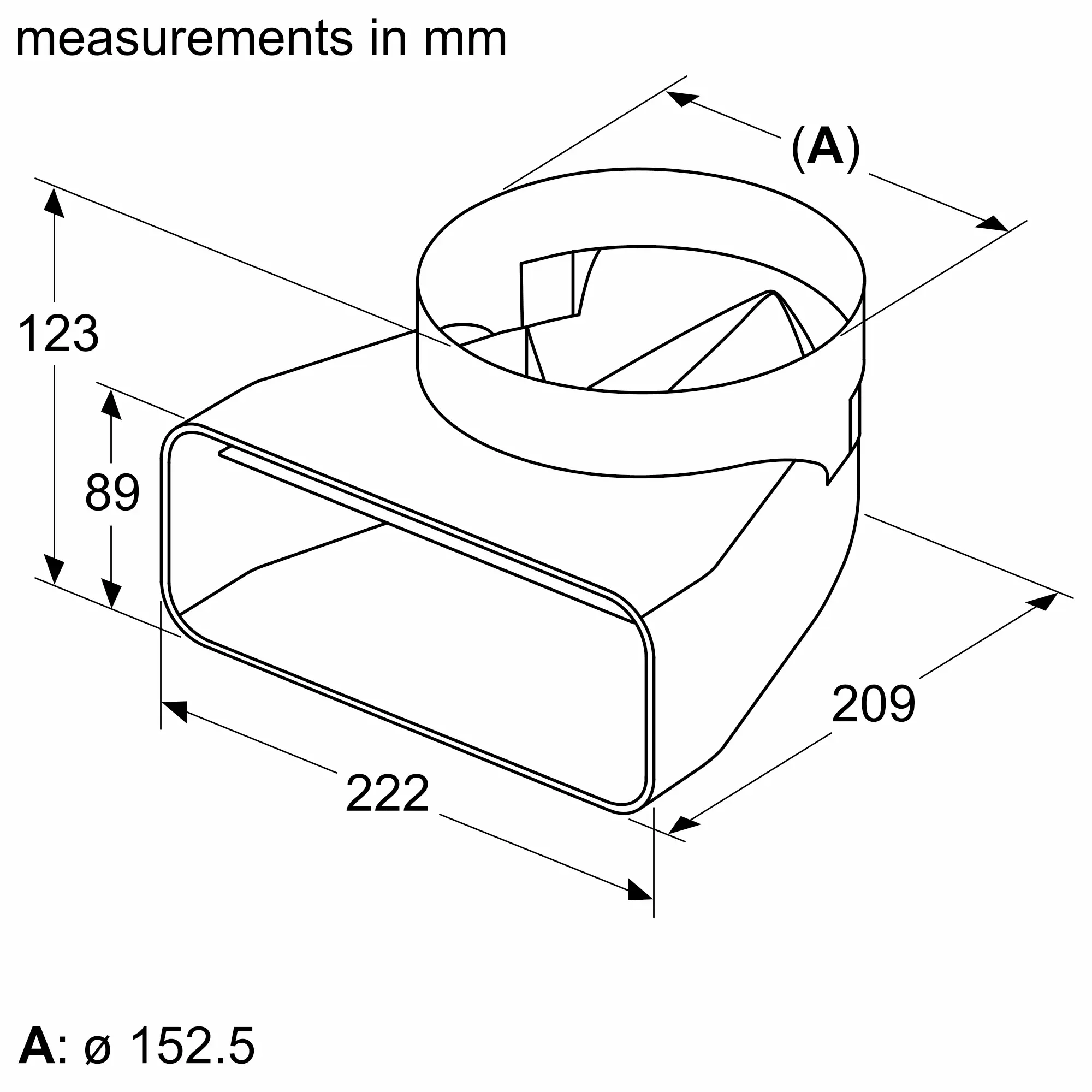

Flat to round converter with integrated 90º bend for appliances with vertical round air outlet (e.g. Glassdraft)
90° round-flat adapter element (male)
Aerodynamically optimised design to minimise pressure loss and maximise air flow rate. Easy-to-cut & easy-to-connect via the female connector sleeve element.
The element complies with the Needle Flame Test (according to IEC 60695-11-5) & the V2 flammability class (according to UL94).
