N 90 Built-in oven with added steam function 60 x 60 cm Flex DesignB69VY7MY0
B69VY7MY0
5 Year Warranty
1 / 0
N 90 Built-in oven with added steam function 60 x 60 cm Flex DesignB69VY7MY0
B69VY7MY0
Datasheet
Find a local retailer
Find a local retailer in your vicinity
5 Year Warranty
5 Year Warranty
Receive a 5 Year Warranty when you purchase this appliance between 1st April 2026 to 31st March 2027. Online registration is required. This warranty covers all manufacturing and material faults.
N 90 Built-in oven with added steam function 60 x 60 cm Flex DesignB69VY7MY0
B69VY7MY0
Datasheet
Find a local retailer
Find a local retailer in your vicinity
5 Year Warranty
5 Year Warranty
Receive a 5 Year Warranty when you purchase this appliance between 1st April 2026 to 31st March 2027. Online registration is required. This warranty covers all manufacturing and material faults.
Technical Overview
Dimensions
595x596x548 mm
Display control
TFT touchdisplay, twist pad ready
Integrated Cleaning system
Pyrolytic+Hydrolytic
Steam technology
Vario Steam - for baking and roasting
Sensors
roastingSensor Plus with time prediction
Plug type
Gardy plug w/ earthing
Home Connect Footnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
Yes
Awards
Specifications
Where can the appliance be installed
Base cabinet, high cupboard installation
Are some hobs controls integrated?
No
Which kind of hobs can be controlled
N/A
Colour of appliance
Flex Design: Brushed Bronze, Anthracite Grey, Deep Black, Metallic Silver
Door colour
Black
Color / Material panel
Black
Display control
TFT touchdisplay, twist pad ready
Number of heating & combination modes
21
Cooking method
Regeneration, CircoTherm®, Air fry, Bread Baking Setting, Full width grill, Hotair gentle, Half width grill, Conventional heat, Conventional heat gentle, Pizza setting, low temperature cooking, Bottom heat, Hot air grilling, pre-heating, warming
Heating methods only via Home Connect app
Let rest, pre-heating
Range of temperature
30-275 °C
Steam technology
Vario Steam - for baking and roasting
Integrated Cleaning system
Pyrolytic+Hydrolytic
Door hinge
Other
Usable volume (of cavity) - NEW (2010/30/EC)
71 l
Energy efficiency rating
A+
Safety device
Door lock, Child-proof lock
Included accessories

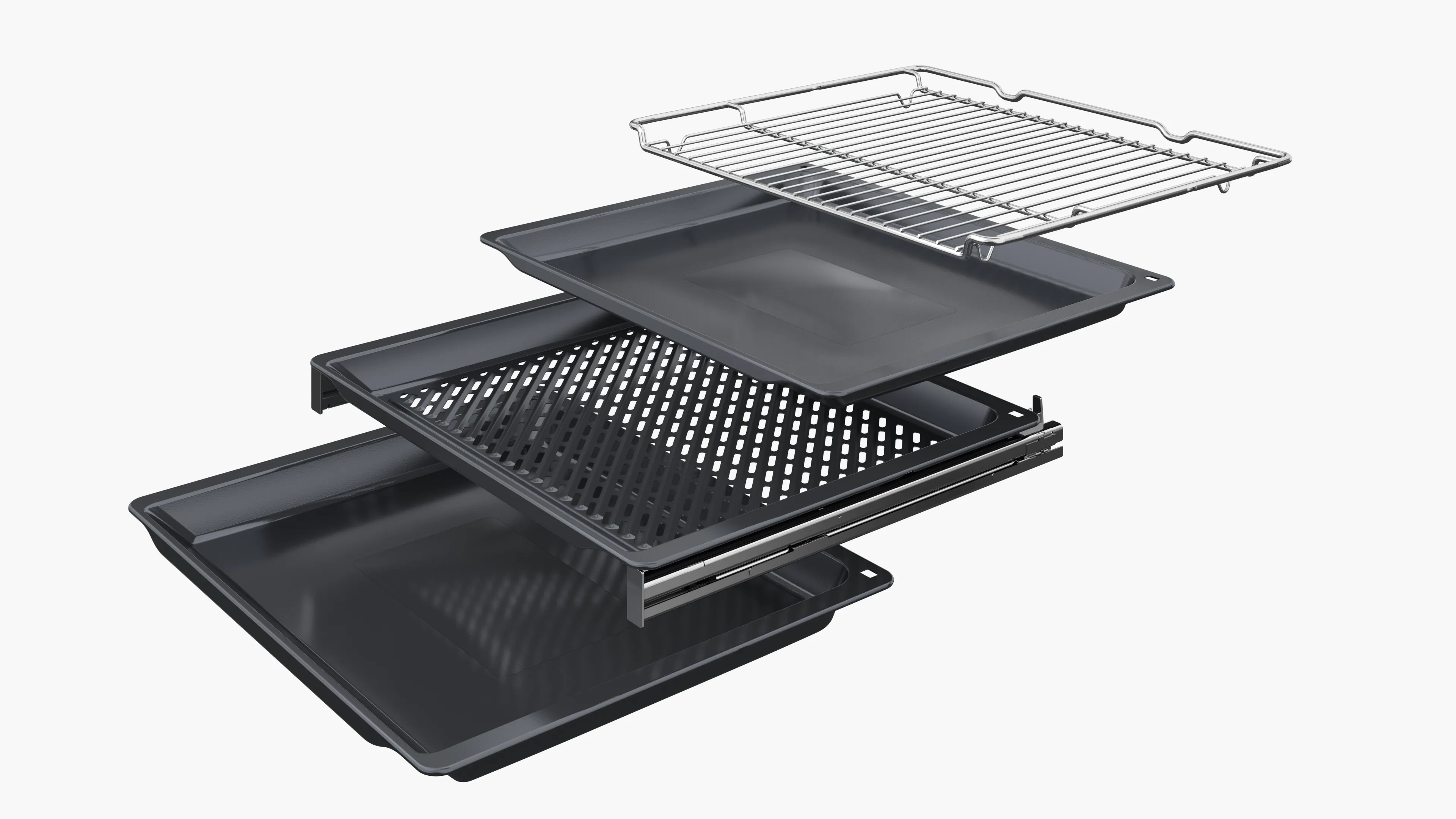

1 x enamel baking tray, 1 x combination grid, 1 x universal pan, 1 x air fry & grill tray
Dimensions
595x596x548 mm
Dimensions of the packed product (HxWxD)
660x660x690 mm
Minimum height for installation
585 mm
Maximum height for installation
595 mm
Minimum width for installation
560 mm
Maximum width for installation
568 mm
Depth for installation
550 mm
Net weight
43.1 kg
Length electrical supply cord
120 cm
1 / 0
Plug type
Gardy plug w/ earthing
Connecting cable type
1-phase, neutral conductor
Length electrical supply cord
120 cm
Voltage
220-240 V
Connection Rating
3600 W
Fuse protection
16 A
Included user manuals
[DE]
Hide® - the fully disappearing oven door
Yes
Slide&Hide® - the fully disappearing oven door with rotating handle
Yes
Flex Design
yes (choose between anthracite grey, deep black, brushed bronze, metallic silver as special accessory)
Supporting systems
Dishes
cookm coolstart
No
Less time needed for preheating
Yes
Pizza setting
Yes
Crisp function
No
Air Fry function
Yes
Sensors
roastingSensor Plus with time prediction
Cooking-Assistant in Home Connect App
yes (available with connected Home Connect account)
Voice control via voice assistant
yes (available with connected Home Connect account & third party, e.g. Alexa, is required)
Automatic door opening via voice control
No
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
Yes
Home Connect Features
iService Remote, Remote Monitoring and Control
