Technical Overview
Installation typology
Island
Type of appliance width
90 cm
Colour of appliance
Stainless steel
Sound power at max. speed (2010/30/EC)
57 dB
Maximum output air extraction
430 m³/h
Boost position air extraction
670 m³/h
Operating Mode
Convertible
Home Connect Footnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Highlights
Specifications
Type of appliance width
90 cm
Color body
Stainless steel
Installation typology
Island
Operating Mode
Convertible
Total power of the motors
130 W
Type of control setting devices
7-segment display, Low-lift pushbuttons
Number of speed settings
3-stage + 2 intensive
Maximum output air extraction
430 m³/h
Boost position air extraction
670 m³/h
Sound power at max. speed (2010/30/EC)
57 dB
Sound power boost (2010/30/EC)
68 dB
Maximum output recirculating air
290 m³/h
Boost position output recirculating
350.0 m³/h
Sound power at max. speed (recirculation)
68 dB
Sound power boost (recirculation)
72 dB
Grease filter material
Washable aluminium
Energy efficiency rating
A
Total annual energy consumption
33.2 kWh/annum
Height of the appliance
52 mm
Width of the appliance
900 mm
Depth
680 mm
Dimensions of the packed product (HxWxD)
885 x 610 x 1030 mm
Height of the chimney
699-879/699-999 mm
Minimum distance above an electric hob
550 mm
Minimum distance above a gas hob
650 mm
Diameter of air outlet
150 / 120 mm
No-return airflow flap
No
Length electrical supply cord
130.0 cm
Net weight
35.1 kg
Handle bar
Not applicable
Appliance height exhaust air max
931 mm
Appliance height exhaust air min
751 mm

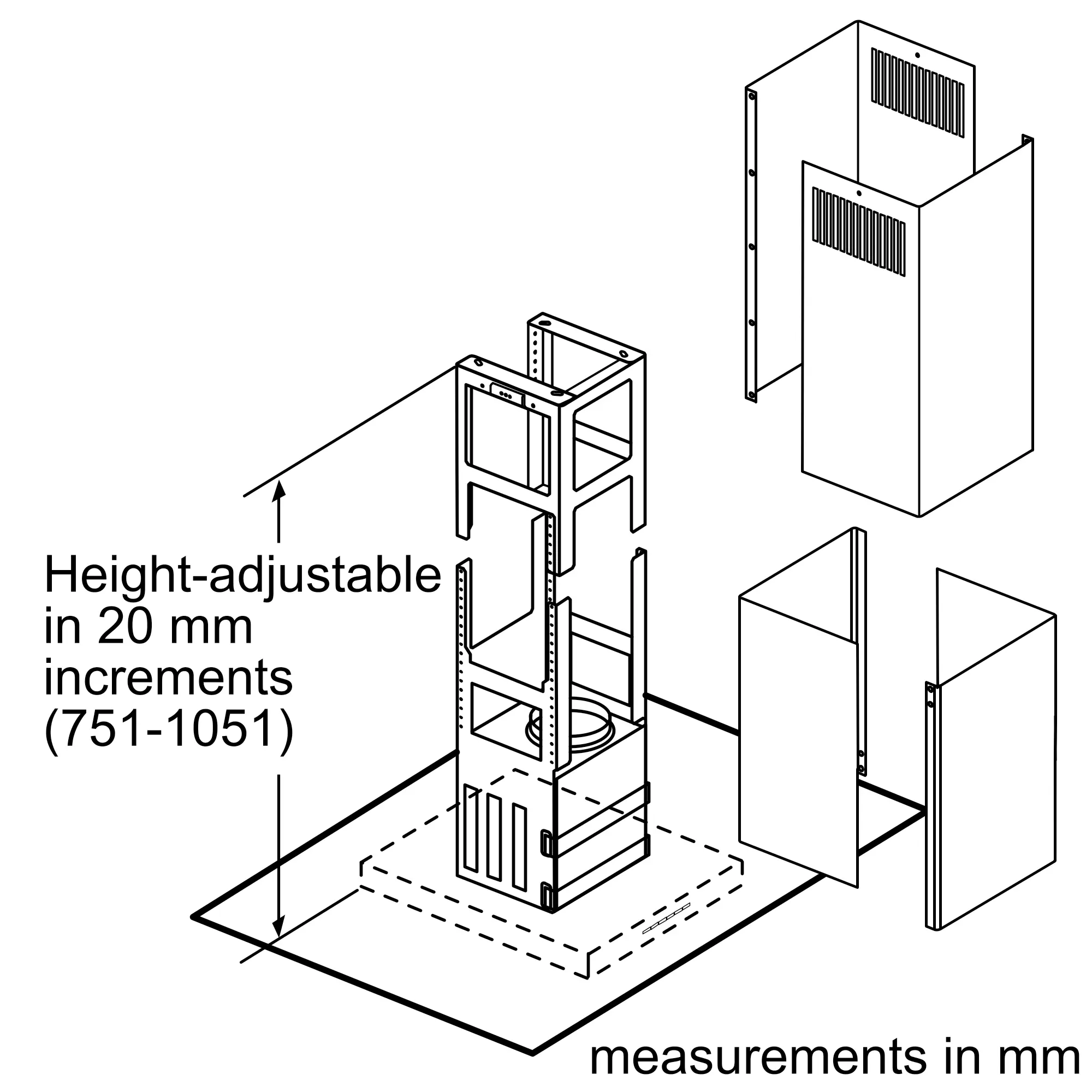

Appliance height recirculating max
1051 mm
Appliance height recirculating min
751 mm
1 / 0
climatecontrol sensor
No
SilentPowerDrive
Yes
Silence
Yes
Clean filter reminders
Yes
Boost position
Yes
Delay Shut off modes
Yes
Remote control
No
Type of lamps used
LED
Number of lights
4
Total power of the lamps
12 W
Total luminance
1201 lm
Colour temperature
Neutral (3.500 K)
Illumination type softlight
Yes
Color temperature control via smartphone with Home Connect
No
emotionLight Pro
No
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Control your hood with your Home Connect hob
No
Smart Hood Automatic
No
