Technical Overview
Installation typology
Wall-mounted
Type of appliance width
60 cm
Control your hood with your Home Connect hob
No
Sound pressure recirculated air level 2
50 dB(A) re 1 pW
climatecontrol sensor
No
Operating Mode
Convertible
Maximum output air extraction
450 m³/h
Specifications
Type of appliance width
60 cm
Color body
Stainless steel
Installation typology
Wall-mounted
Operating Mode
Convertible
Total power of the motors
130 W
Type of control setting devices
Rocker switches
Number of speed settings
3
Maximum output air extraction
450 m³/h
Sound power at max. speed (2010/30/EC)
62 dB
Maximum output recirculating air
290 m³/h
Sound power at max. speed (recirculation)
71 dB
Grease filter material
Washable aluminium
Energy efficiency rating
D
Total annual energy consumption
91.6 kWh/annum

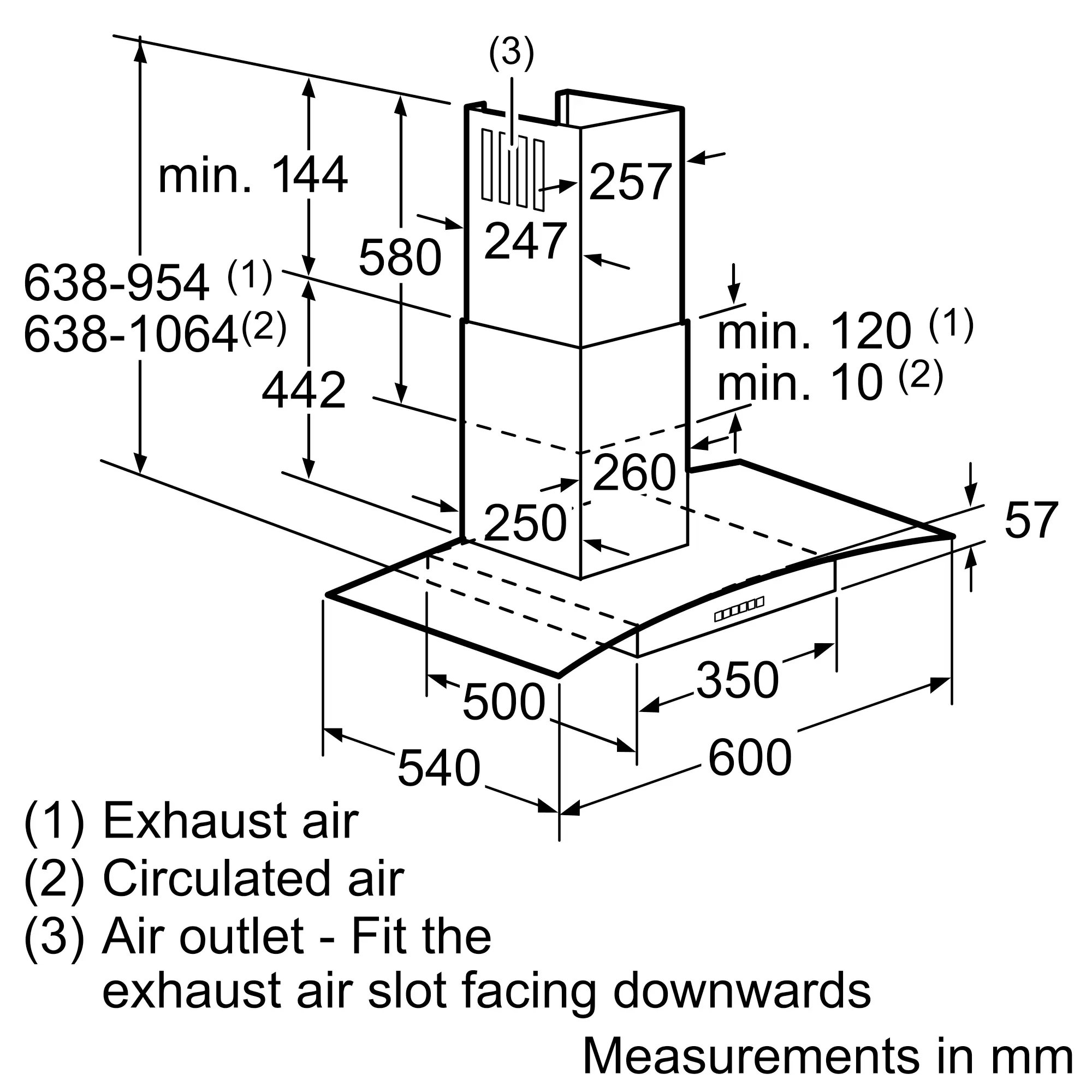

Height of the appliance
57 mm
Width of the appliance
600 mm
Depth
540 mm
Dimensions of the packed product (HxWxD)
585 x 650 x 670 mm
Height of the chimney
581-897/581-1007 mm
Minimum distance above an electric hob
550 mm
Minimum distance above a gas hob
650 mm
Diameter of air outlet
120 / 150 mm
No-return airflow flap
No
Length electrical supply cord
130.0 cm
Net weight
21.2 kg
Handle bar
Not applicable
Appliance height exhaust air max
954 mm
Appliance height exhaust air min
638 mm
Appliance height recirculating max
1064 mm
Appliance height recirculating min
638 mm
1 / 0
climatecontrol sensor
No
SilentPowerDrive
No
Silence
No
Clean filter reminders
No
Boost position
No
Delay Shut off modes
No
Remote control
No
Type of lamps used
Halogen
Number of lights
2
Total power of the lamps
40 W
Total luminance
372 lm
Colour temperature
Warm (<= 3.000 K)
Illumination type softlight
No
Color temperature control via smartphone with Home Connect
No
emotionLight Pro
No
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Control your hood with your Home Connect hob
No
Smart Hood Automatic
No
