Technical Overview
Installation typology
Wall-mounted
Type of appliance width
90 cm
Control your hood with your Home Connect hob
Yes
climatecontrol sensor
Yes
Operating Mode
Convertible
Maximum output air extraction
394 m³/h
Boost position air extraction
717 m³/h
Specifications
Type of appliance width
90 cm
Color body
Black
Installation typology
Wall-mounted
Operating Mode
Convertible
Total power of the motors
140 W
Number of speed settings
3-stage + 2 intensive
Maximum output air extraction
394 m³/h
Boost position air extraction
717 m³/h
Sound power at max. speed (2010/30/EC)
57 dB
Sound power boost (2010/30/EC)
70 dB
Maximum output recirculating air
249 m³/h
Boost position output recirculating
404 m³/h
Sound power at max. speed (recirculation)
62 dB
Sound power boost (recirculation)
72 dB

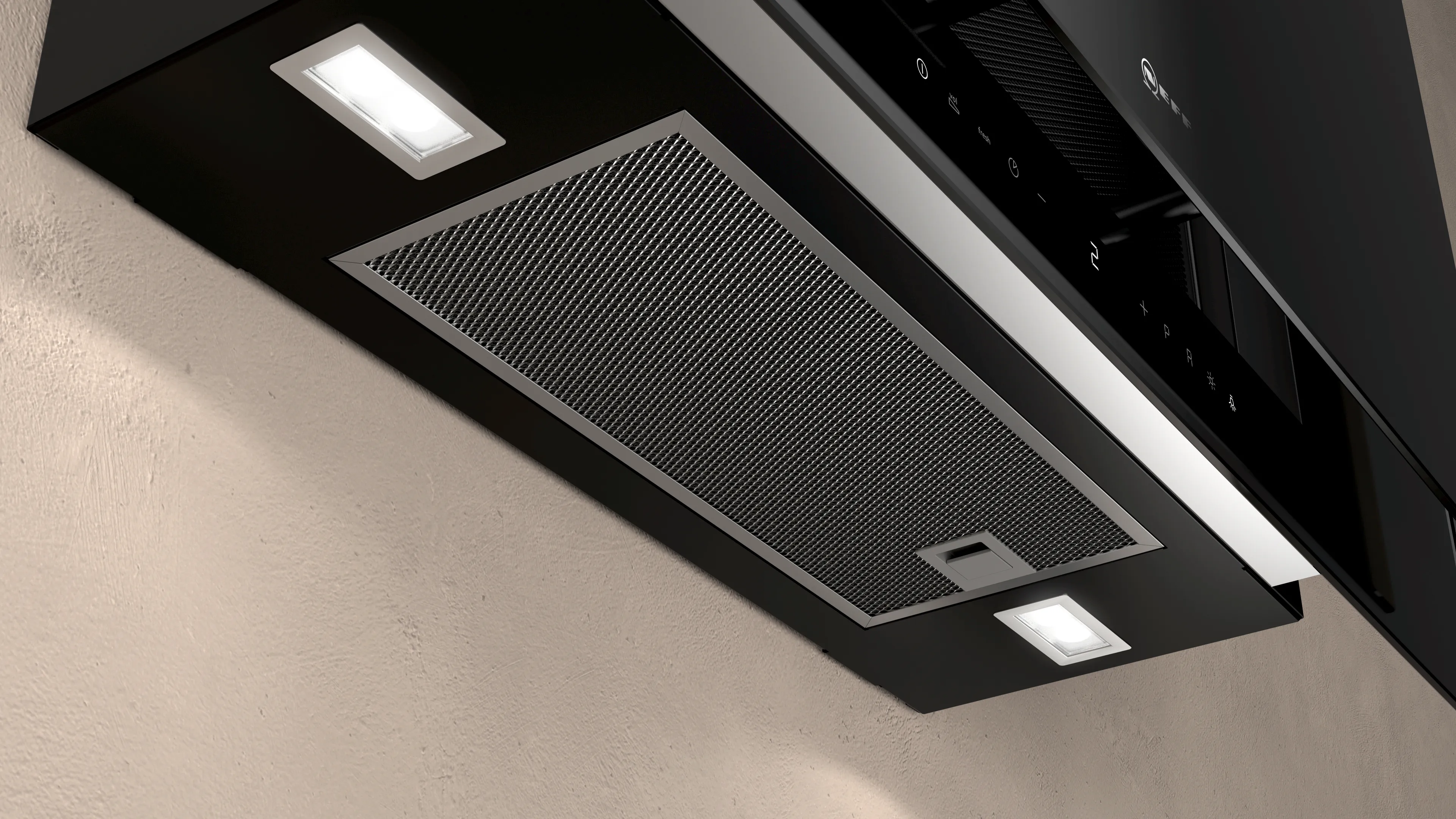

Grease filter material
Washable aluminium
Energy efficiency rating
B
Total annual energy consumption
40.0 kWh/annum
Included user manuals
[EN]

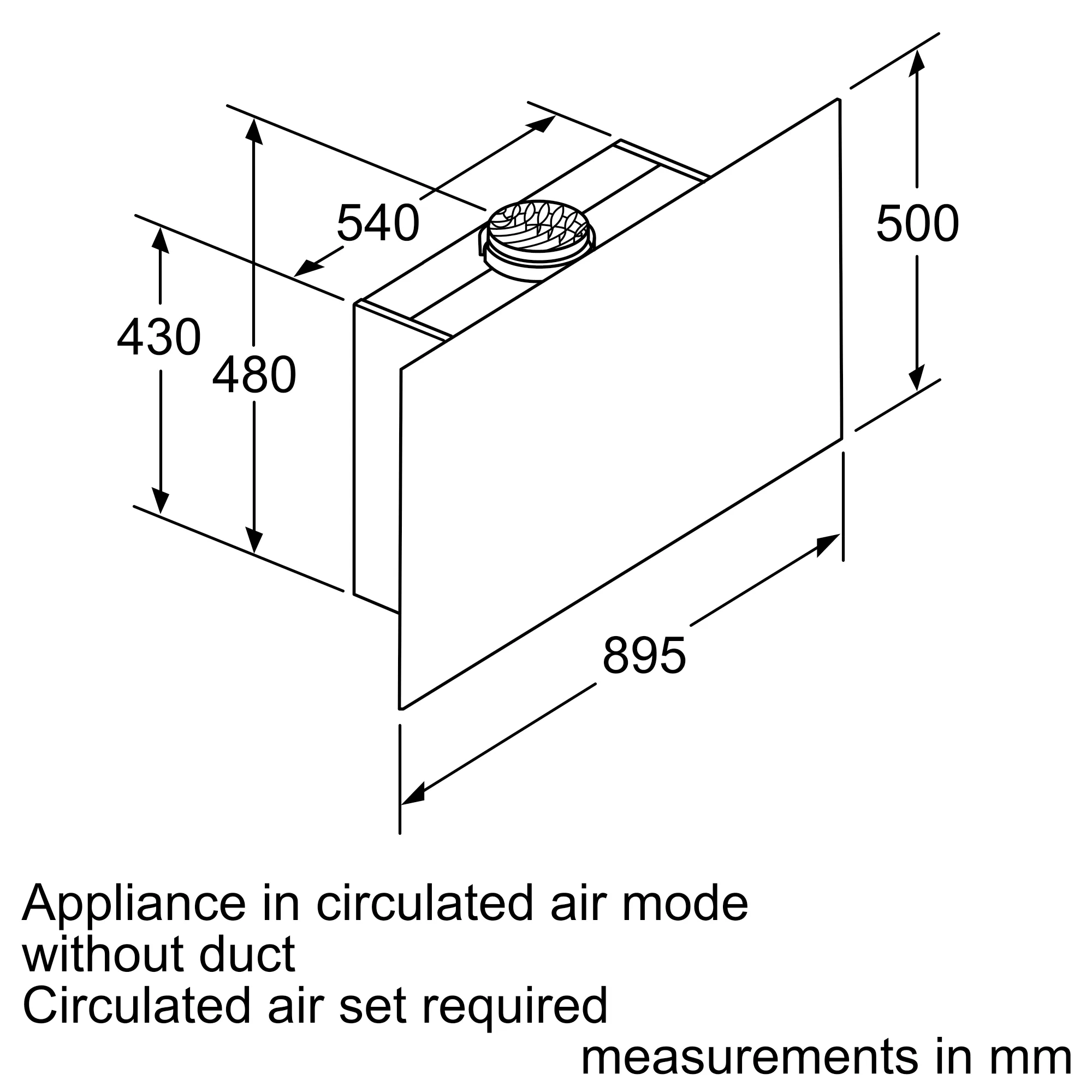

Height of the appliance
430 mm
Width of the appliance
895 mm

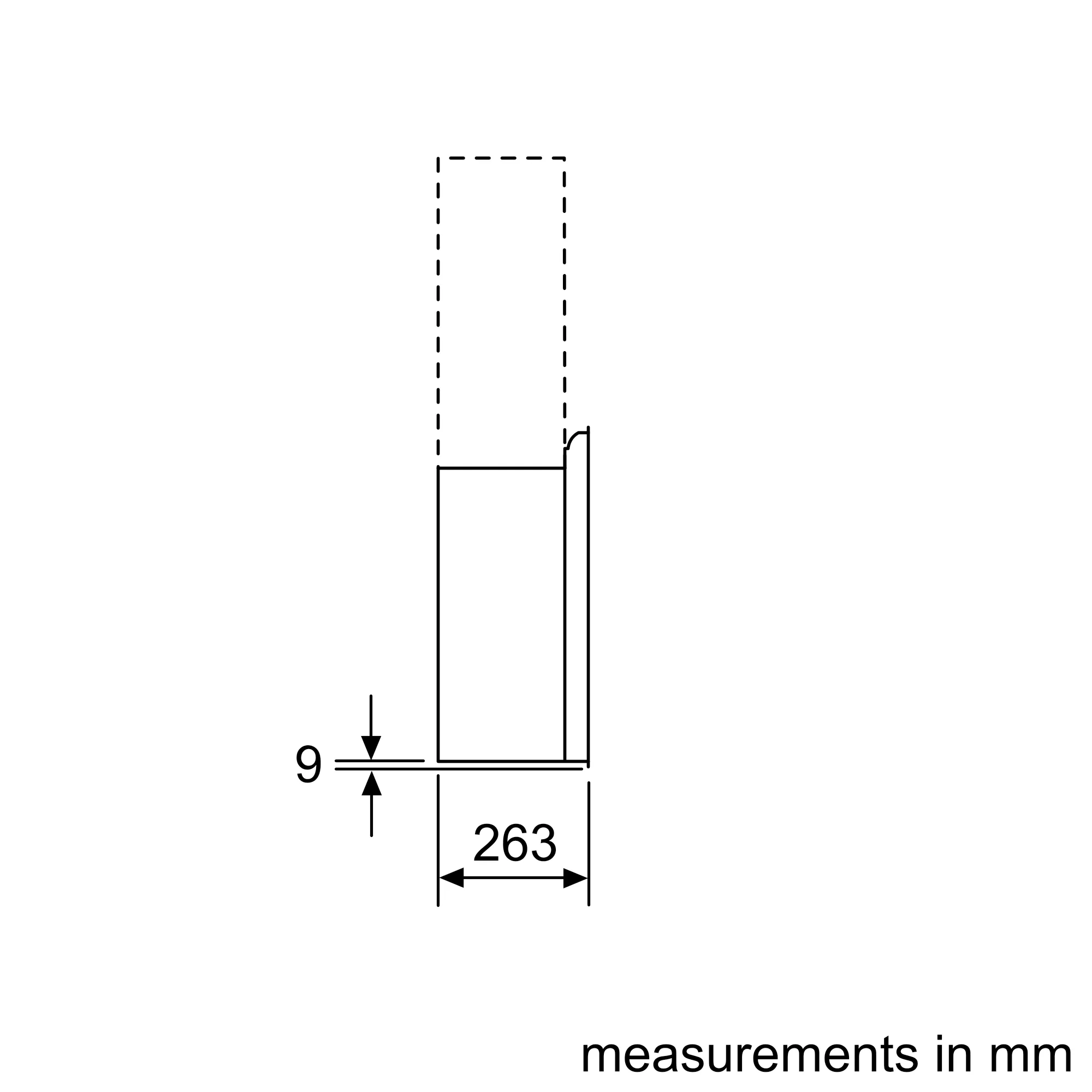

Depth
263 mm
Dimensions of the packed product (HxWxD)
540x740x1040 mm

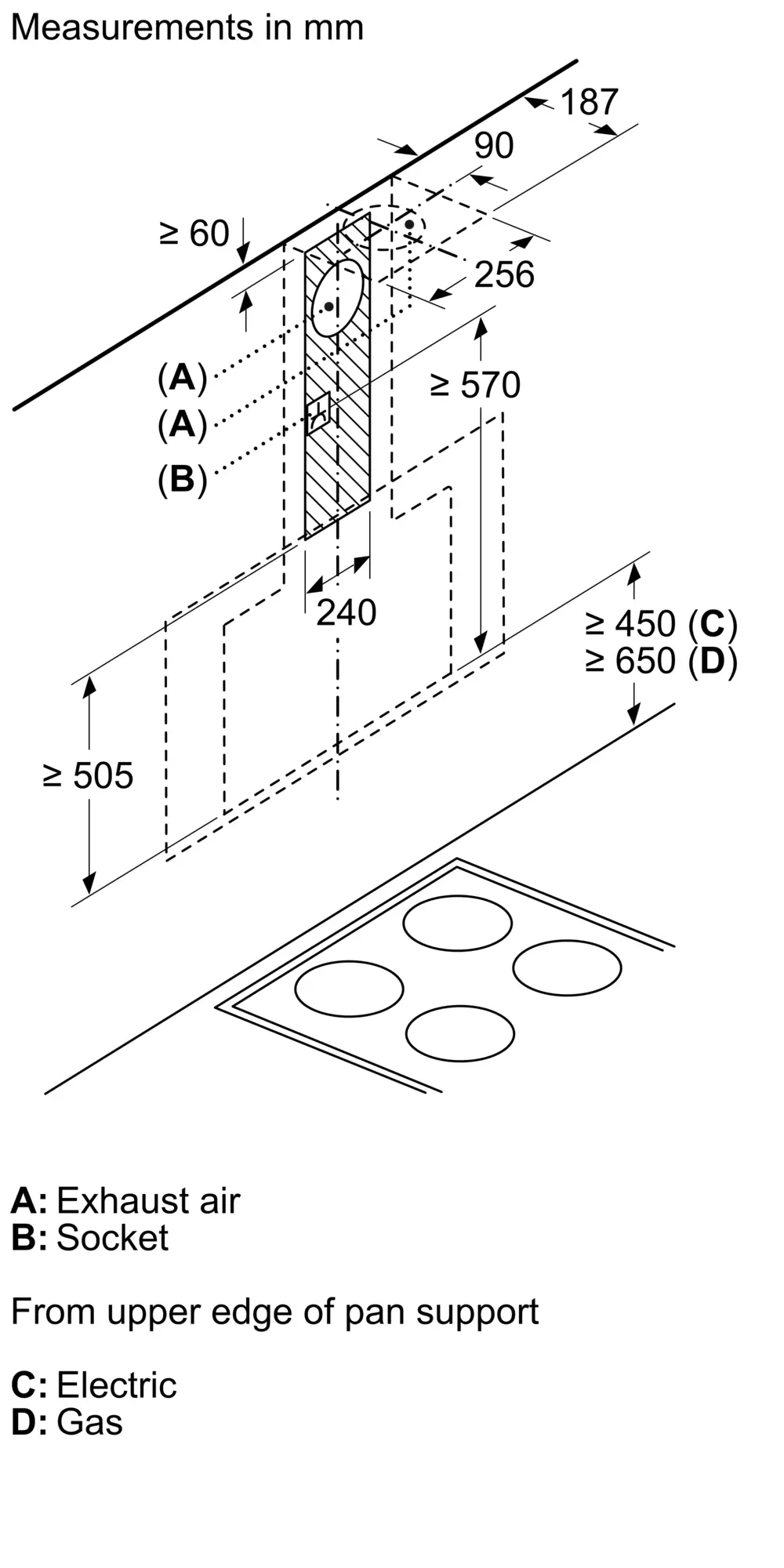

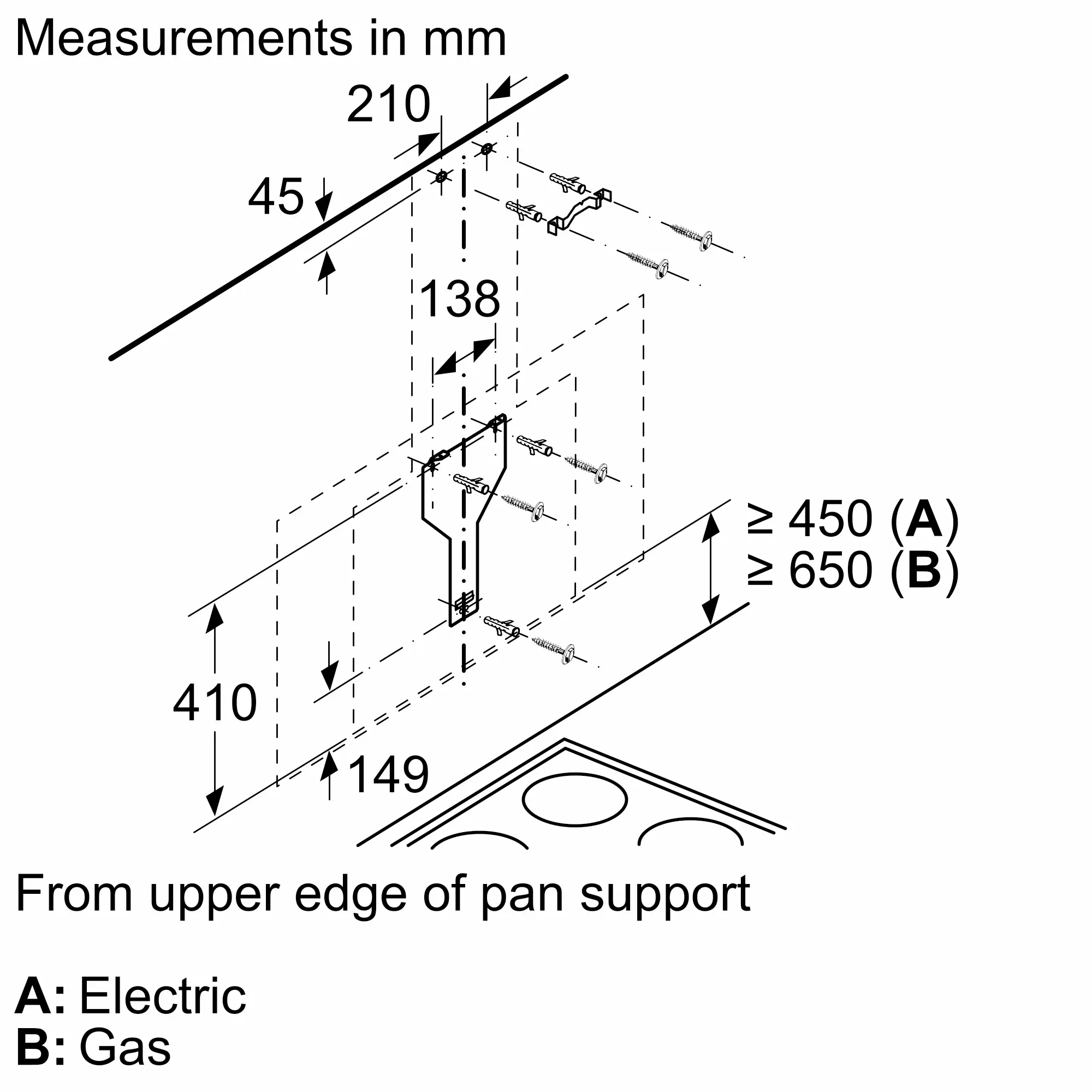

Minimum distance above an electric hob
450 mm
Minimum distance above a gas hob
650 mm
Diameter of air outlet
120 / 150 mm
No-return airflow flap
No
Length electrical supply cord
130 cm
Net weight
23.1 kg
Handle bar
Not applicable

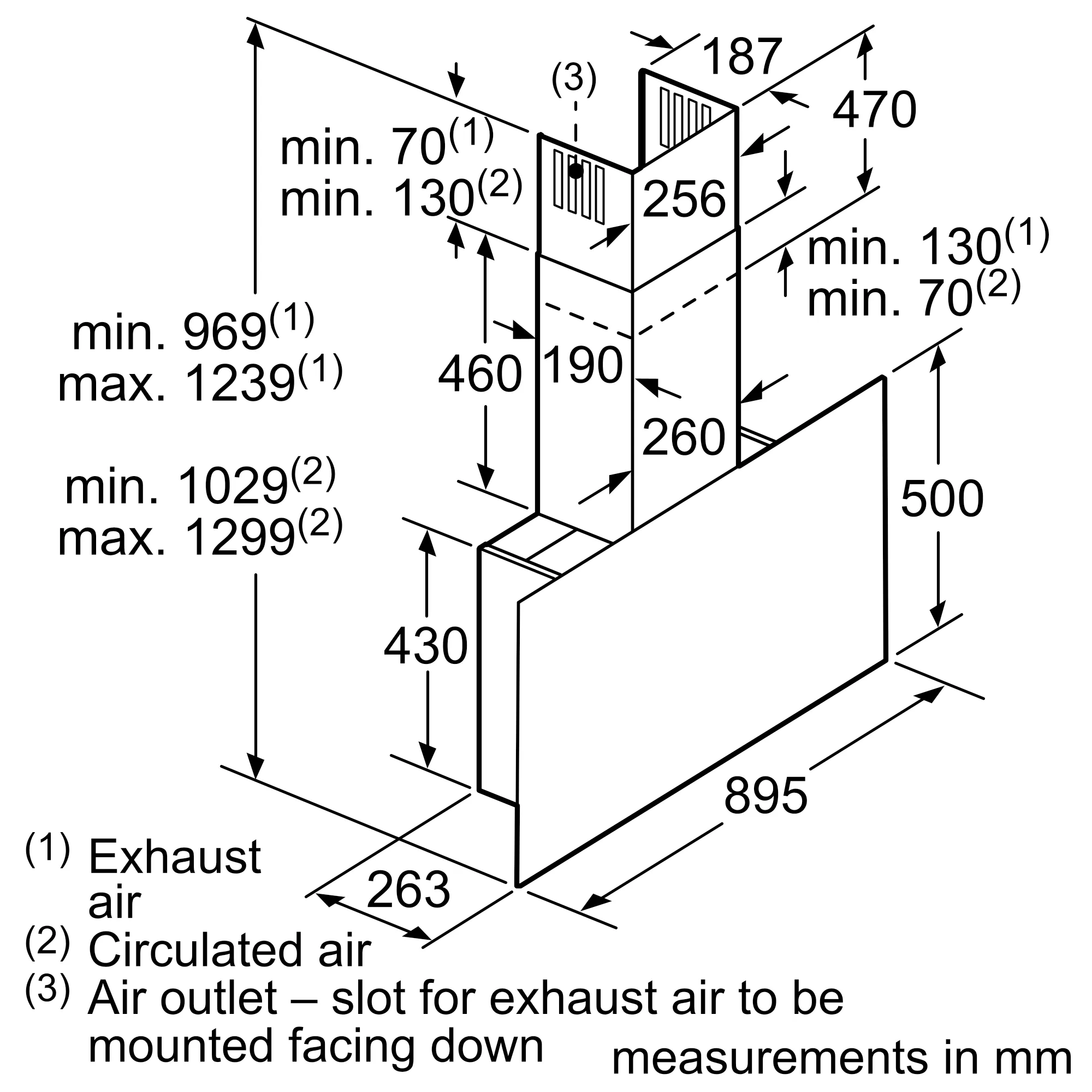

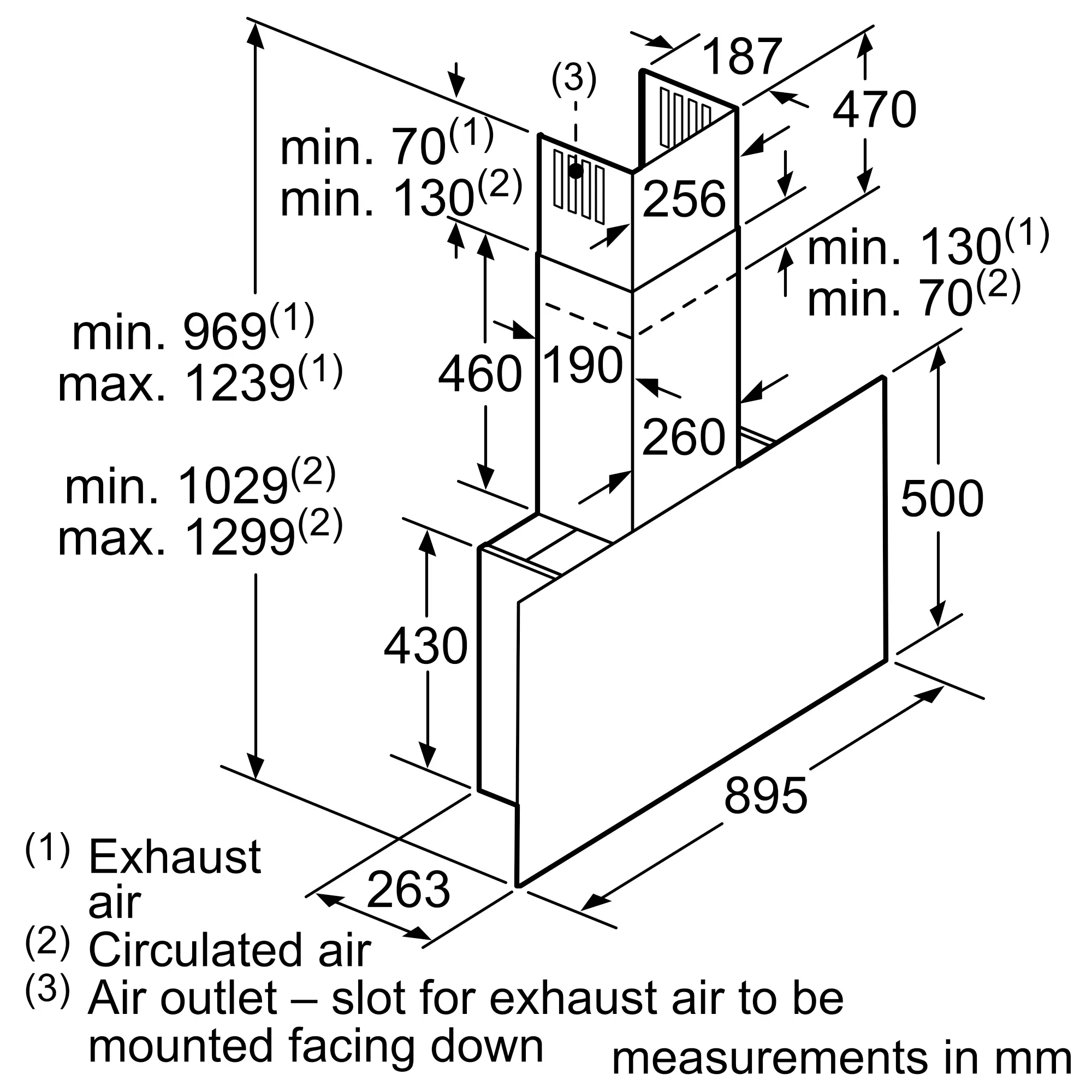

Appliance height exhaust air max
1239 mm
Appliance height exhaust air min
969 mm
Appliance height recirculating max
1299 mm
Appliance height recirculating min
1029 mm
1 / 0
climatecontrol sensor
Yes
SilentPowerDrive
Yes
Silence
Yes
Clean filter reminders
Yes
Boost position
Yes
Delay Shut off modes
Yes
Remote control
No
Type of lamps used
LED
Number of lights
2
Total luminance
589 lux
Colour temperature
Neutral (3.500 K)
Illumination type softlight
Yes
Color temperature control via smartphone with Home Connect
No
emotionLight Pro
Yes
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
Yes
Home Connect Features
Remote Monitoring and Control
Control your hood with your Home Connect hob
Yes
Smart Hood Automatic
No
