Technical Overview
Installation typology
Wall-mounted
Type of appliance width
90 cm
Control your hood with your Home Connect hob
No
Sound pressure recirculated air level 2
50 dB(A) re 1 pW
climatecontrol sensor
No
Operating Mode
Convertible
Maximum output air extraction
460 m³/h
Boost position air extraction
730 m³/h
Highlights
Specifications
Type of appliance width
90 cm
Color body
Stainless steel
Installation typology
Wall-mounted
Operating Mode
Convertible
Total power of the motors
130 W

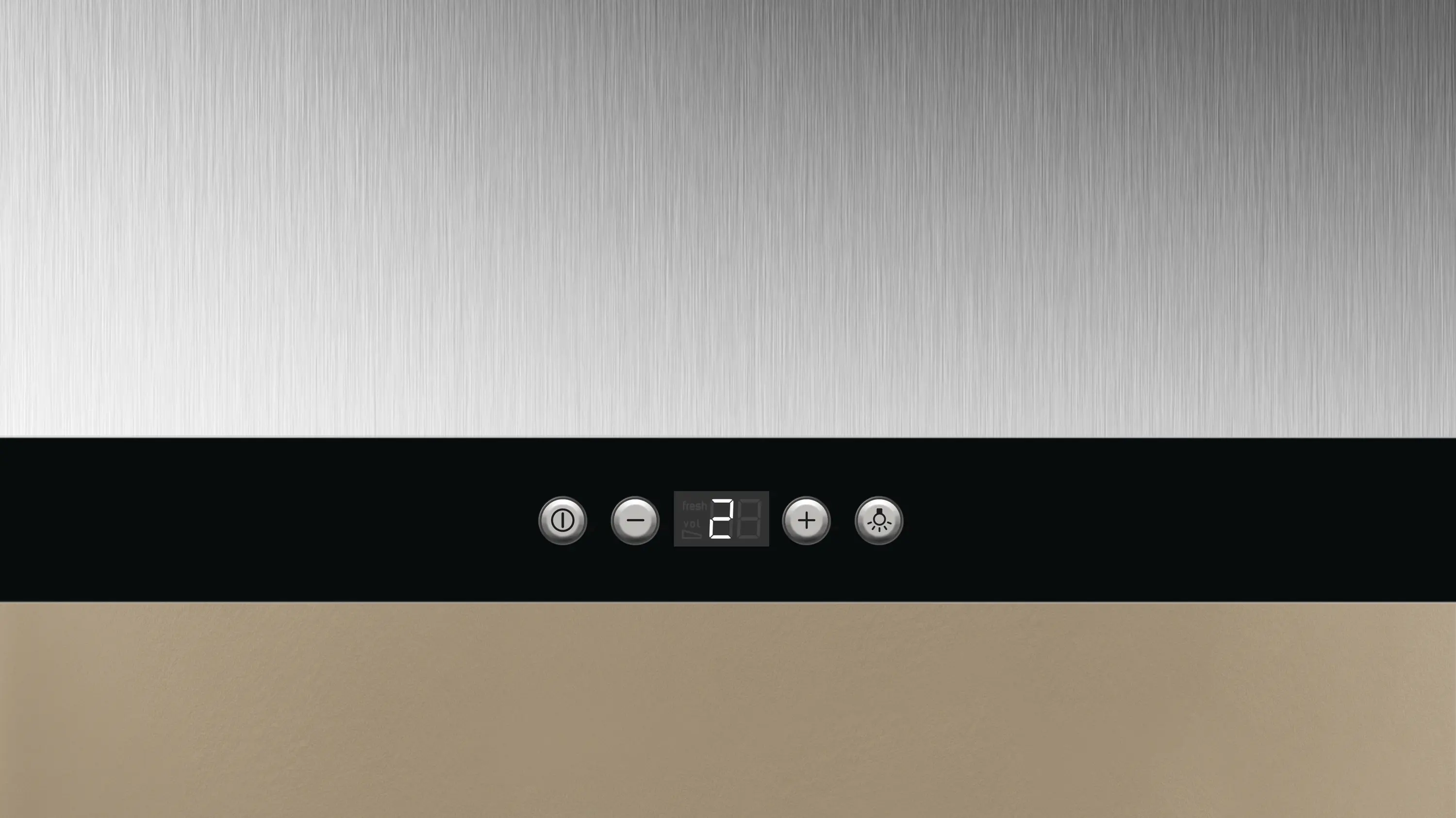

Type of control setting devices
7-segment display, Low-lift pushbuttons
Number of speed settings
3-stage + 2 intensive
Maximum output air extraction
460 m³/h
Boost position air extraction
730 m³/h
Sound power at max. speed (2010/30/EC)
55 dB
Sound power boost (2010/30/EC)
65 dB
Maximum output recirculating air
340 m³/h
Boost position output recirculating
440.0 m³/h
Sound power at max. speed (recirculation)
68 dB
Sound power boost (recirculation)
73 dB

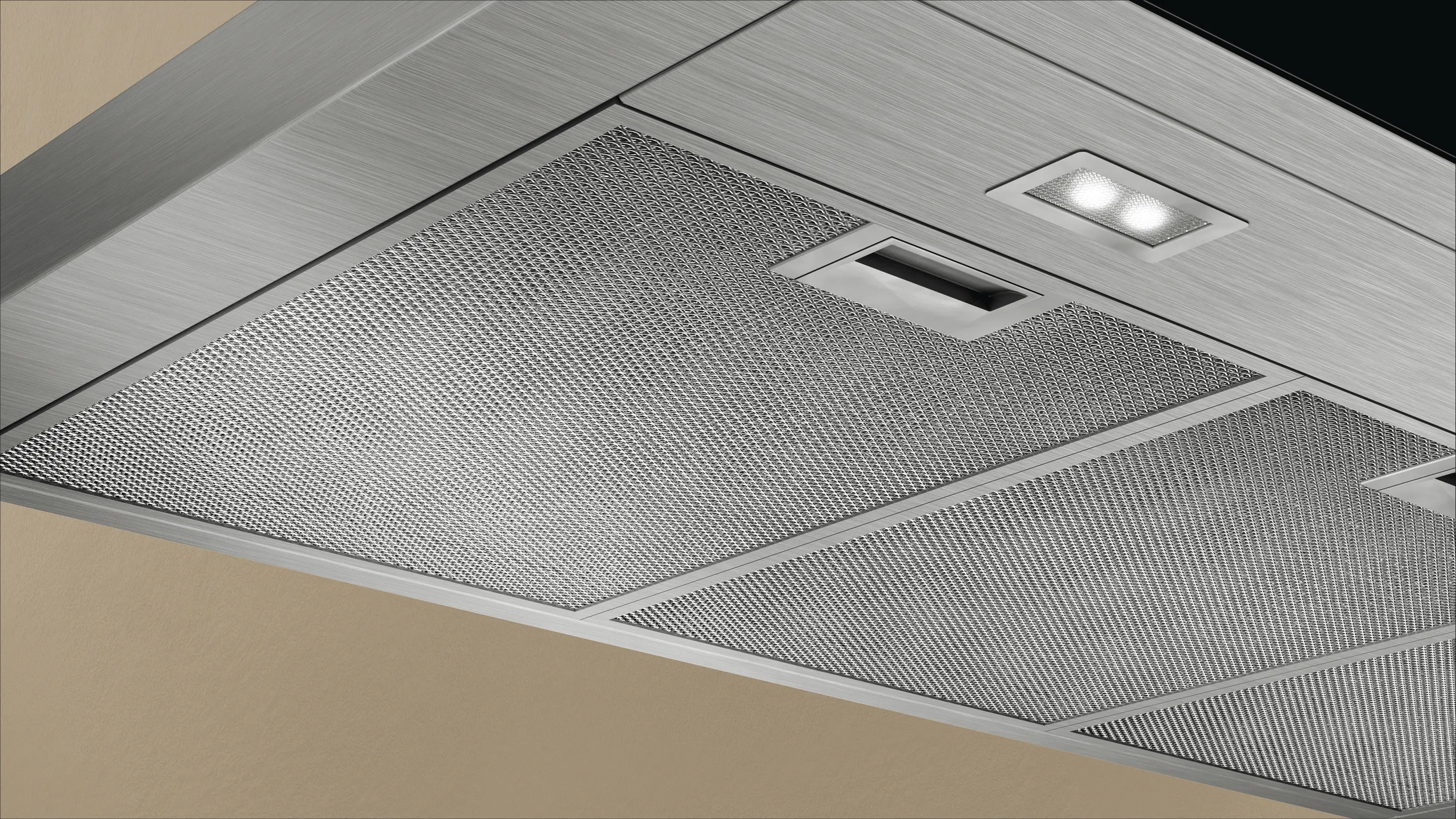

Grease filter material
Washable aluminium
Energy efficiency rating
A+
Total annual energy consumption
32.5 kWh/annum

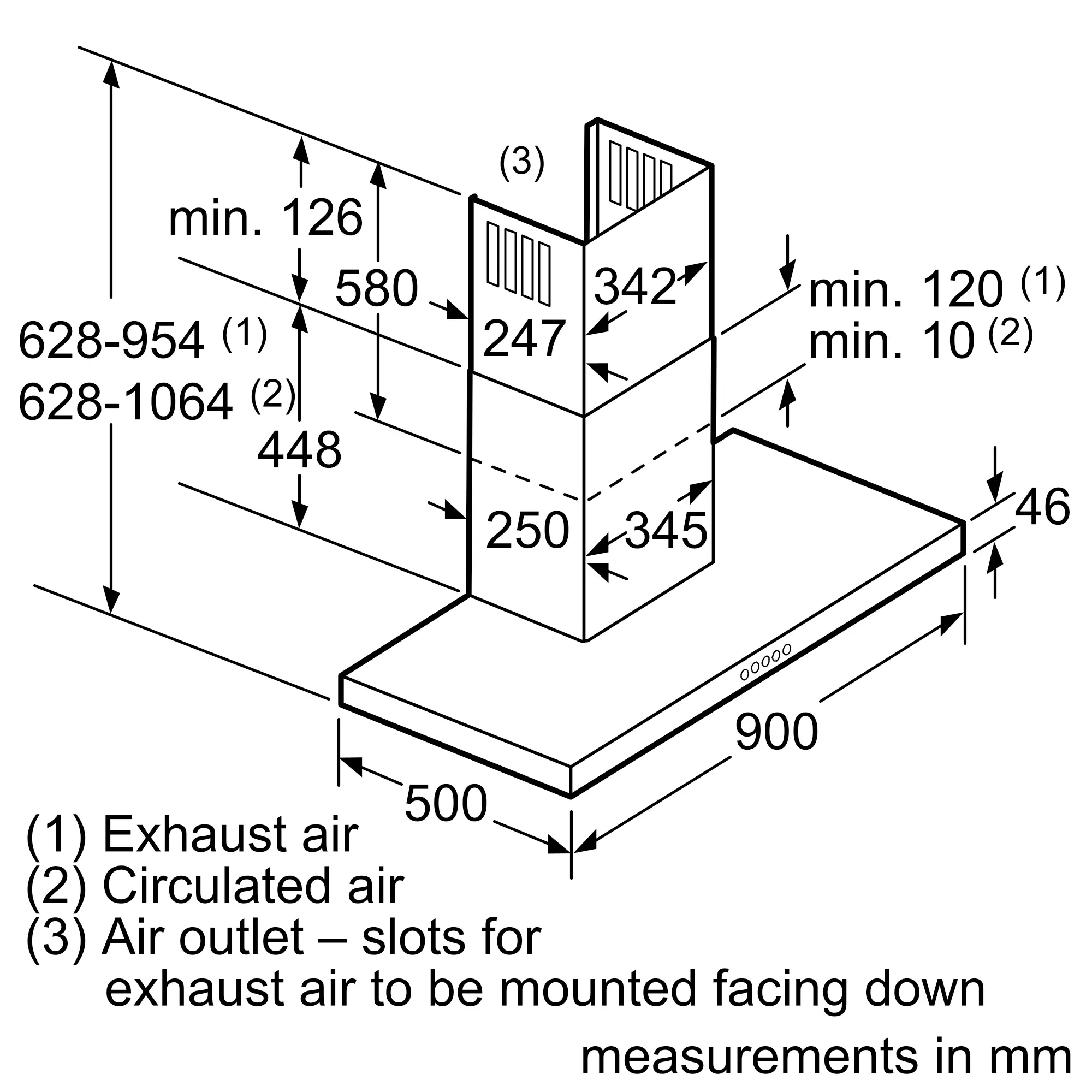

Height of the appliance
46 mm
Width of the appliance
900 mm
Depth
500 mm
Dimensions of the packed product (HxWxD)
585 x 650 x 970 mm
Height of the chimney
582-908/582-1018 mm

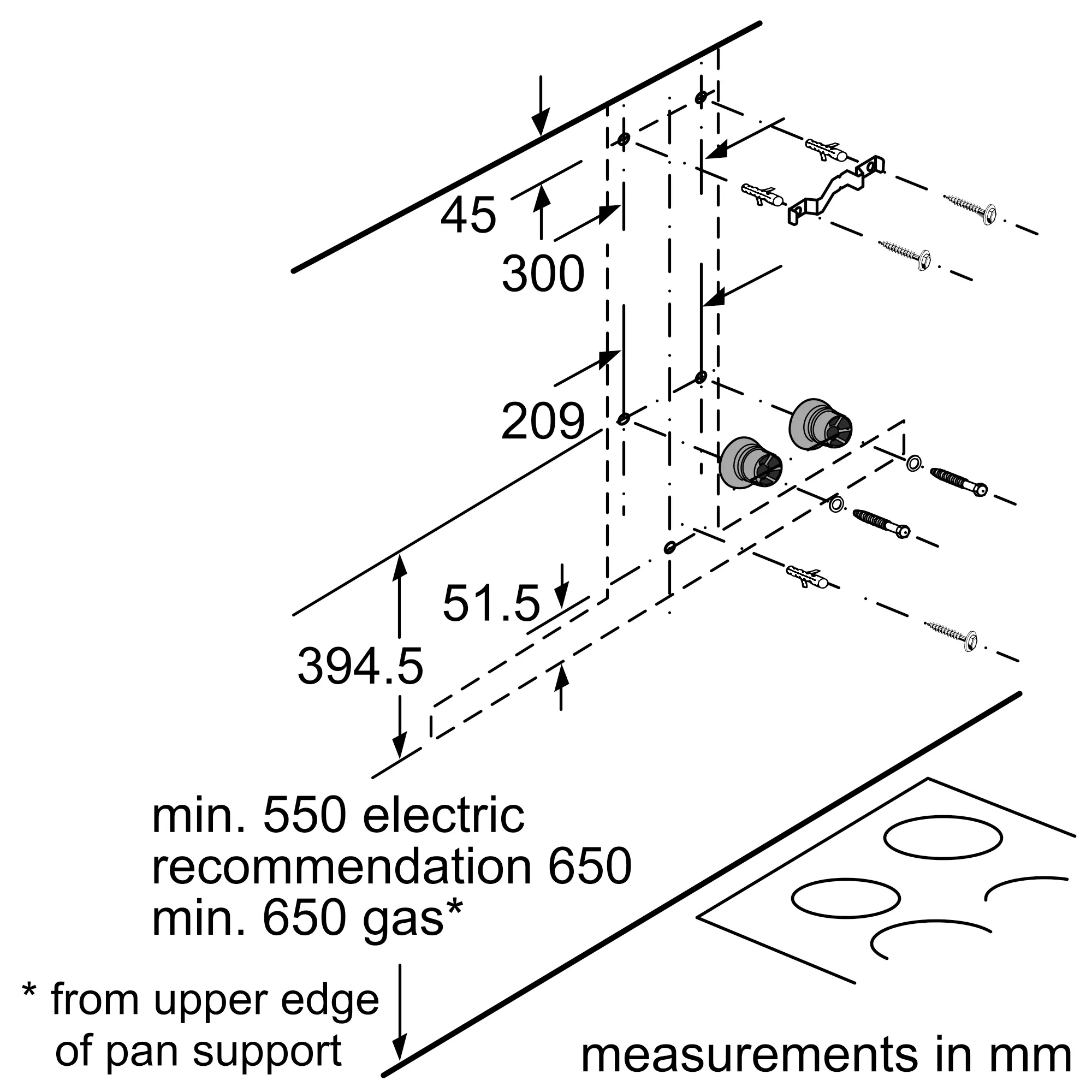

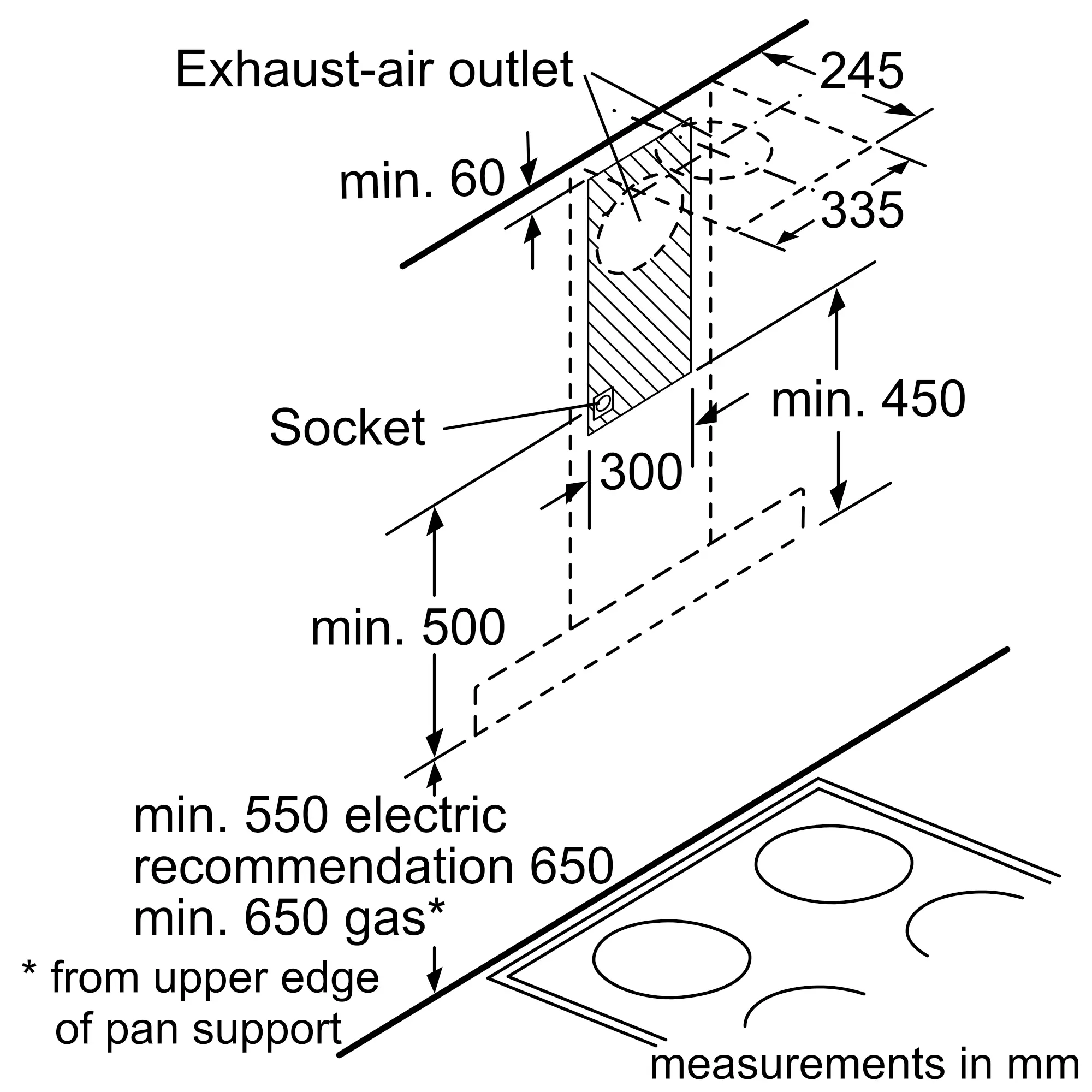

Minimum distance above an electric hob
550 mm
Minimum distance above a gas hob
650 mm

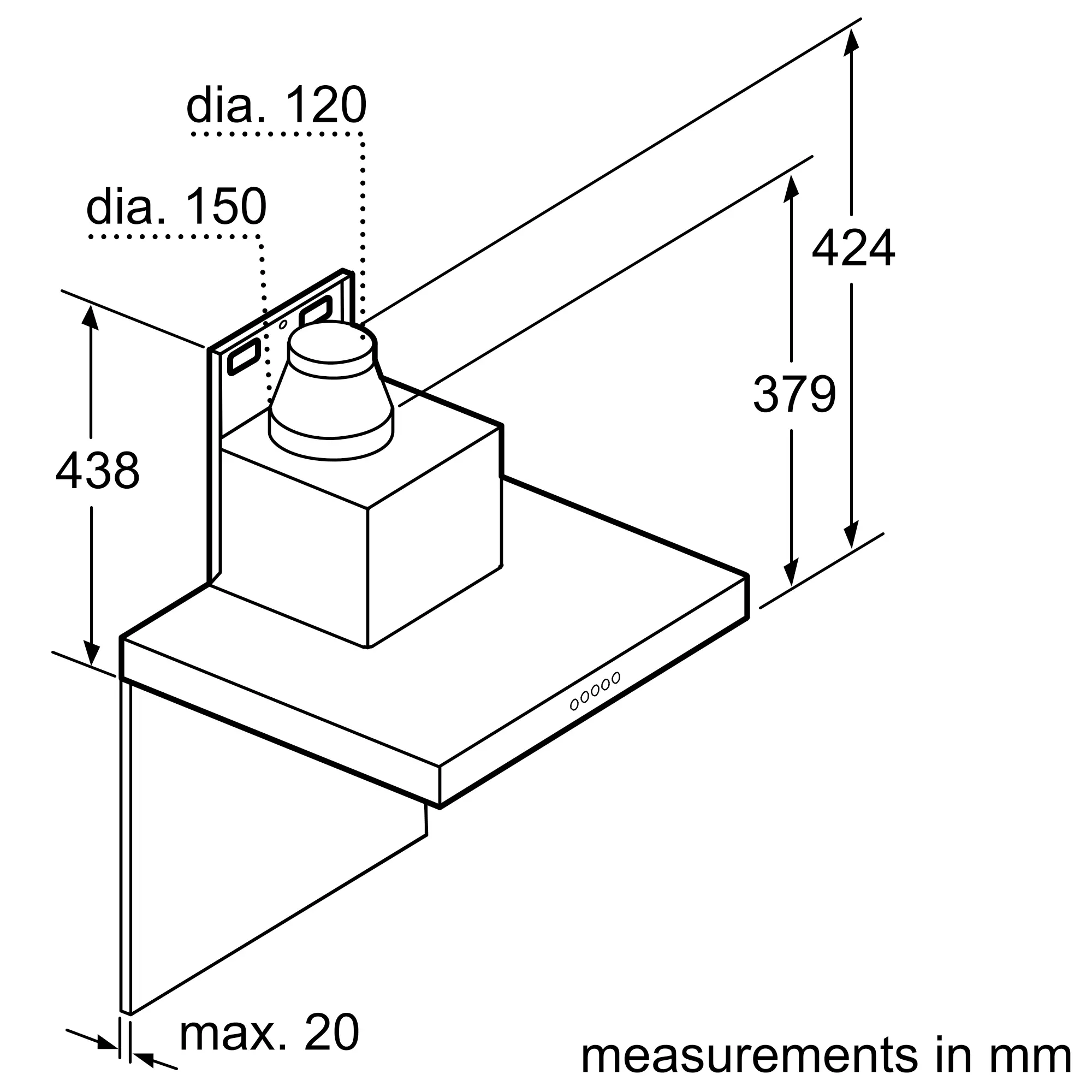

Diameter of air outlet
150 / 120 mm
No-return airflow flap
No
Length electrical supply cord
130 cm
Net weight
23.2 kg
Handle bar
Not applicable
Appliance height exhaust air max
954 mm
Appliance height exhaust air min
628 mm
Appliance height recirculating max
1064 mm
Appliance height recirculating min
628 mm
1 / 0
climatecontrol sensor
No
SilentPowerDrive
Yes
Silence
Yes
Clean filter reminders
Yes
Boost position
Yes
Delay Shut off modes
Yes
Remote control
No
Type of lamps used
LED
Number of lights
3
Total power of the lamps
9 W
Total luminance
897 lux
Colour temperature
Neutral (3.500 K)
Illumination type softlight
Yes
Color temperature control via smartphone with Home Connect
No
emotionLight Pro
No
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Control your hood with your Home Connect hob
No
Smart Hood Automatic
No
