Technical Overview
Cooktop type
Gas cooktop
Number of cooking zones
5
FlameSelect with 9 steps
Yes
Frame type
Flush or surface mounted
Basic surface material
Tempered glass
Material of pan supports
Cast iron separable
Gas type preset
Nat gas H/E/(L) 20 (25) mbar
Nozzle set included for alternative gas type
Liquid gas G30,31 28-30/37mbar
Highlights
Specifications
Basic surface material
Tempered glass
Colour of appliance
Black
Frame type
Flush or surface mounted
Flushmount
Yes
Material of pan supports
Cast iron separable
Knob illumination
No
Knob Material
Full metal
Flat burner
No
Gas type preset
Nat gas H/E/(L) 20 (25) mbar
Other certified gas types
Nat gas L/LL G25/20mbar(DE), Natural gas H 25 mbar (HU), Natural gas L 25 mbar (NL), Liquid gas G30,31 28-30/37mbar, Liquid gas G30 37 mbar (PL), Liquid gas 50 mbar
Nozzle set included for alternative gas type
Liquid gas G30,31 28-30/37mbar
Type of appliance width
75 cm
Dimensions
45x752x520 mm
Dimensions of the packed product (HxWxD)
150x790x600 mm
Required niche size for installation (HxWxD)
45 x 560-560 x 480-490 mm
Minimum worktop thickness (without spacer / with spacer, order seperately)
20 mm / 12 mm
Minimum worktop thickness for flush installation
30 mm
Length electrical supply cord
100 cm
Plug type
no plug (electrical connection by electrician)
Gas connection rating
11500 W
Number of cooking zones
5
Dual wok burner
No
Power of the heating elements
1 x 1.0, 1 x 3.0, 1 x 4.0, 2 x 1.75 kW
Type Cooking zone
Standard burner, Standard burner, Economy burner, High-speed burner, WOK burner
FlameSelect with 9 steps
Yes
Display
No

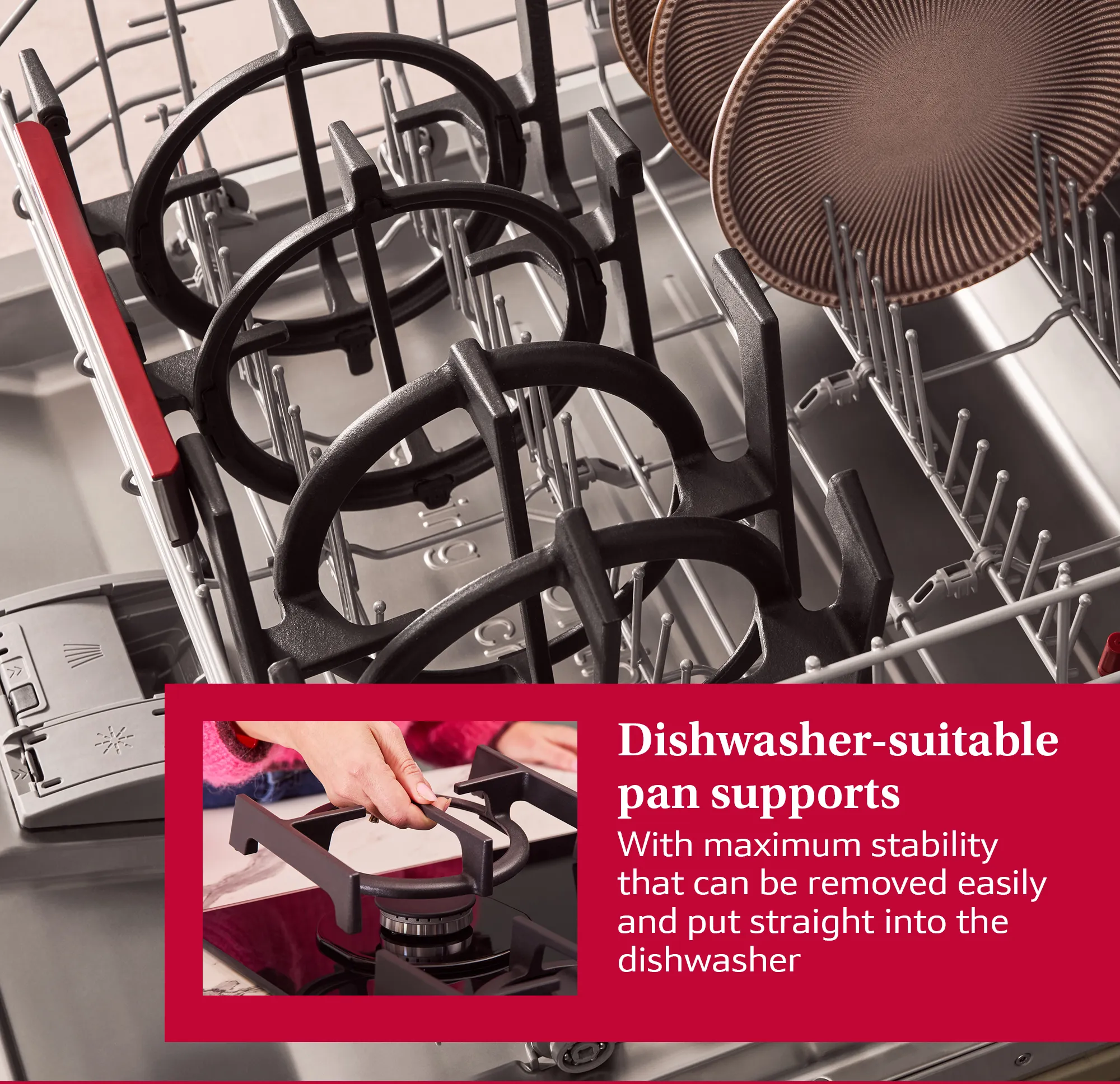

Dishwasher suitable pan support
Yes

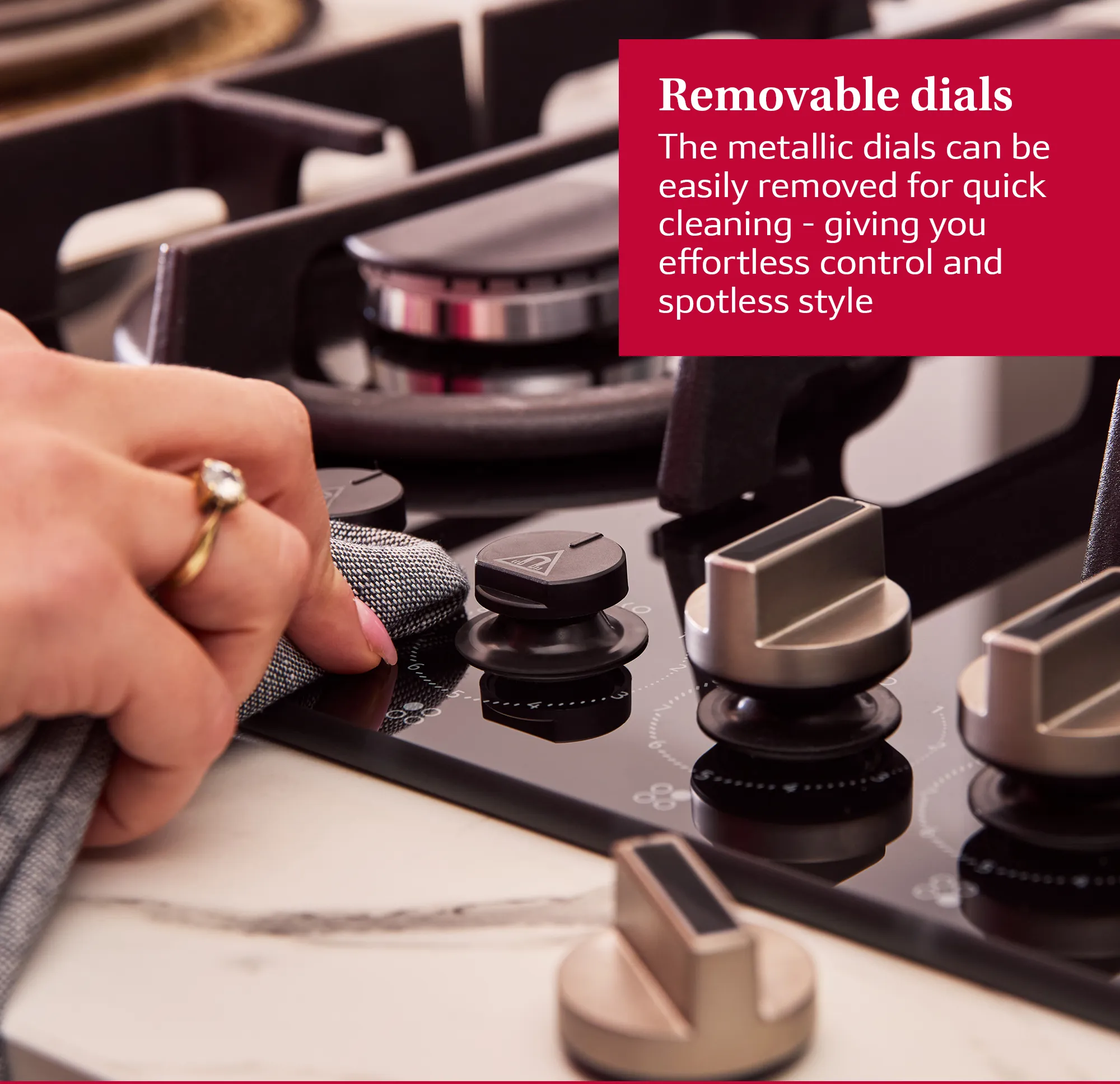

Removable knobs for easy cleaning
Yes
Location of control panel
Front
Type of control setting devices
Knob
Hob ignition
Knob ignition
One piece burner
No
Timer
N/A
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Control your hood with your Home Connect hob
No
Smart Hood Automatic
No
Updateable appliance (available with connected Home Connect account): keep appliance always up to date with latest status of software.
No

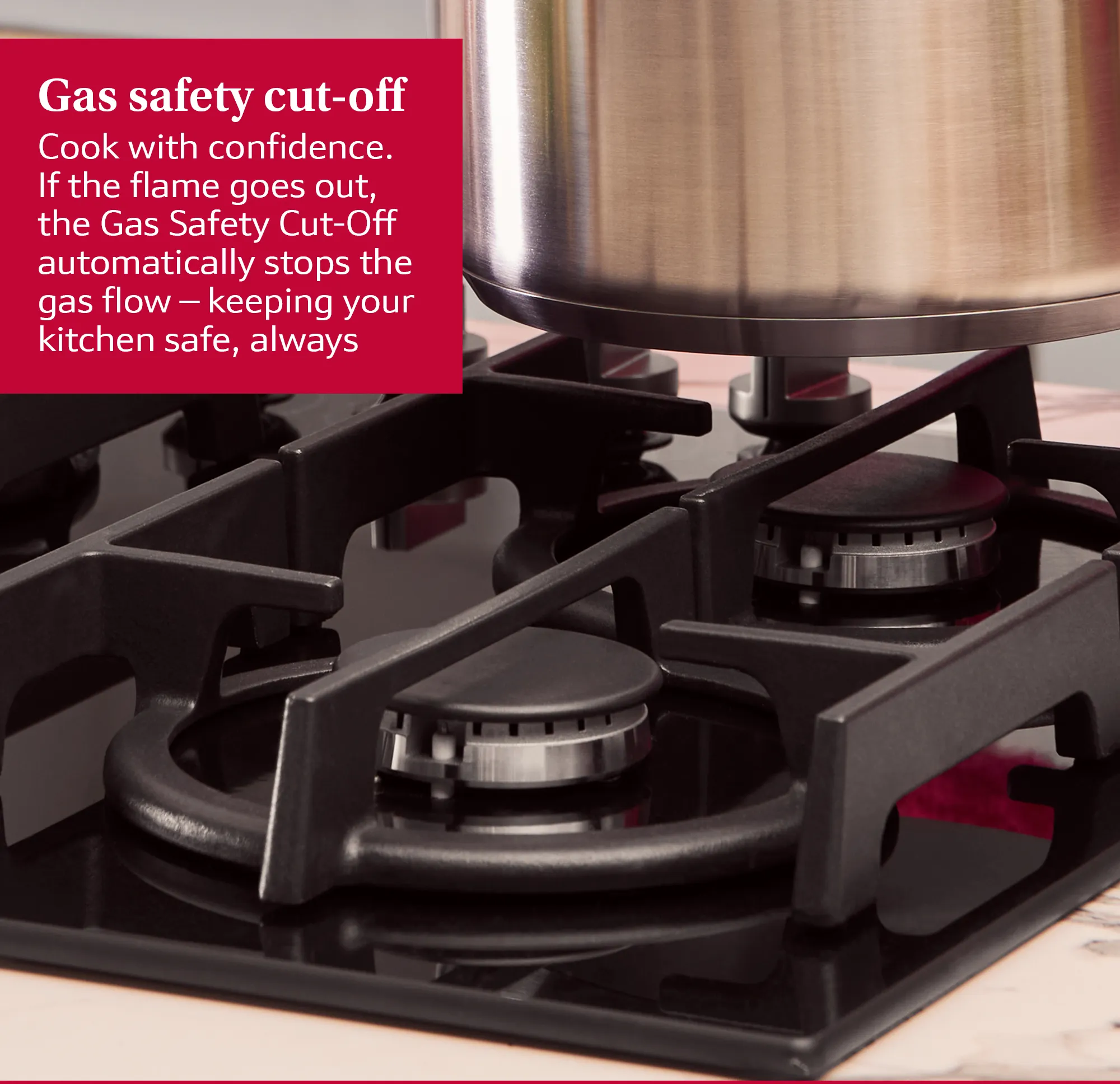

Safety device
Flame failure safety device for each burner
Residual heat indicator
Without
Main on/off switch
No
