Technical Overview
Cooktop type
Gas cooktop
Number of cooking zones
5
FlameSelect with 9 steps
No
Frame type
Design frame
Basic surface material
Ceramic
Material of pan supports
Cast iron with brass feet
Gas type preset
Nat gas H/E/(L) 20 (25) mbar
Nozzle set included for alternative gas type
Liquid gas G30,31 28-30/37mbar
Specifications
Basic surface material
Ceramic
Colour of appliance
Black
Frame type
Design frame
Flushmount
No
Material of pan supports
Cast iron with brass feet
Knob illumination
No
Knob Material
Plastic
Flat burner
Yes
Gas type preset
Nat gas H/E/(L) 20 (25) mbar
Nozzle set included for alternative gas type
Liquid gas G30,31 28-30/37mbar
Type of appliance width
90 cm
Dimensions
59x918x546 mm
Dimensions of the packed product (HxWxD)
170 x 1115 x 665 mm

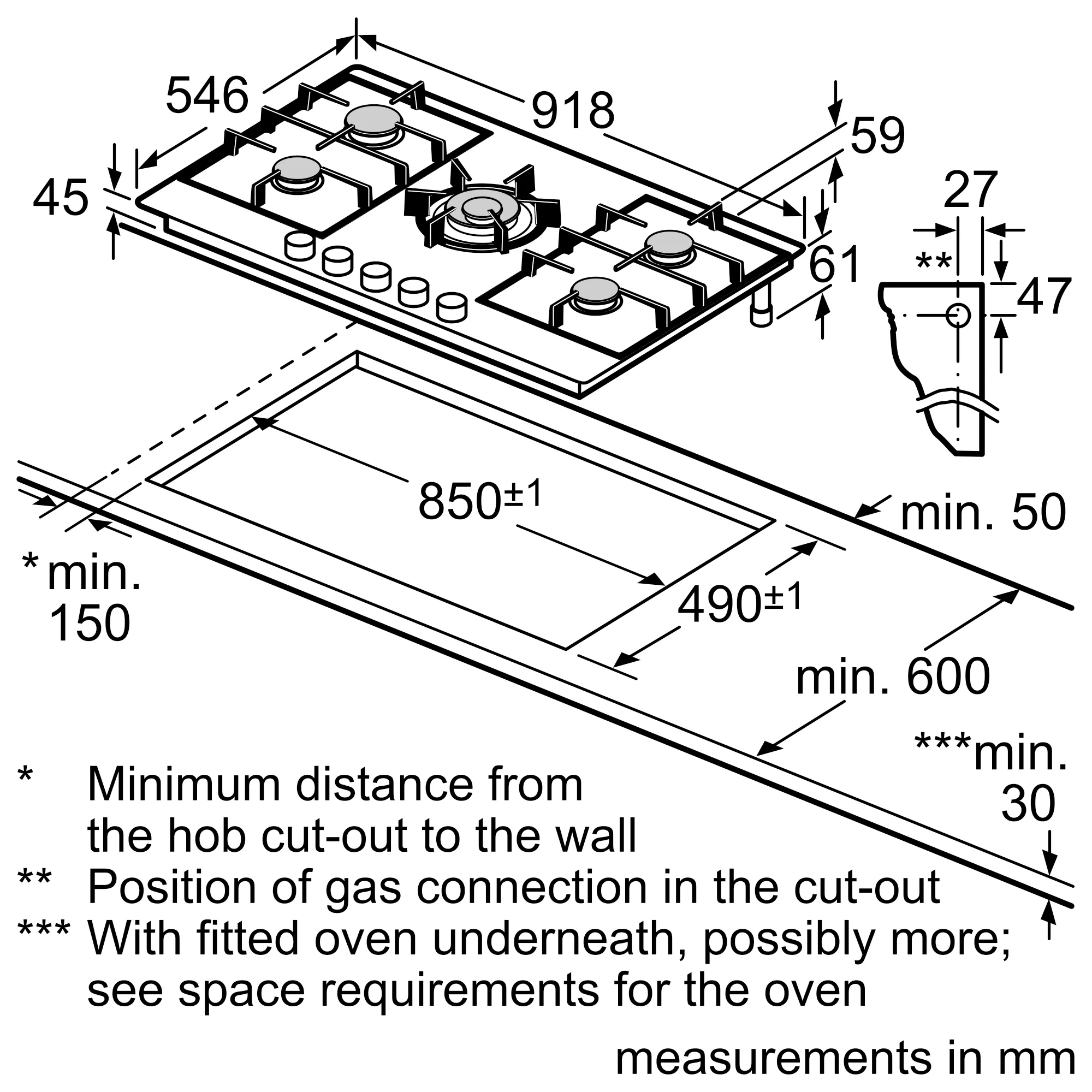

Required niche size for installation (HxWxD)
45 x 850-850 x 490-490 mm
Minimum worktop thickness (without spacer / with spacer, order seperately)
30 mm / 12 mm
Length electrical supply cord
150 cm
Plug type
no plug (electrical connection by electrician)
Gas connection rating
13700 W
Number of cooking zones
5
Dual wok burner
Yes
Power of the heating elements
1 x 1.1, 1 x 2.8, 1 x 6.0, 2 x 1.9 kW
Type Cooking zone
Standard burner, Standard burner, Economy burner, High-speed burner, WOK burner
FlameSelect with 9 steps
No
Display
No
Dishwasher suitable pan support
No
Removable knobs for easy cleaning
No
Location of control panel
Front
Type of control setting devices
Knob
Hob ignition
Knob ignition
One piece burner
No
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Control your hood with your Home Connect hob
No
Smart Hood Automatic
No
Updateable appliance (available with connected Home Connect account): keep appliance always up to date with latest status of software.
No
Safety device
Flame failure safety device for each burner
Residual heat indicator
Without
Main on/off switch
No
Included accessories
1 x wok attachment ring
