Technical Overview
Installation typology
Built-in
Type of appliance width
90 cm
Control your hood with your Home Connect hob
No
Sound pressure recirculated air level 2
46 dB(A) re 1 pW
climatecontrol sensor
No
Operating Mode
Convertible
Maximum output air extraction
450 m³/h
Boost position air extraction
710 m³/h
Specifications
Type of appliance width
90 cm
Color body
Stainless steel
Installation typology
Built-in
Operating Mode
Convertible
Total power of the motors
275 W
Type of control setting devices
7-segment display, touch control
Number of speed settings
3-stage + 2 intensive
Maximum output air extraction
450 m³/h
Boost position air extraction
710 m³/h
Sound power at max. speed (2010/30/EC)
61 dB
Sound power boost (2010/30/EC)
70 dB
Maximum output recirculating air
440 m³/h
Boost position output recirculating
680.0 m³/h
Sound power at max. speed (recirculation)
63 dB
Sound power boost (recirculation)
71 dB
Grease filter material
Washable aluminium
Energy efficiency rating
C
Total annual energy consumption
109.1 kWh/a

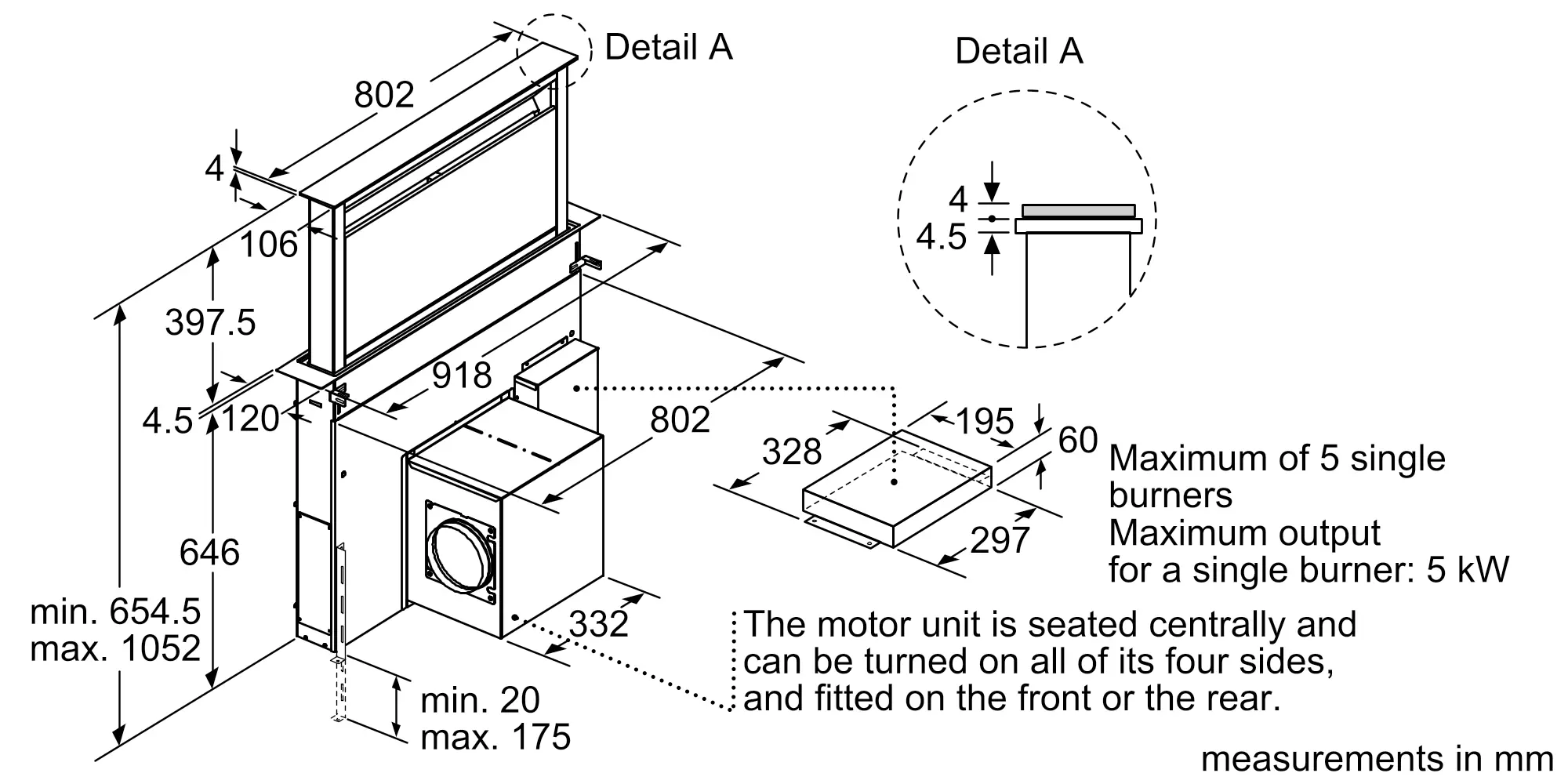

Height of the appliance
651 mm
Width of the appliance
918 mm
Depth
352 mm
Dimensions of the packed product (HxWxD)
630 x 860 x 1140 mm

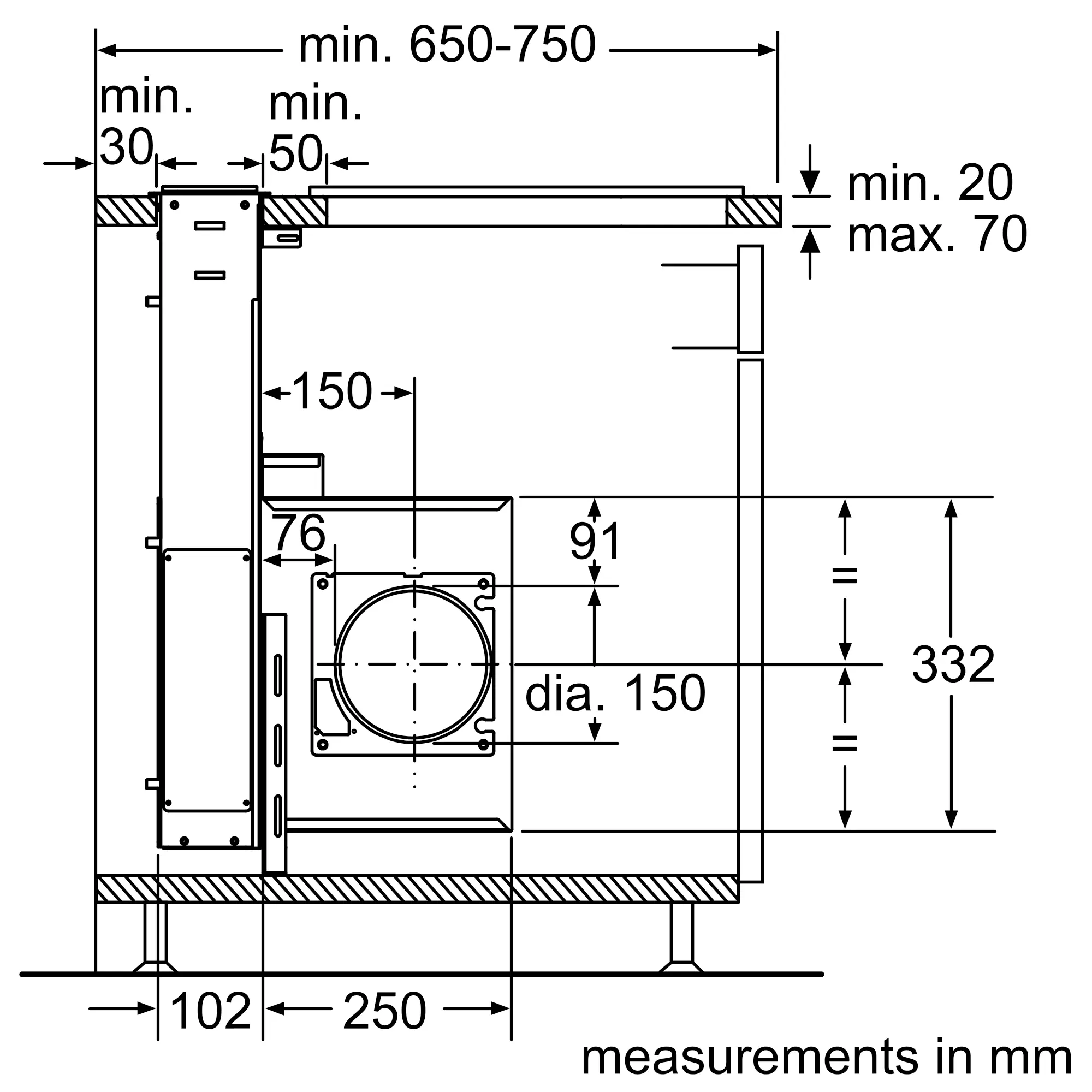

Diameter of air outlet
150 mm
No-return airflow flap
No
Length electrical supply cord
150 cm
Net weight
35.1 kg
Handle bar
N/A
Appliance height exhaust air max
1052 mm
Appliance height exhaust air min
651 mm
Appliance height recirculating max
1052 mm
Appliance height recirculating min
651 mm

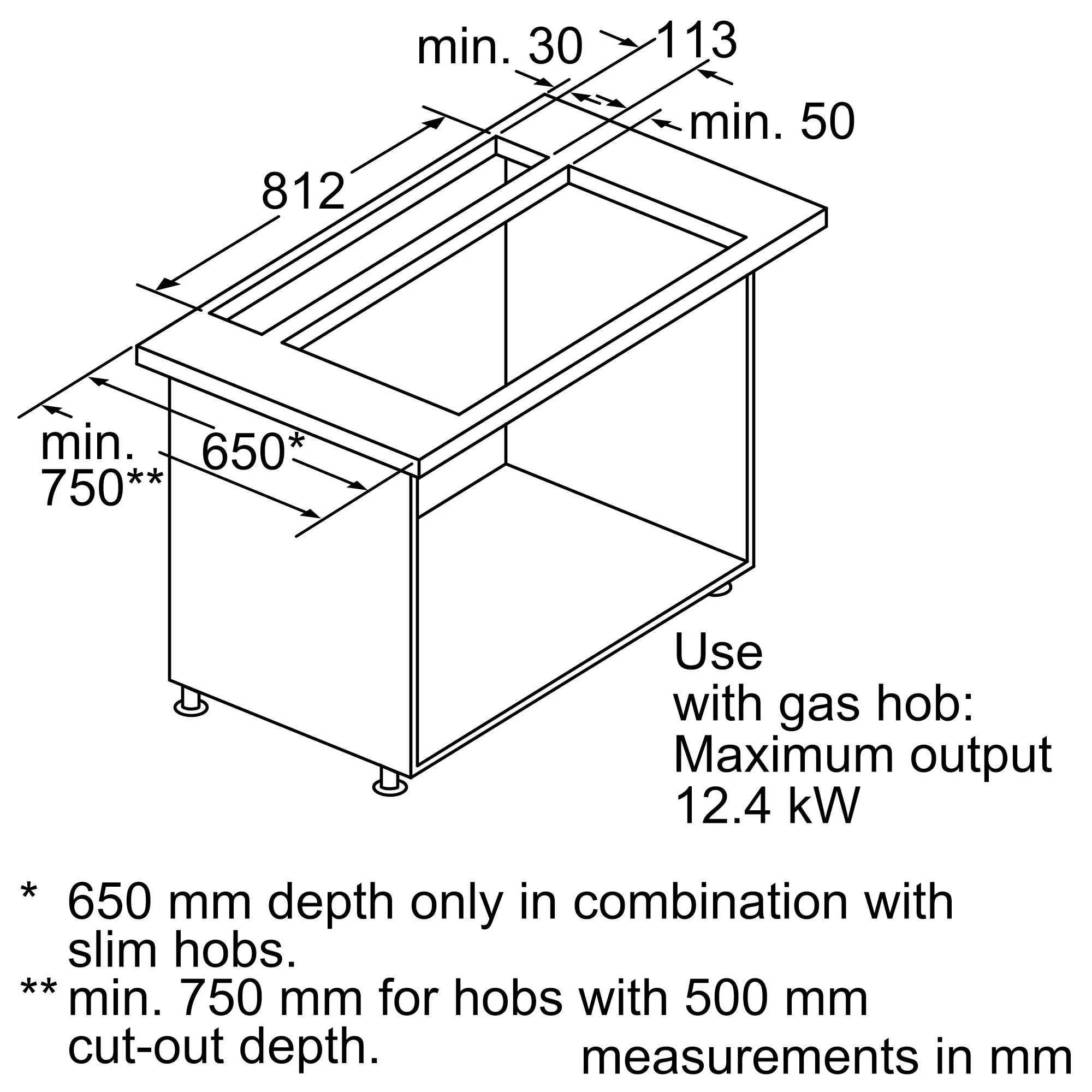

Maximum width for installation
812 mm
Minimum width for installation
812 mm
Depth for installation
113 mm
1 / 0
climatecontrol sensor
No
SilentPowerDrive
No
Silence
No
Clean filter reminders
Yes
Boost position
Yes
Delay Shut off modes
Yes
Remote control
No
Number of lights
1
Total power of the lamps
10 W
Total luminance
200 lux
Colour temperature
Cold white (4.000 K)
Illumination type softlight
Yes
Color temperature control via smartphone with Home Connect
No
emotionLight Pro
No
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Control your hood with your Home Connect hob
No
Smart Hood Automatic
No
