Technical Overview
Installation typology
Built-in
Type of appliance width
11 cm
Control your hood with your Home Connect hob
No
Sound pressure recirculated air level 2
54 dB(A) re 1 pW
climatecontrol sensor
No
Operating Mode
Convertible
Maximum output air extraction
540 m³/h
Boost position air extraction
600 m³/h
Specifications
Type of appliance width
11 cm
Color body
Stainless steel
Installation typology
Built-in
Operating Mode
Convertible
Total power of the motors
145 W
Type of control setting devices
7-segment display, touch control
Number of speed settings
3-stages + intensive setting
Maximum output air extraction
540 m³/h
Boost position air extraction
600 m³/h
Sound power at max. speed (2010/30/EC)
67 dB
Sound power boost (2010/30/EC)
70 dB
Maximum output recirculating air
430 m³/h
Boost position output recirculating
480.0 m³/h
Sound power at max. speed (recirculation)
71 dB
Sound power boost (recirculation)
73 dB

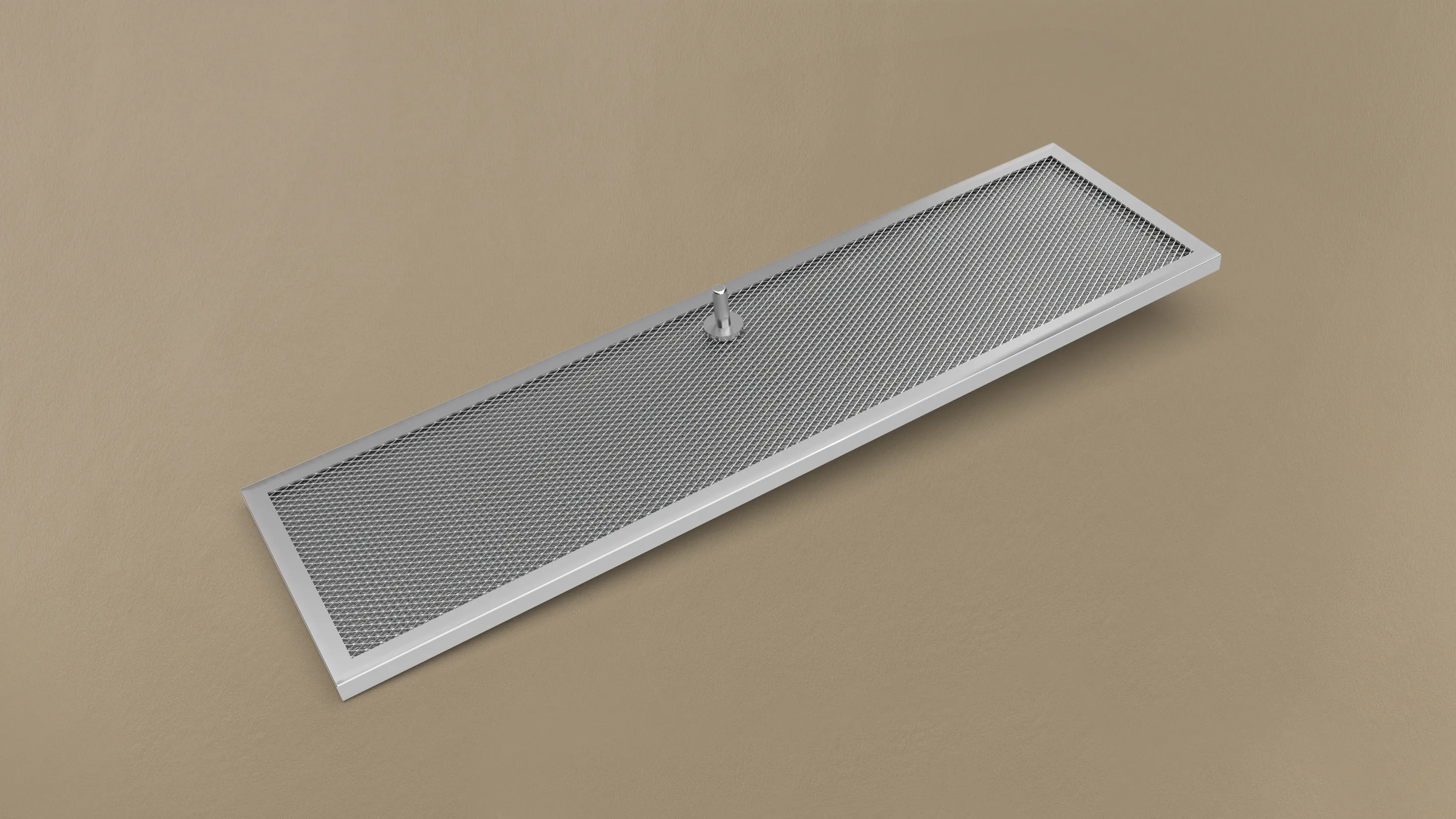

Grease filter material
Washable stainless steel
Energy efficiency rating
A+
Total annual energy consumption
37.4 kWh/a
Height of the appliance
900 mm
Width of the appliance
110 mm
Depth
546 mm
Dimensions of the packed product (HxWxD)
540 x 750 x 730 mm
Diameter of air outlet
150 mm
No-return airflow flap
No
Length electrical supply cord
130 cm
Net weight
14.0 kg
Handle bar
N/A
Appliance height exhaust air max
1050 mm
Appliance height exhaust air min
900 mm
Appliance height recirculating max
1050 mm
Appliance height recirculating min
900 mm
Maximum width for installation
551 mm
Minimum width for installation
551 mm
Depth for installation
500 mm
climatecontrol sensor
No
SilentPowerDrive
Yes
Silence
No
Clean filter reminders
Yes
Boost position
Yes
Delay Shut off modes
Yes
Remote control
No
Illumination type softlight
No
Color temperature control via smartphone with Home Connect
No
emotionLight Pro
No
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Control your hood with your Home Connect hob
No
Smart Hood Automatic
No
