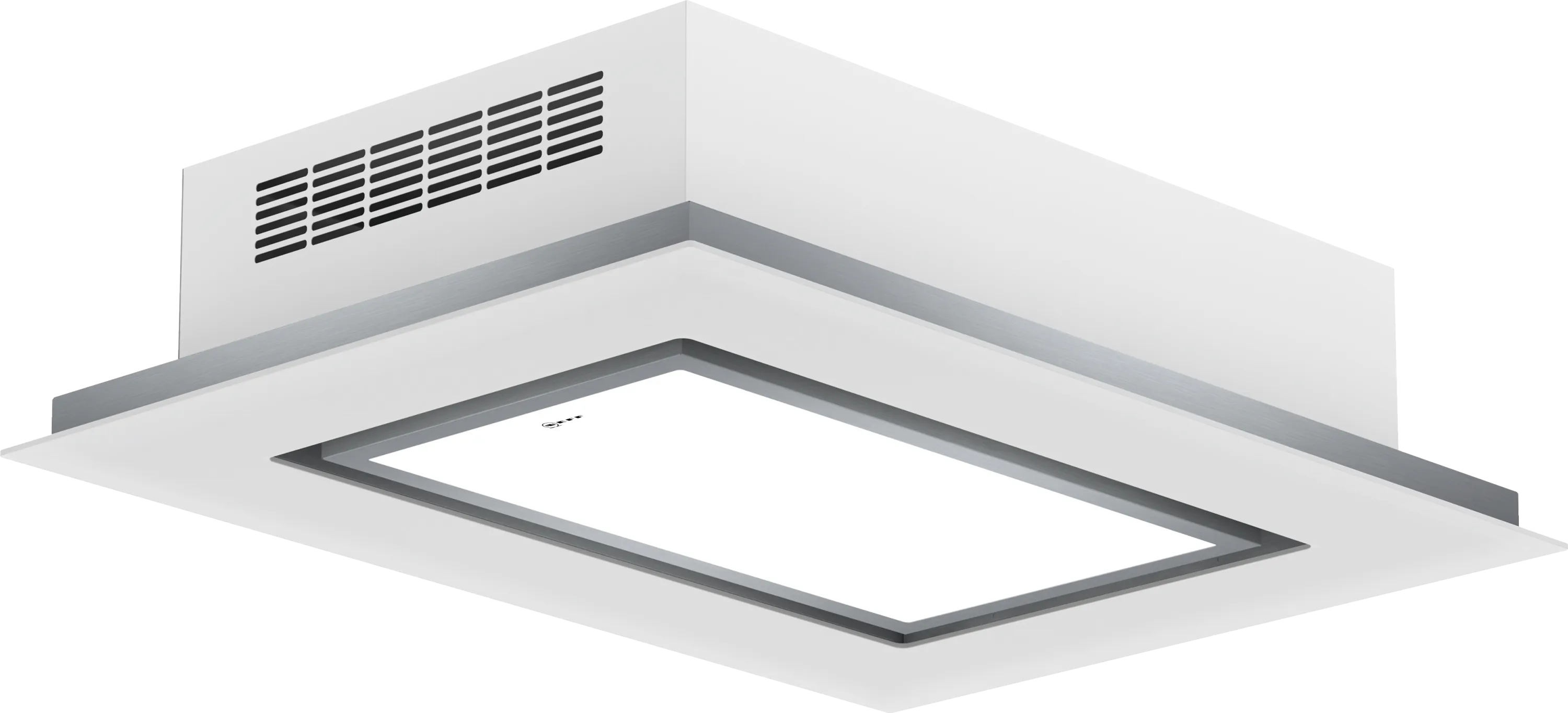

Photo Nr. 1 of the product I90CN48W0
Photo Nr. 2 of the product I90CN48W0
Photo Nr. 3 of the product I90CN48W0

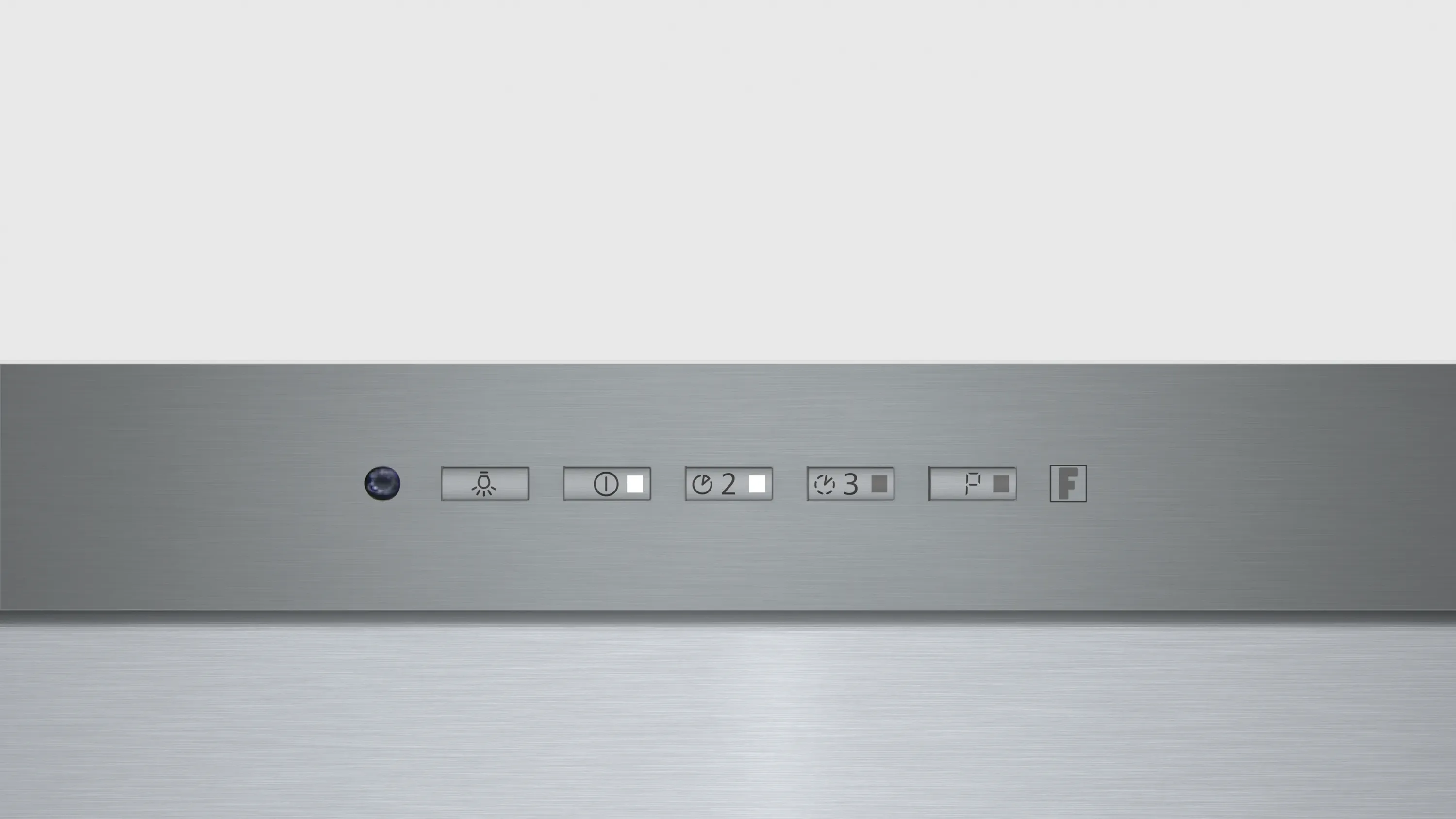

Photo Nr. 4 of the product I90CN48W0
Photo Nr. 5 of the product I90CN48W0
Photo Nr. 6 of the product I90CN48W0
Photo Nr. 7 of the product I90CN48W0
Photo Nr. 8 of the product I90CN48W0
I90CN48W0

Product is no longer available

More information and services related to this product

I90CN48W0

Product is no longer available

More information and services related to this product

Technical Overview

Installation typology
Built-in
Type of appliance width
100 cm
Control your hood with your Home Connect hob
No
Sound pressure recirculated air level 2
50 dB(A) re 1 pW
climatecontrol sensor
No
Operating Mode
Recirculating air only

Highlights

Specifications

Type of appliance width
100 cm
Color body
White
Installation typology
Built-in
Operating Mode
Recirculating air only
Total power of the motors
180 W
Type of control setting devices
LED, Low-lift pushbuttons
Number of speed settings
3-stages + intensive setting
Maximum output recirculating air
780 m³/h
Boost position output recirculating
850.0 m³/h
Sound power at max. speed (recirculation)
70 dB
Sound power boost (recirculation)
72 dB
Grease filter material
Washable aluminium
Energy efficiency rating
N/A
Total annual energy consumption
71.8 kWh/a
Width of the appliance
1000 mm
Depth
700 mm
Dimensions of the packed product (HxWxD)
420 x 1450 x 940 mm

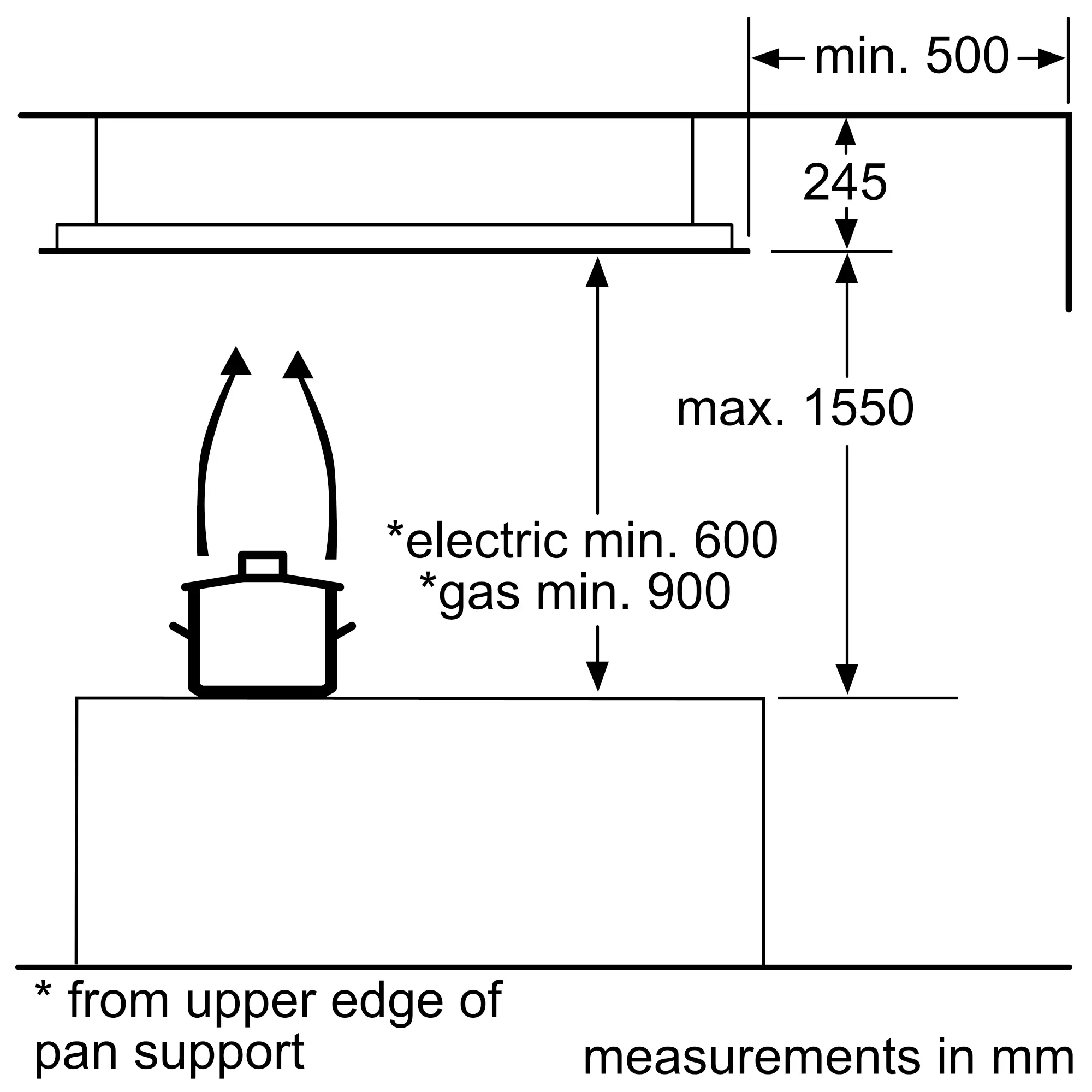

Minimum distance above an electric hob
600 mm
Minimum distance above a gas hob
900 mm
Diameter of air outlet
150 mm
No-return airflow flap
No
Length electrical supply cord
0.0 cm
Net weight
45.3 kg
Handle bar
Not applicable
Appliance height recirculating max
245 mm
Appliance height recirculating min
245 mm
1 / 0
Photo Nr. 1 of the product
Photo Nr. 2 of the product
climatecontrol sensor
No
SilentPowerDrive
No
Silence
No
Clean filter reminders
Yes
Boost position
Yes
Delay Shut off modes
Yes
Remote control
Yes
Type of lamps used
LED
Number of lights
1
Total power of the lamps
20 W
Total luminance
300 lm
Colour temperature
Cold white (4.000 K)
Illumination type softlight
No
Color temperature control via smartphone with Home Connect
No
emotionLight Pro
No
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Control your hood with your Home Connect hob
No
Smart Hood Automatic
No
