Technical Overview
Installation typology
Island
Type of appliance width
90 cm
Control your hood with your Home Connect hob
No
Sound pressure recirculated air level 2
51 dB(A) re 1 pW
climatecontrol sensor
No
Operating Mode
Convertible
Maximum output air extraction
460 m³/h
Boost position air extraction
870 m³/h
Highlights
Specifications
Type of appliance width
90 cm
Color body
Stainless steel
Installation typology
Island
Operating Mode
Convertible
Total power of the motors
160 W
Type of control setting devices
7-segment display, touch control
Number of speed settings
3-stage + 2 intensive
Maximum output air extraction
460 m³/h
Boost position air extraction
870 m³/h
Sound power at max. speed (2010/30/EC)
54 dB
Sound power boost (2010/30/EC)
69 dB
Maximum output recirculating air
340 m³/h
Boost position output recirculating
430.0 m³/h
Sound power at max. speed (recirculation)
69 dB
Sound power boost (recirculation)
73 dB
Grease filter material
Washable stainless steel
Energy efficiency rating
A+
Total annual energy consumption
32.5 kWh/a
Height of the appliance
46 mm
Width of the appliance
900 mm
Depth
600 mm
Dimensions of the packed product (HxWxD)
835 x 610 x 1035 mm
Height of the chimney
698-878/698-998 mm
Minimum distance above an electric hob
550 mm
Minimum distance above a gas hob
650 mm

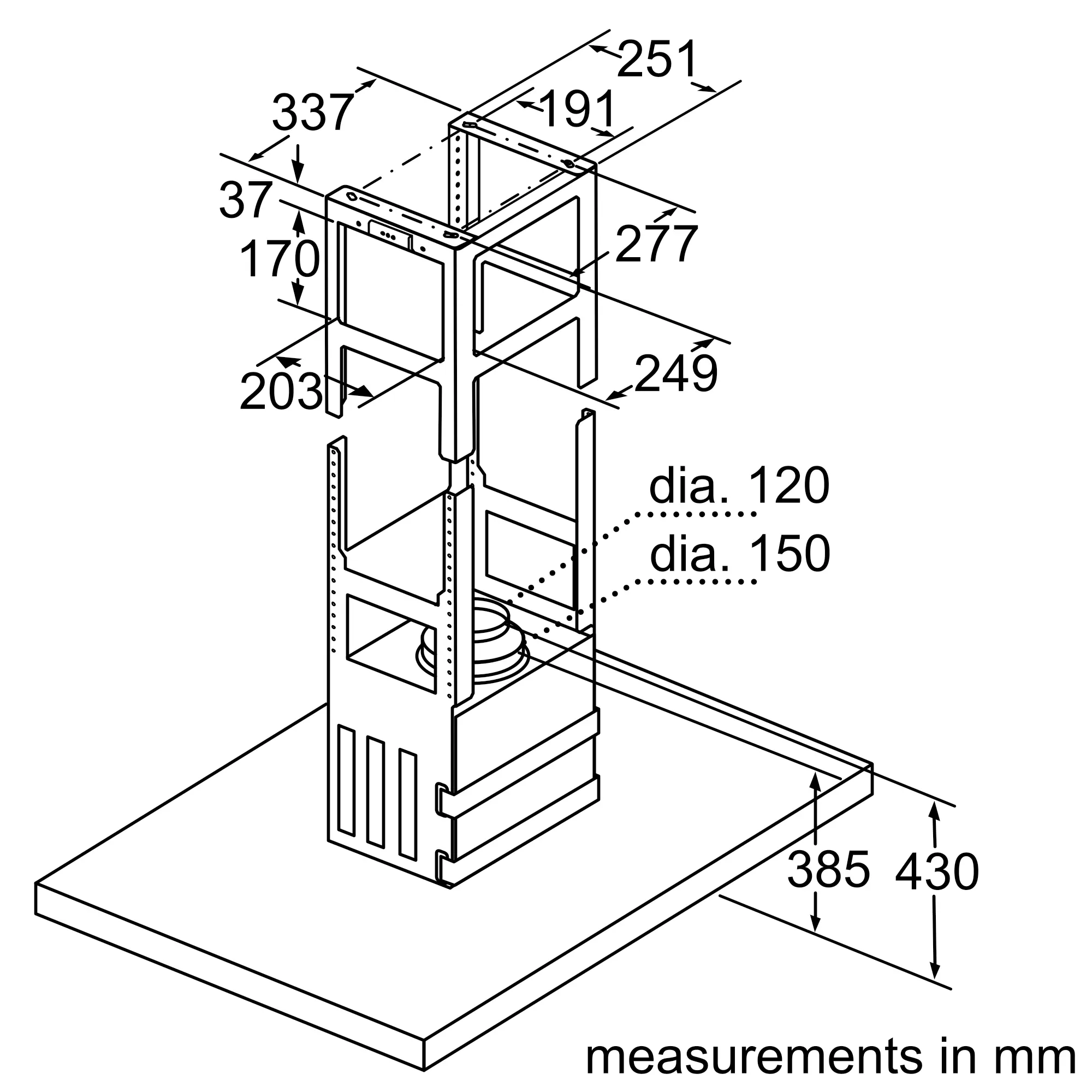

Diameter of air outlet
150 / 120 mm
No-return airflow flap
No
Length electrical supply cord
130 cm
Net weight
36.7 kg
Handle bar
N/A

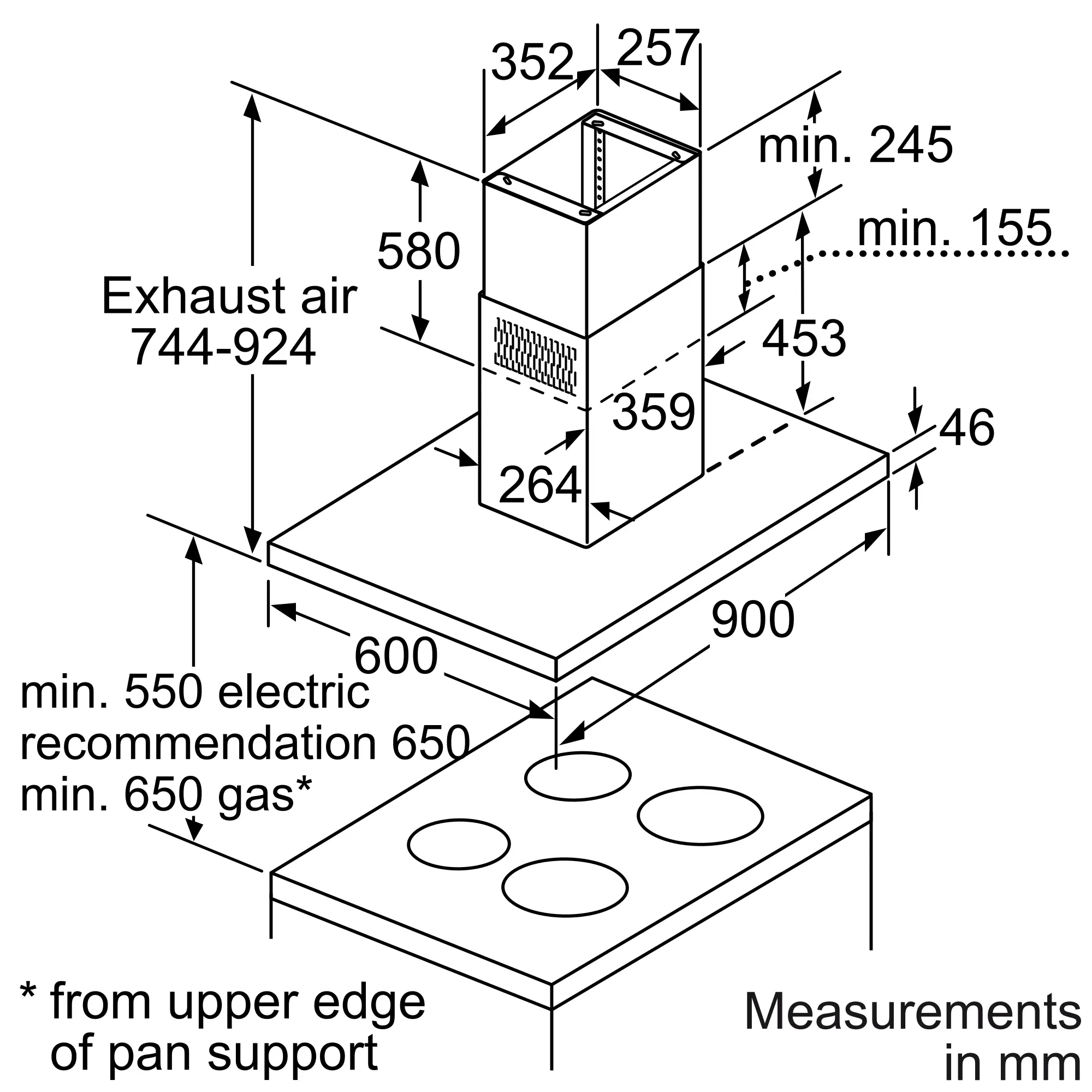

Appliance height exhaust air max
924 mm
Appliance height exhaust air min
744 mm

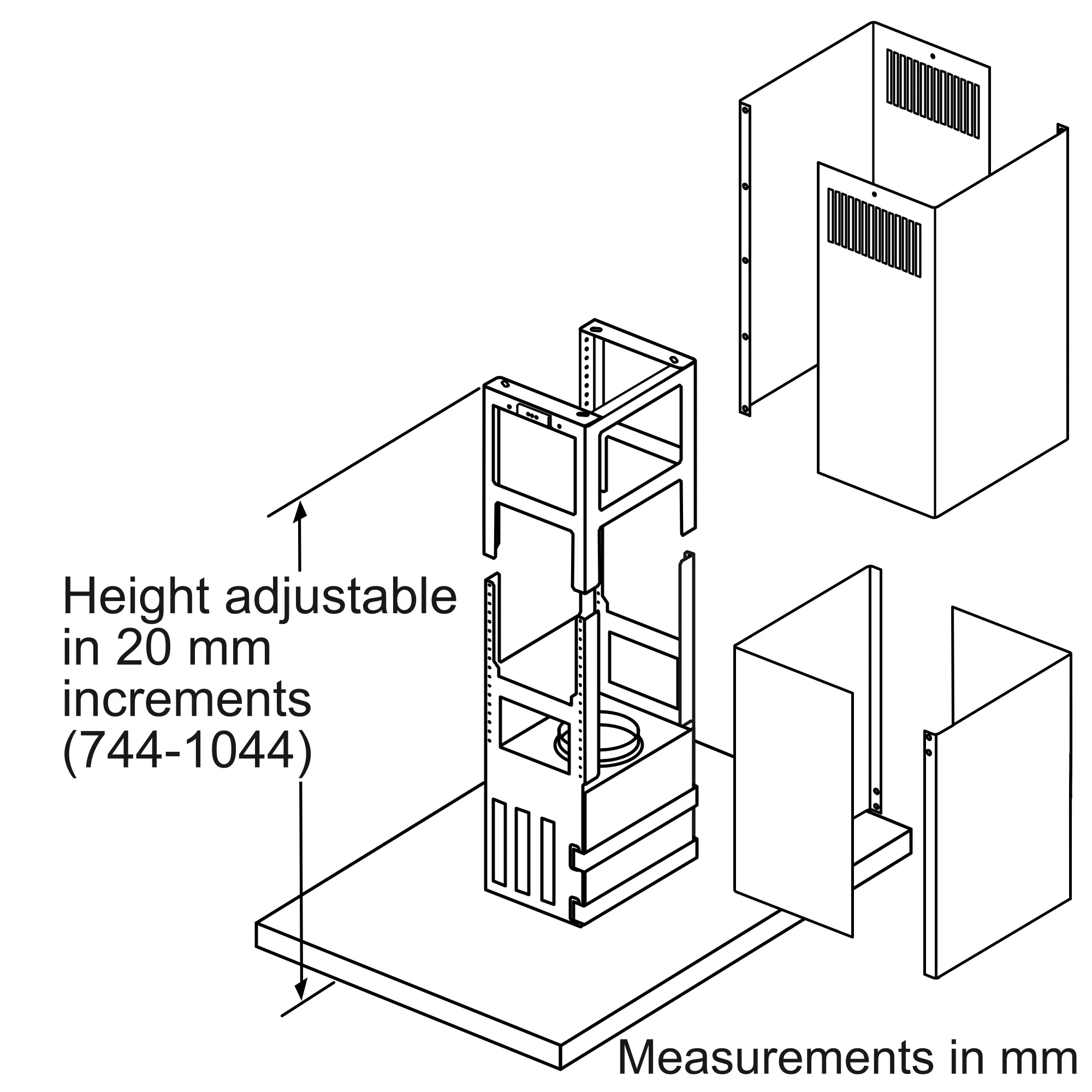

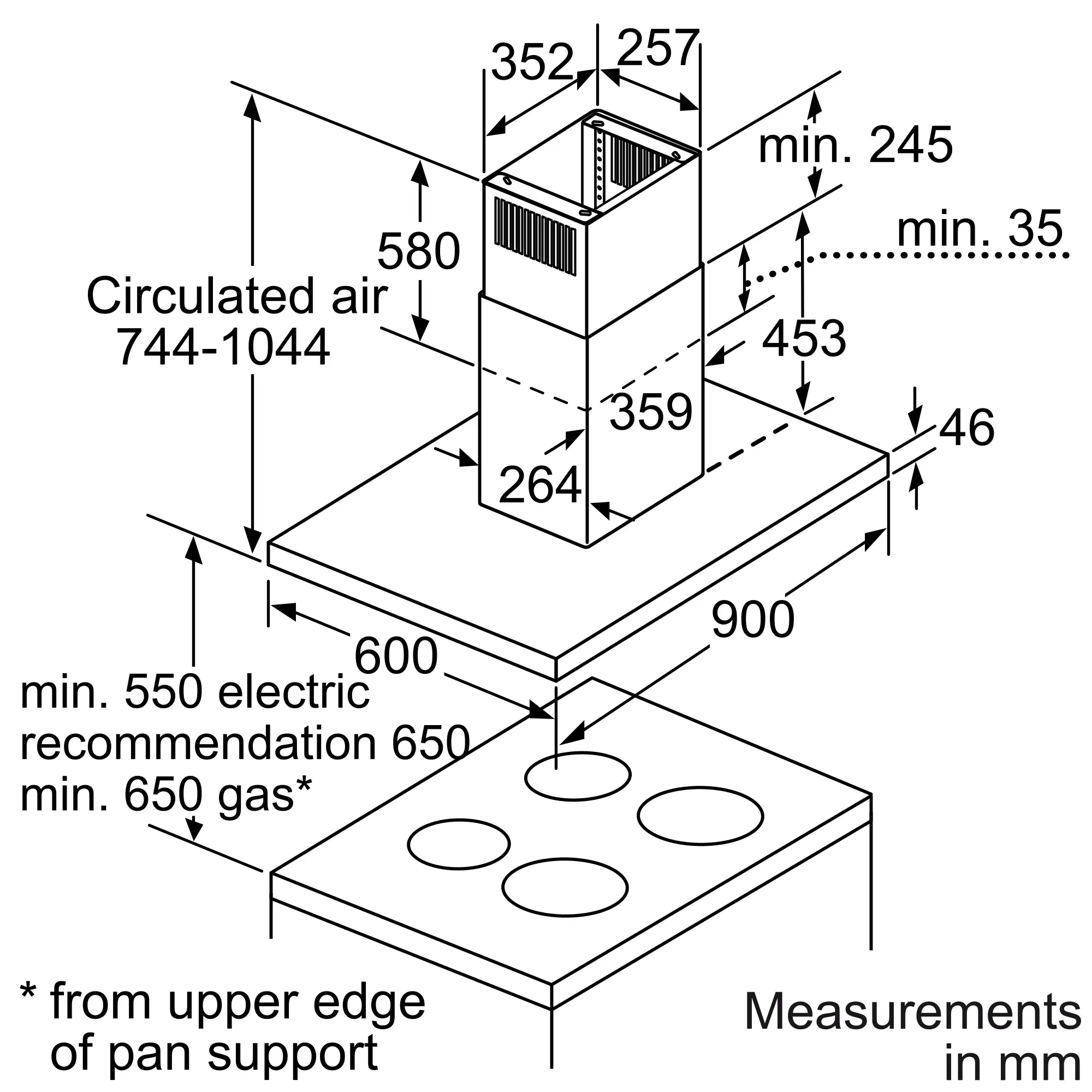

Appliance height recirculating max
1044 mm
Appliance height recirculating min
744 mm
1 / 0
climatecontrol sensor
No
SilentPowerDrive
Yes
Silence
Yes
Clean filter reminders
Yes
Boost position
Yes
Delay Shut off modes
Yes
Remote control
No

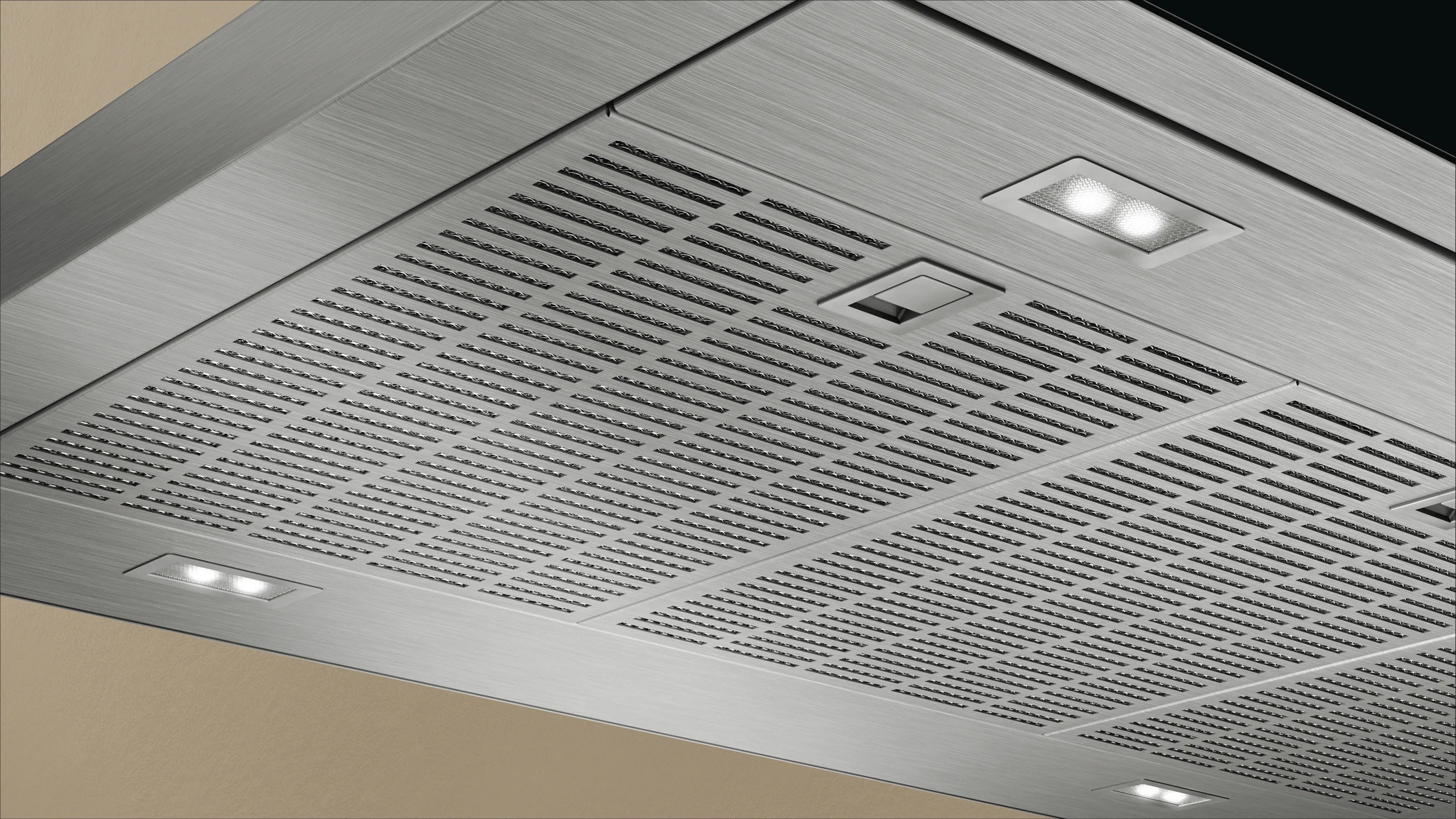

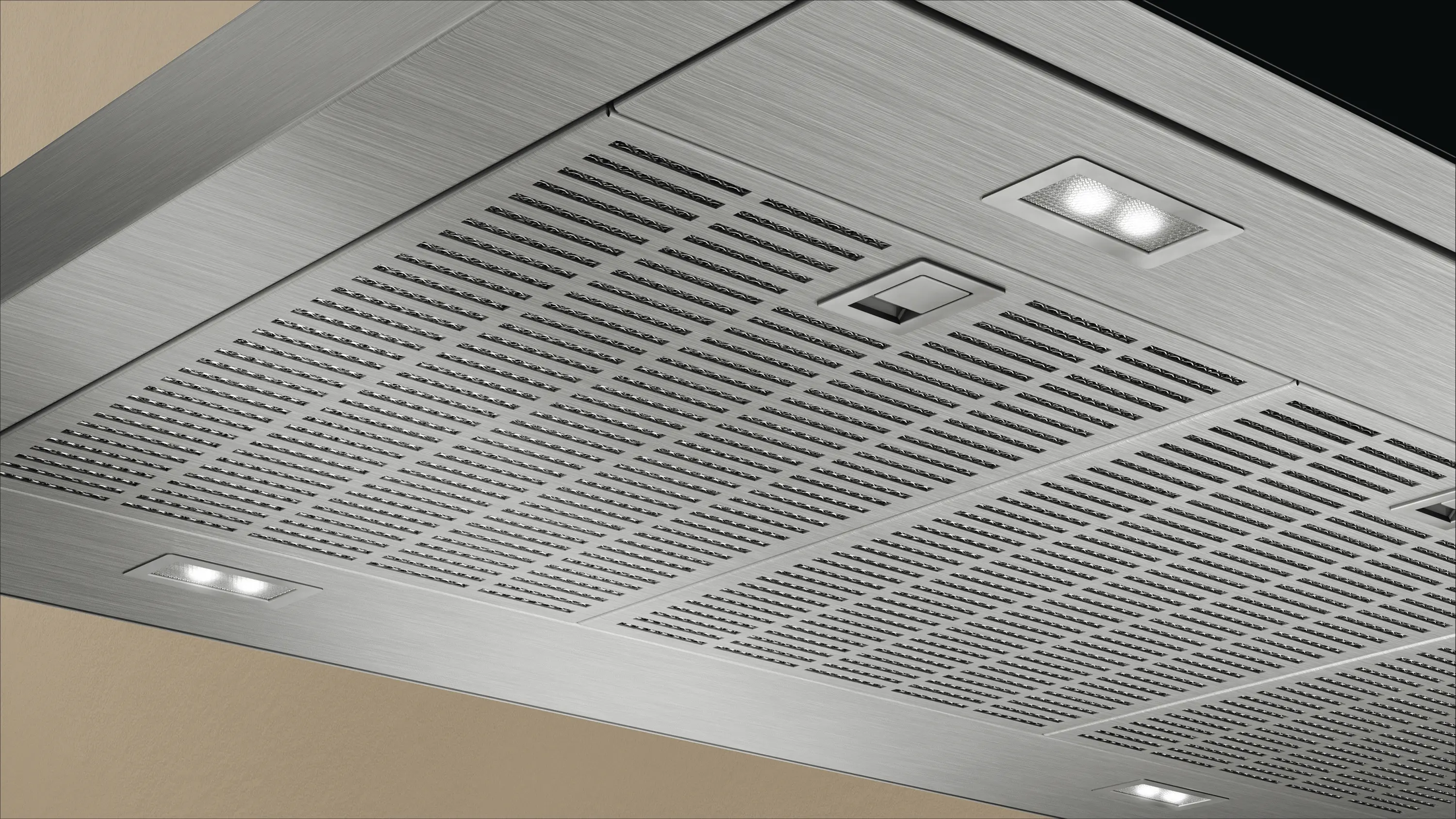

Type of lamps used
LED
Number of lights
4
Total power of the lamps
12 W
Total luminance
888 lux
Colour temperature
Neutral (3.500 K)
Illumination type softlight
Yes
Color temperature control via smartphone with Home Connect
No
emotionLight Pro
No
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Control your hood with your Home Connect hob
No
Smart Hood Automatic
No
