Technical Overview
Installation typology
Wall-mounted
Type of appliance width
90 cm
Control your hood with your Home Connect hob
Yes
climatecontrol sensor
Yes
Operating Mode
Convertible
Maximum output air extraction
468 m³/h
Boost position air extraction
837 m³/h
Specifications
Type of appliance width
90 cm
Color body
Black
Installation typology
Wall-mounted
Operating Mode
Convertible
Total power of the motors
160 W
Type of control setting devices
Via app
Number of speed settings
3-stage + 2 intensive
Maximum output air extraction
468 m³/h
Boost position air extraction
837 m³/h
Sound power at max. speed (2010/30/EC)
55 dB
Sound power boost (2010/30/EC)
67 dB
Maximum output recirculating air
459 m³/h
Boost position output recirculating
703.0 m³/h
Sound power at max. speed (recirculation)
65 dB
Sound power boost (recirculation)
77 dB
Grease filter material
Washable aluminium
Energy efficiency rating
A+
Total annual energy consumption
31.5 kWh/a
Included user manuals
[EN]

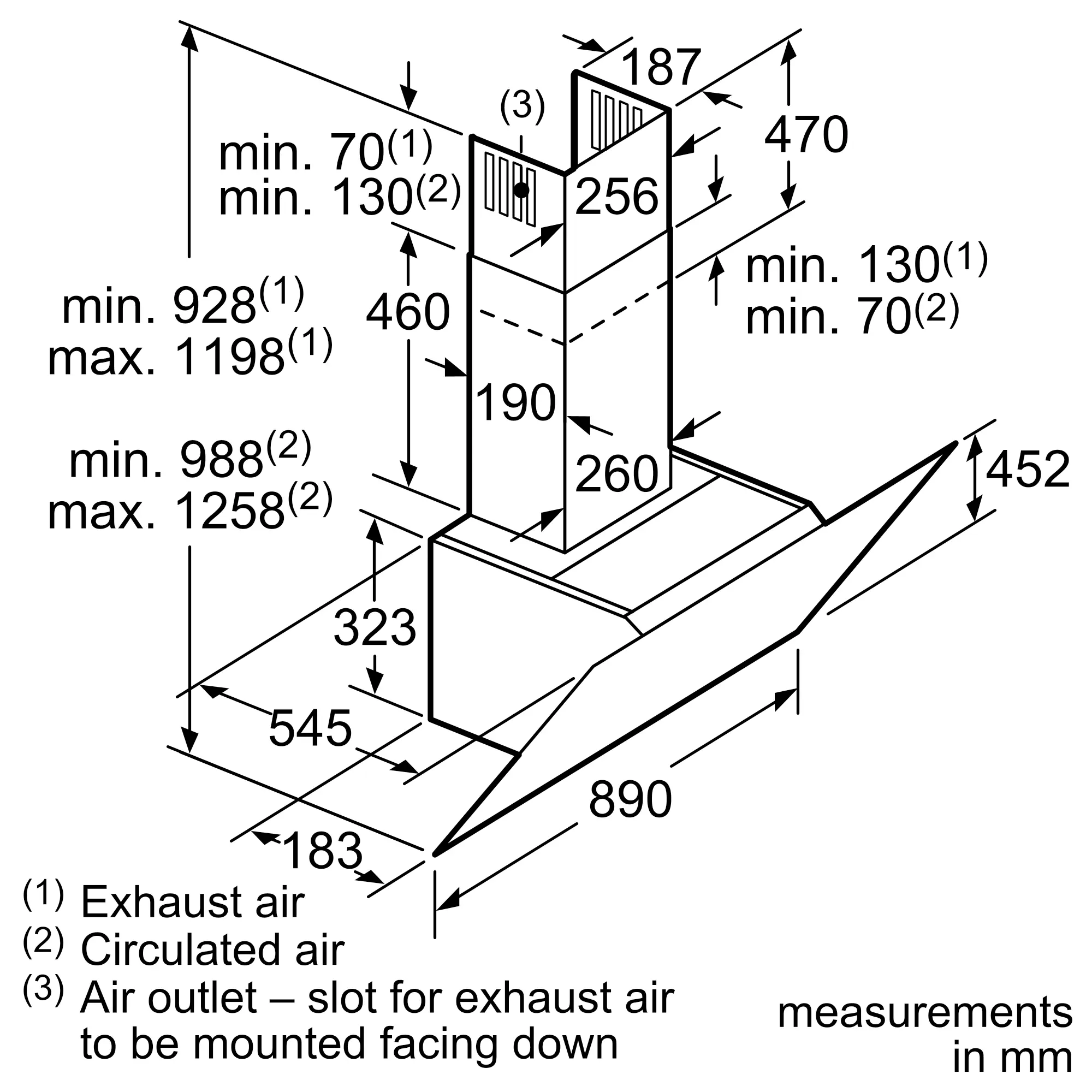

Height of the appliance
323 mm
Width of the appliance
890 mm
Depth
545 mm
Dimensions of the packed product (HxWxD)
690x740x1040 mm
Minimum distance above an electric hob
450 mm
Minimum distance above a gas hob
650 mm
Diameter of air outlet
120 / 150 mm
No-return airflow flap
No
Length electrical supply cord
130 cm
Net weight
25.8 kg
Handle bar
N/A
Appliance height exhaust air max
1198 mm
Appliance height exhaust air min
928 mm
Appliance height recirculating max
1258 mm
Appliance height recirculating min
988 mm
1 / 0
climatecontrol sensor
Yes
SilentPowerDrive
Yes
Silence
Yes
Clean filter reminders
Yes
Boost position
Yes
Delay Shut off modes
Yes
Remote control
No
Type of lamps used
LED
Number of lights
2
Total luminance
519 lux
Colour temperature
Neutral (3.500 K)
Illumination type softlight
Yes
Color temperature control via smartphone with Home Connect
No
emotionLight Pro
Yes
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
Yes
Home Connect Features
Remote Monitoring and Control
Control your hood with your Home Connect hob
Yes
Smart Hood Automatic
No
