Technical Overview
Installation typology
Wall-mounted
Type of appliance width
90 cm
Control your hood with your Home Connect hob
No
climatecontrol sensor
No
Operating Mode
Convertible
Maximum output air extraction
394 m³/h
Boost position air extraction
717 m³/h
Highlights
Specifications
Type of appliance width
90 cm
Color body
Black
Installation typology
Wall-mounted
Operating Mode
Convertible
Total power of the motors
140 W

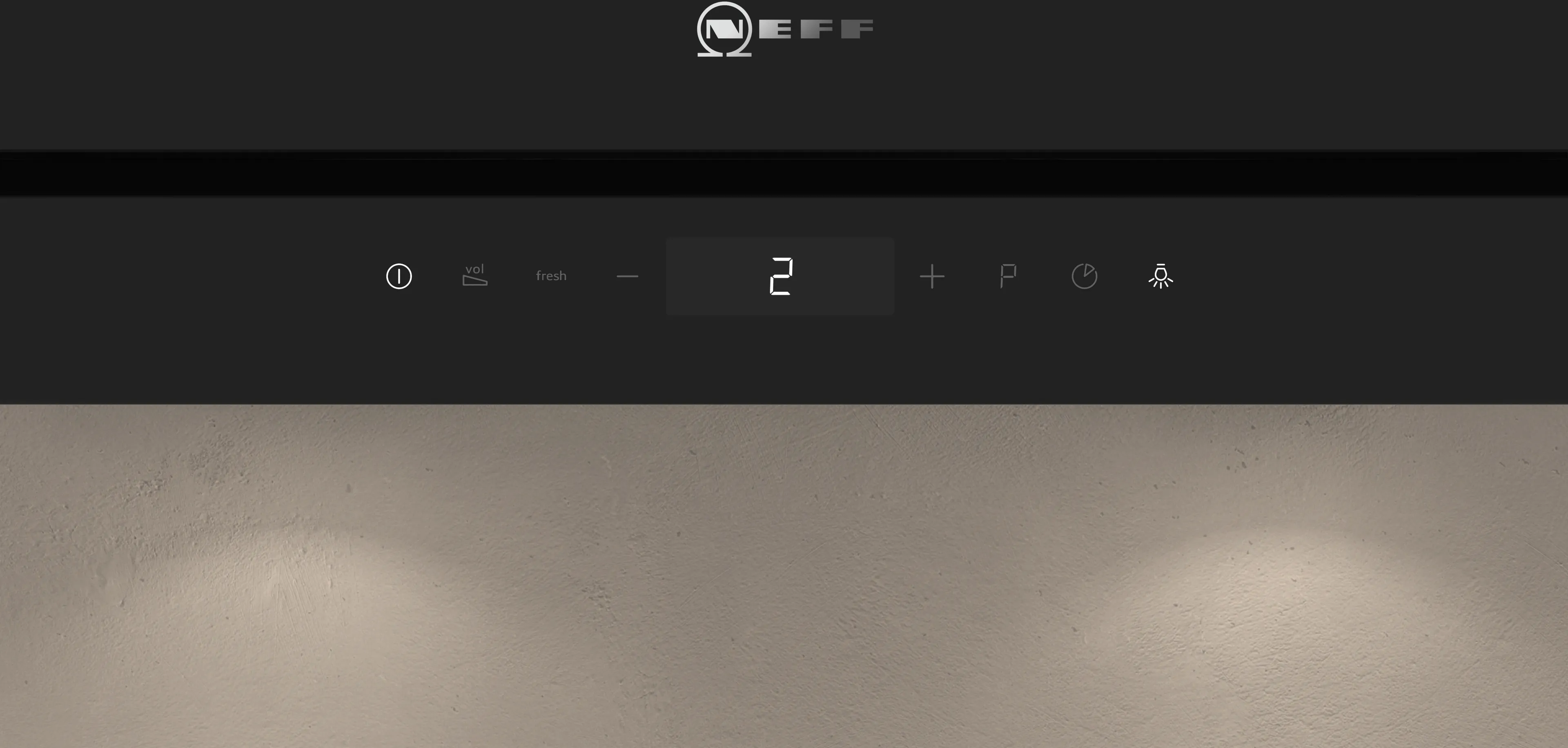

Type of control setting devices
LED, touch control
Number of speed settings
3-stage + 2 intensive
Maximum output air extraction
394 m³/h
Boost position air extraction
717 m³/h
Sound power at max. speed (2010/30/EC)
57 dB
Sound power boost (2010/30/EC)
70 dB

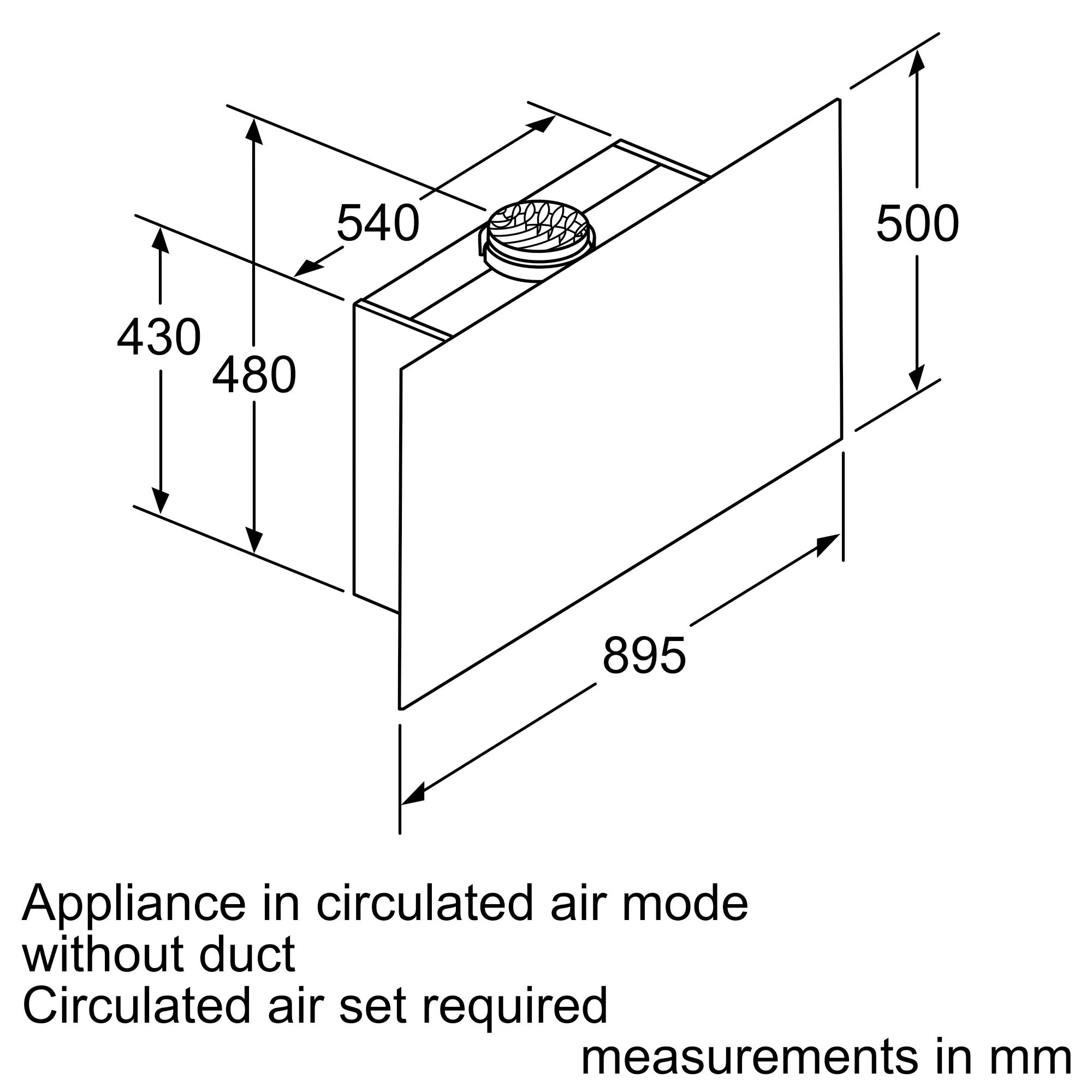

Maximum output recirculating air
311 m³/h
Boost position output recirculating
578.0 m³/h
Sound power at max. speed (recirculation)
60 dB
Sound power boost (recirculation)
74 dB

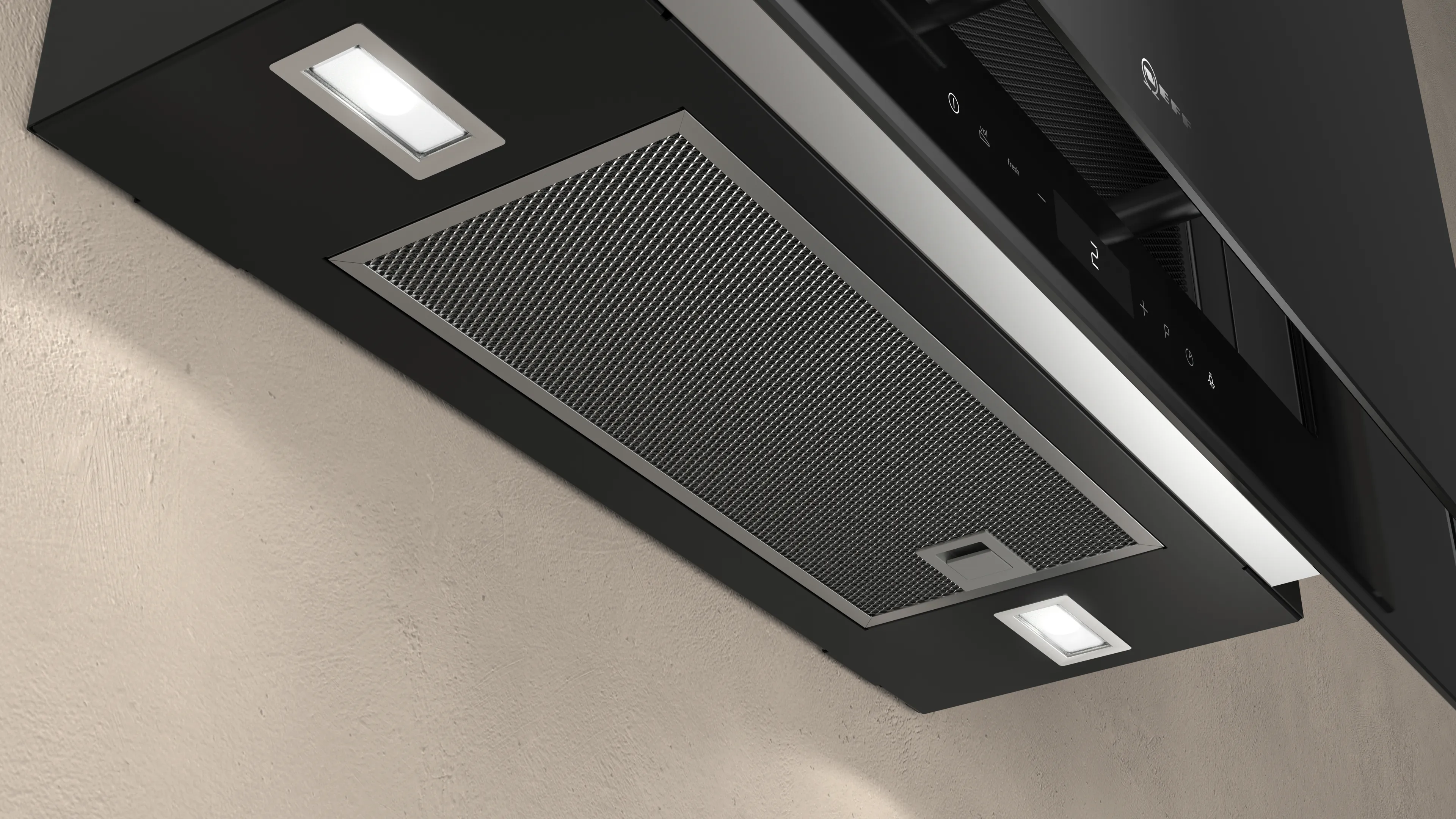

Grease filter material
Washable aluminium
Energy efficiency rating
A
Total annual energy consumption
37.8 kWh/a
Height of the appliance
430 mm
Width of the appliance
895 mm

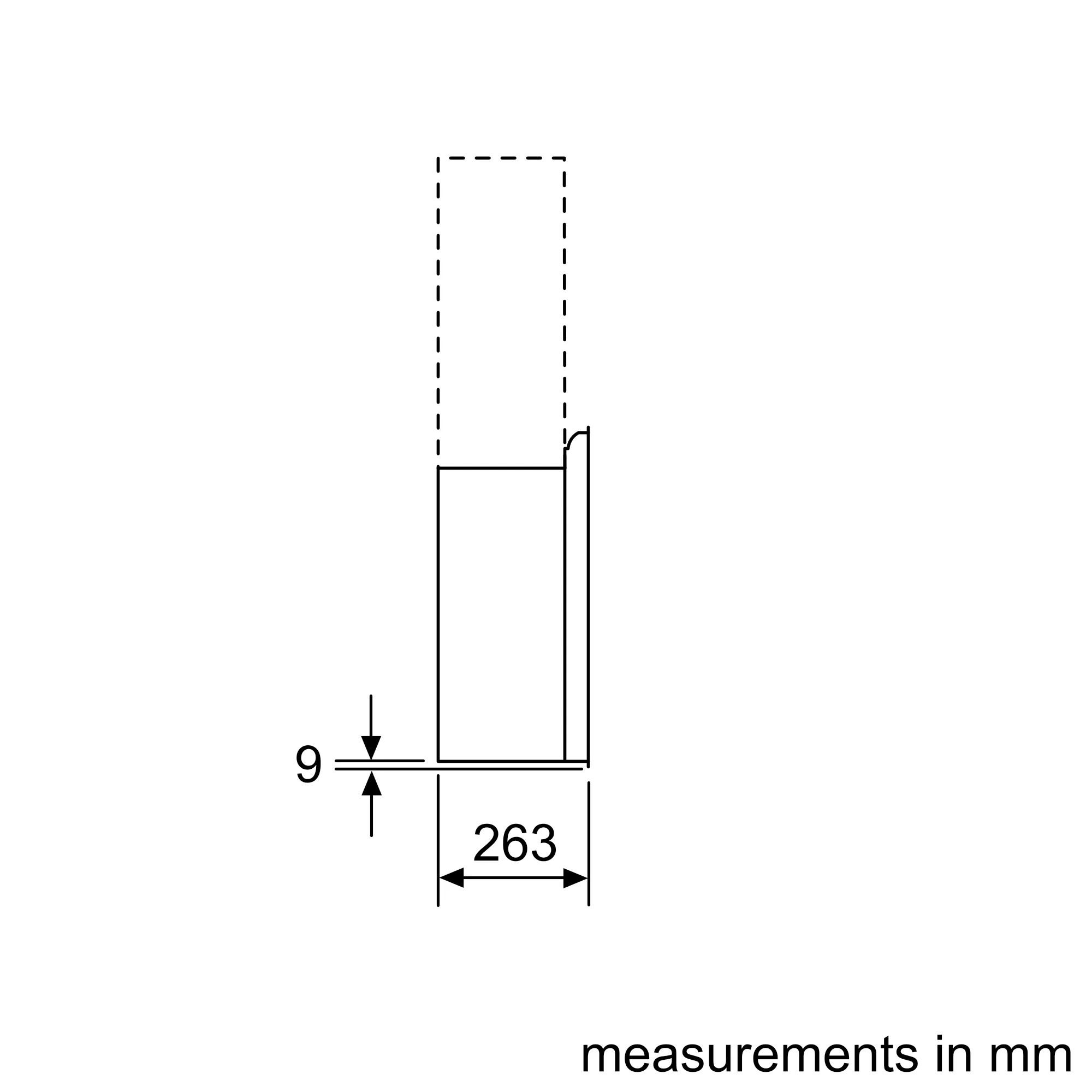

Depth
263 mm
Dimensions of the packed product (HxWxD)
540 x 740 x 1040 mm
Minimum distance above an electric hob
450 mm
Minimum distance above a gas hob
600 mm
Diameter of air outlet
120 / 150 mm
No-return airflow flap
No
Length electrical supply cord
130 cm
Net weight
29.5 kg
Handle bar
N/A

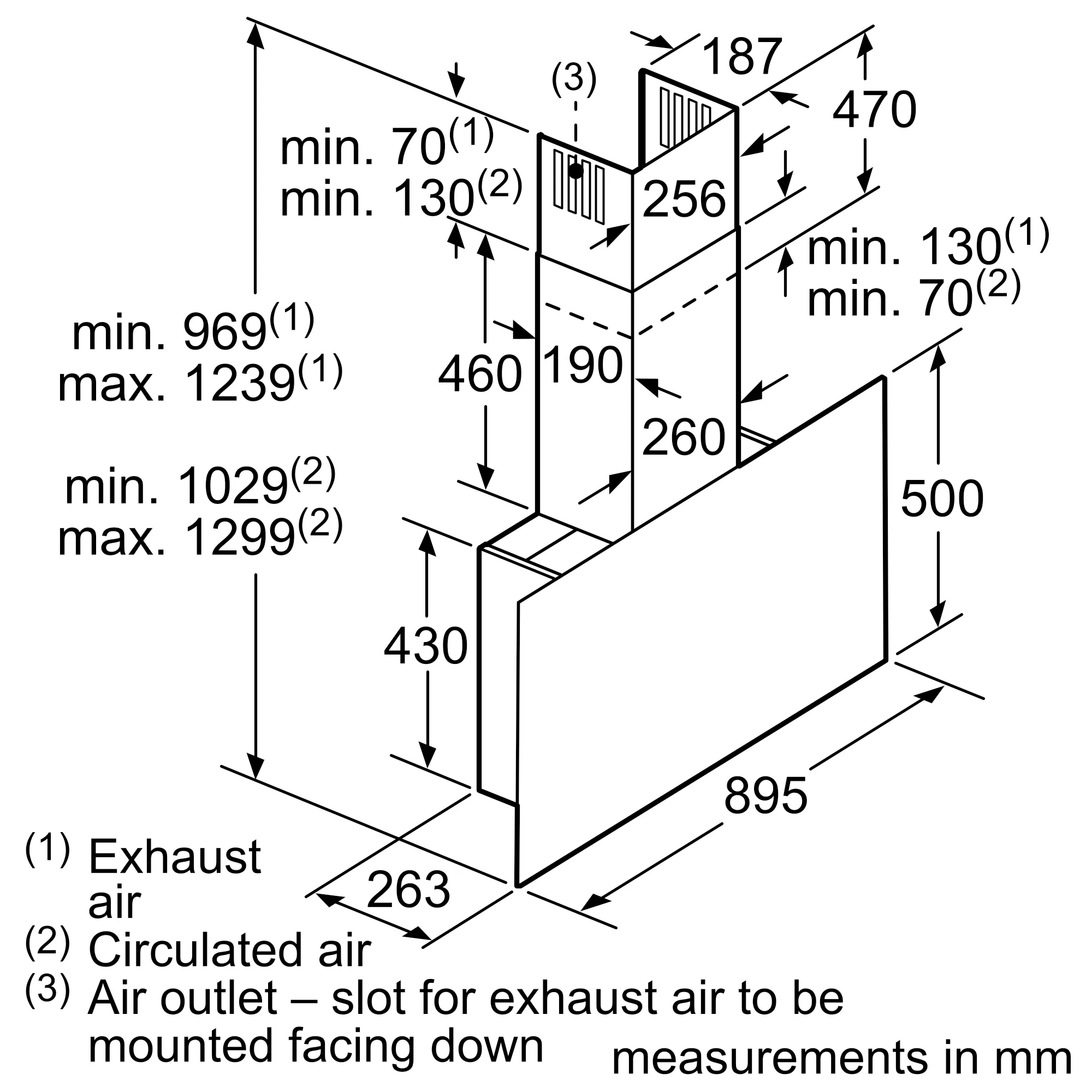

Appliance height exhaust air max
1239 mm
Appliance height exhaust air min
969 mm
Appliance height recirculating max
1299 mm
Appliance height recirculating min
1029 mm
1 / 0
climatecontrol sensor
No
SilentPowerDrive
Yes
Silence
Yes
Clean filter reminders
Yes
Boost position
Yes
Delay Shut off modes
Yes
Remote control
No
Type of lamps used
LED
Number of lights
2
Total luminance
225 lux
Colour temperature
Neutral (3.500 K)
Illumination type softlight
Yes
Color temperature control via smartphone with Home Connect
No
emotionLight Pro
No
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Control your hood with your Home Connect hob
No
Smart Hood Automatic
No
