Technical Overview
Installation typology
Wall-mounted
Type of appliance width
90 cm
Control your hood with your Home Connect hob
No
Sound pressure recirculated air level 2
53 dB(A) re 1 pW
climatecontrol sensor
No
Operating Mode
Convertible
Maximum output air extraction
450 m³/h
Boost position air extraction
790 m³/h
Specifications
Type of appliance width
90 cm
Color body
Stainless steel
Installation typology
Wall-mounted
Operating Mode
Convertible
Total power of the motors
160 W
Type of control setting devices
7-segment display, Low-lift pushbuttons
Number of speed settings
3-stage + 2 intensive
Maximum output air extraction
450 m³/h
Boost position air extraction
790 m³/h
Sound power at max. speed (2010/30/EC)
60 dB
Sound power boost (2010/30/EC)
72 dB
Maximum output recirculating air
310 m³/h
Boost position output recirculating
380.0 m³/h
Sound power at max. speed (recirculation)
70 dB
Sound power boost (recirculation)
74 dB
Grease filter material
Washable aluminium
Energy efficiency rating
B
Total annual energy consumption
56.2 kWh/a
Height of the appliance
85 mm
Width of the appliance
900 mm
Depth
500 mm
Dimensions of the packed product (HxWxD)
710 x 1000 x 665 mm
Height of the chimney
582-911/582-1021 mm

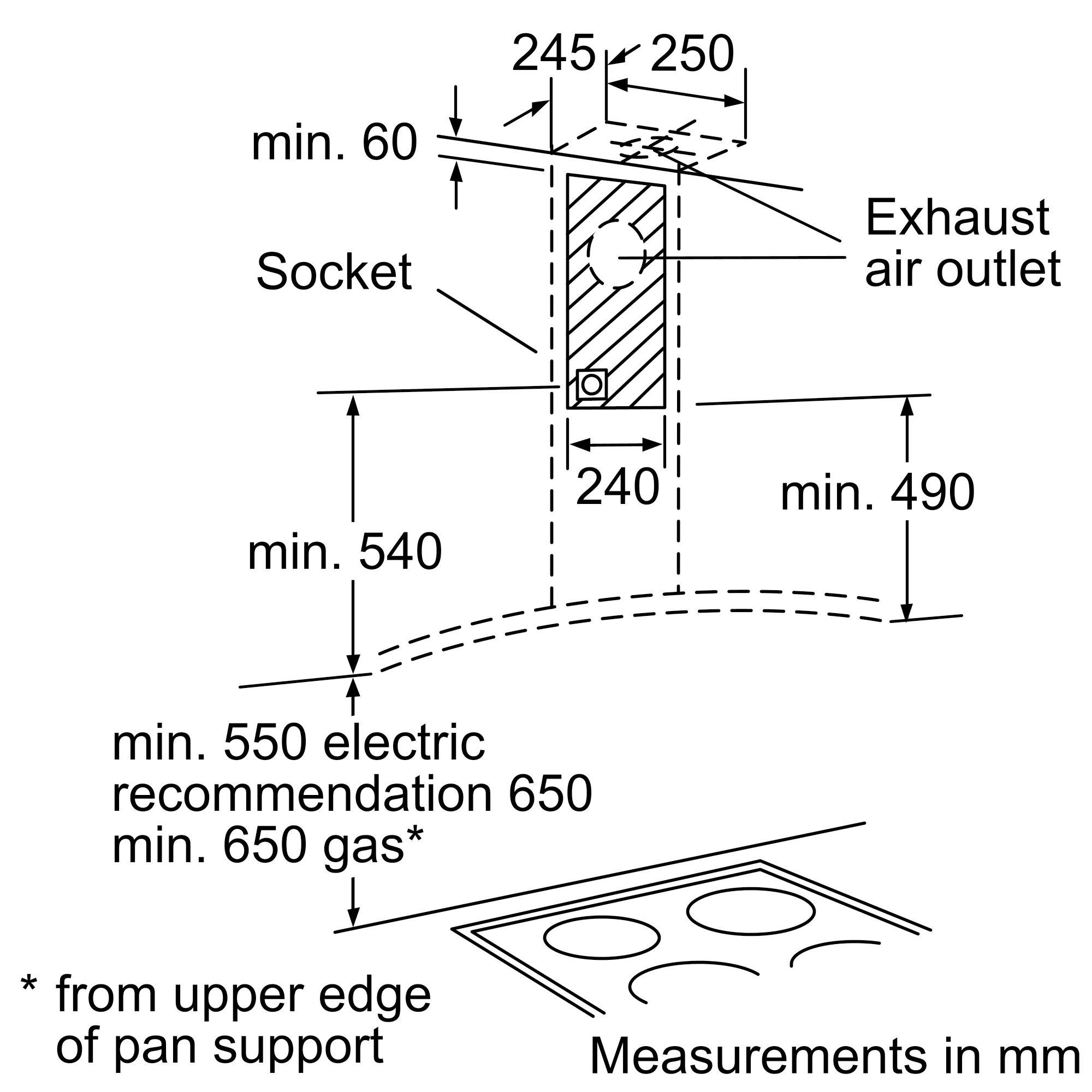

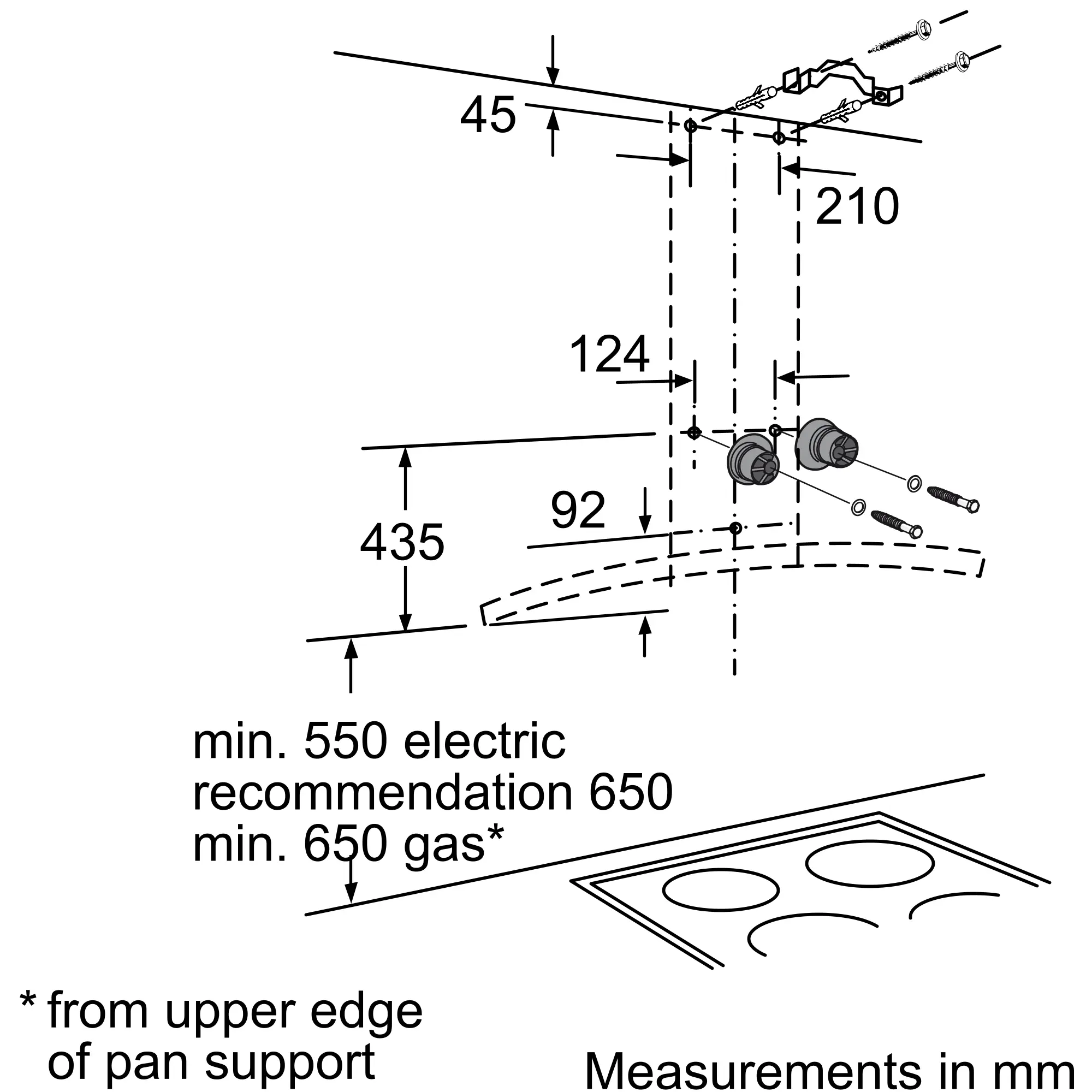

Minimum distance above an electric hob
550 mm
Minimum distance above a gas hob
650 mm

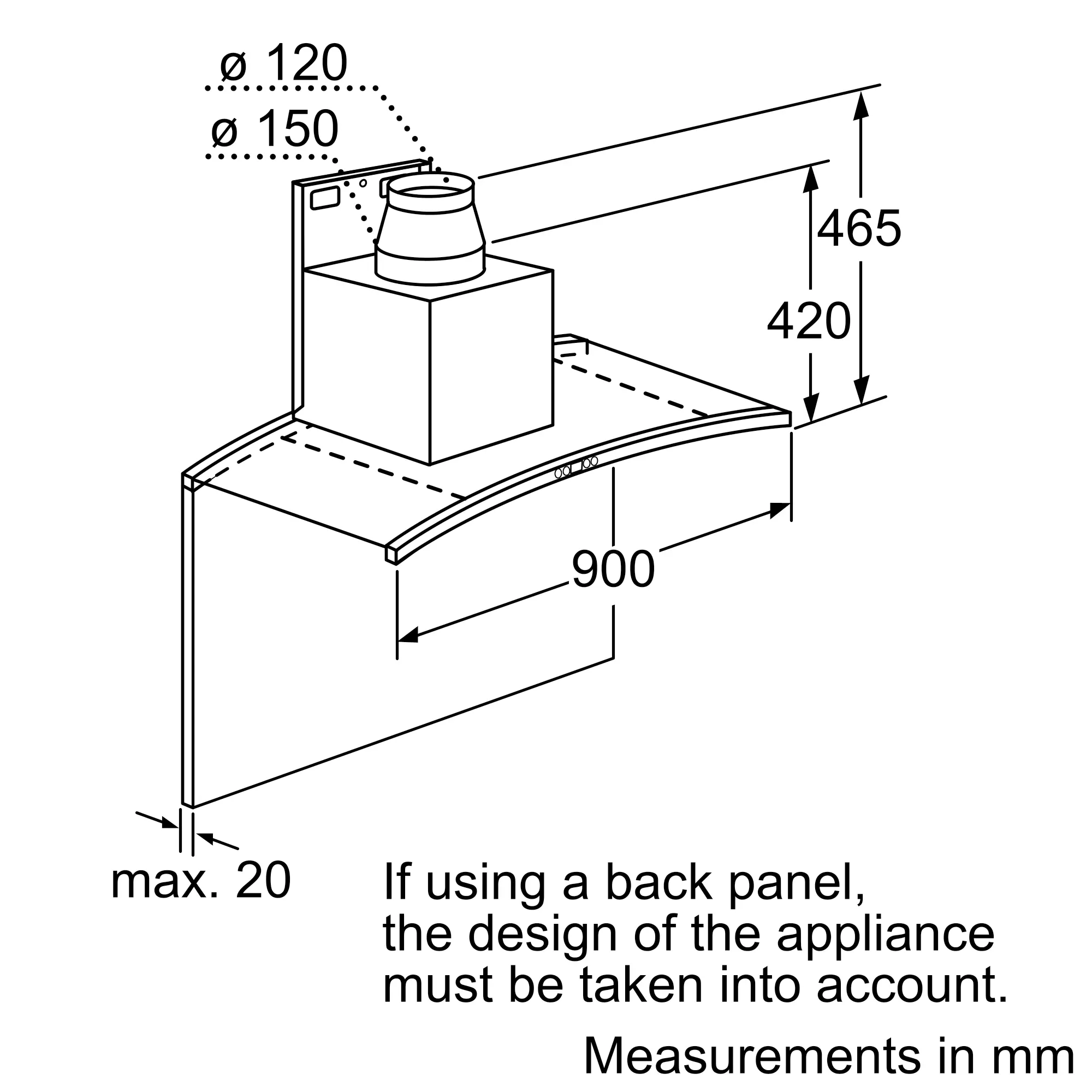

Diameter of air outlet
120 / 150 mm
No-return airflow flap
No
Length electrical supply cord
130.0 cm
Net weight
22.4 kg
Handle bar
Not applicable

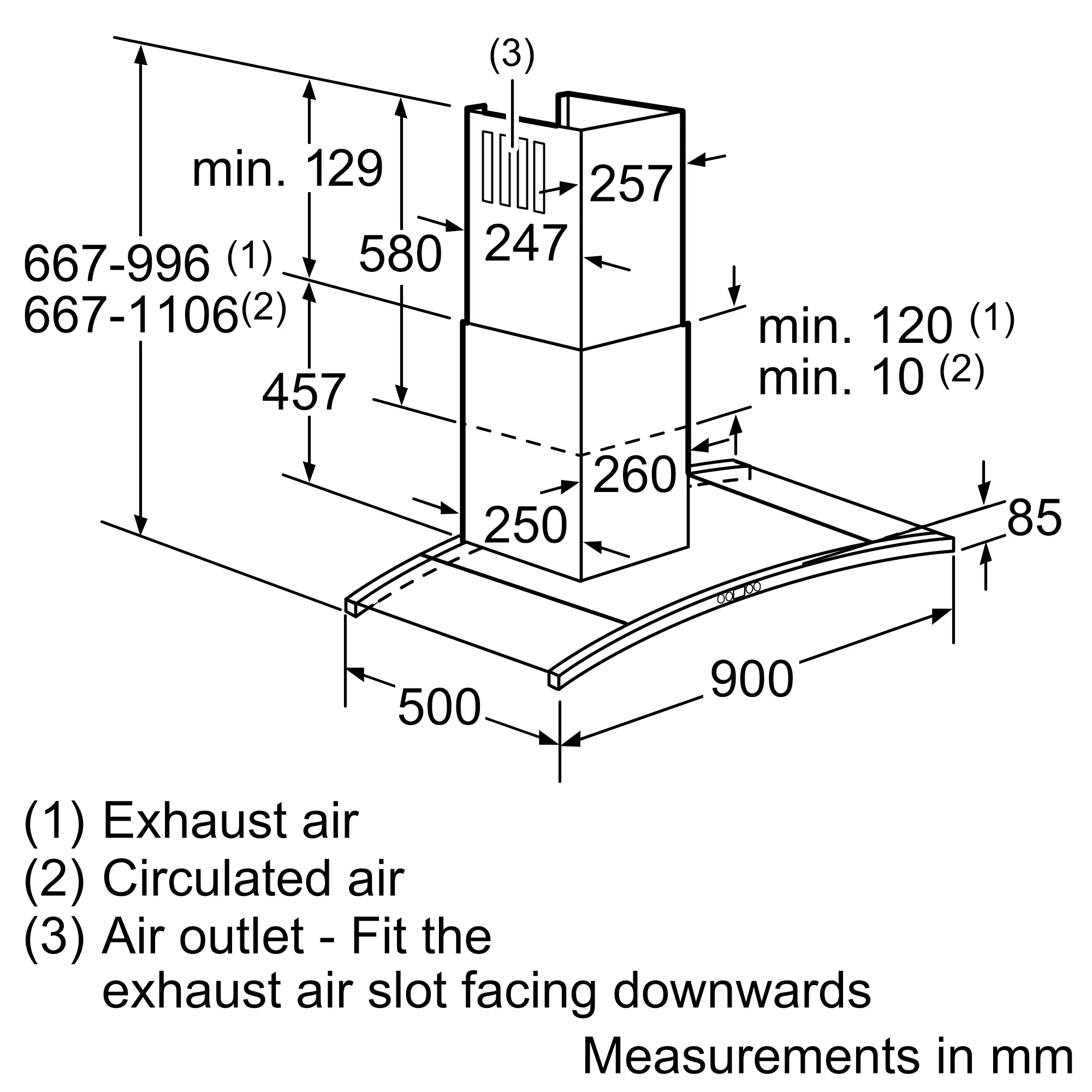

Appliance height exhaust air max
996 mm
Appliance height exhaust air min
667 mm
Appliance height recirculating max
1106 mm
Appliance height recirculating min
667 mm
1 / 0
climatecontrol sensor
No
SilentPowerDrive
Yes
Silence
No
Clean filter reminders
Yes
Boost position
Yes
Delay Shut off modes
Yes
Remote control
No
Type of lamps used
Halogen
Number of lights
2
Total power of the lamps
40 W
Total luminance
459 lm
Colour temperature
Warm (<= 3.000 K)
Illumination type softlight
Yes
Color temperature control via smartphone with Home Connect
No
emotionLight Pro
No
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Control your hood with your Home Connect hob
No
Smart Hood Automatic
No
