Technical Overview
Installation typology
Wall-mounted
Type of appliance width
60 cm
Control your hood with your Home Connect hob
No
Sound pressure recirculated air level 2
53 dB(A) re 1 pW
climatecontrol sensor
No
Operating Mode
Convertible
Maximum output air extraction
450 m³/h
Boost position air extraction
790 m³/h
Specifications
Type of appliance width
60 cm
Color body
Stainless steel
Installation typology
Wall-mounted
Operating Mode
Convertible
Total power of the motors
160 W
Type of control setting devices
Low-lift pushbuttons, 7-segment display
Number of speed settings
3-stage + 2 intensive
Maximum output air extraction
450 m³/h
Boost position air extraction
790 m³/h
Sound power at max. speed (2010/30/EC)
59 dB
Sound power boost (2010/30/EC)
72 dB
Maximum output recirculating air
310 m³/h
Boost position output recirculating
380.0 m³/h
Sound power at max. speed (recirculation)
70 dB
Sound power boost (recirculation)
74 dB
Grease filter material
Washable aluminium
Energy efficiency rating
B
Total annual energy consumption
56.2 kWh/a
Height of the appliance
59 mm
Width of the appliance
600 mm
Depth
500 mm
Dimensions of the packed product (HxWxD)
720 x 710 x 660 mm
Height of the chimney
582-911/582-1021 mm

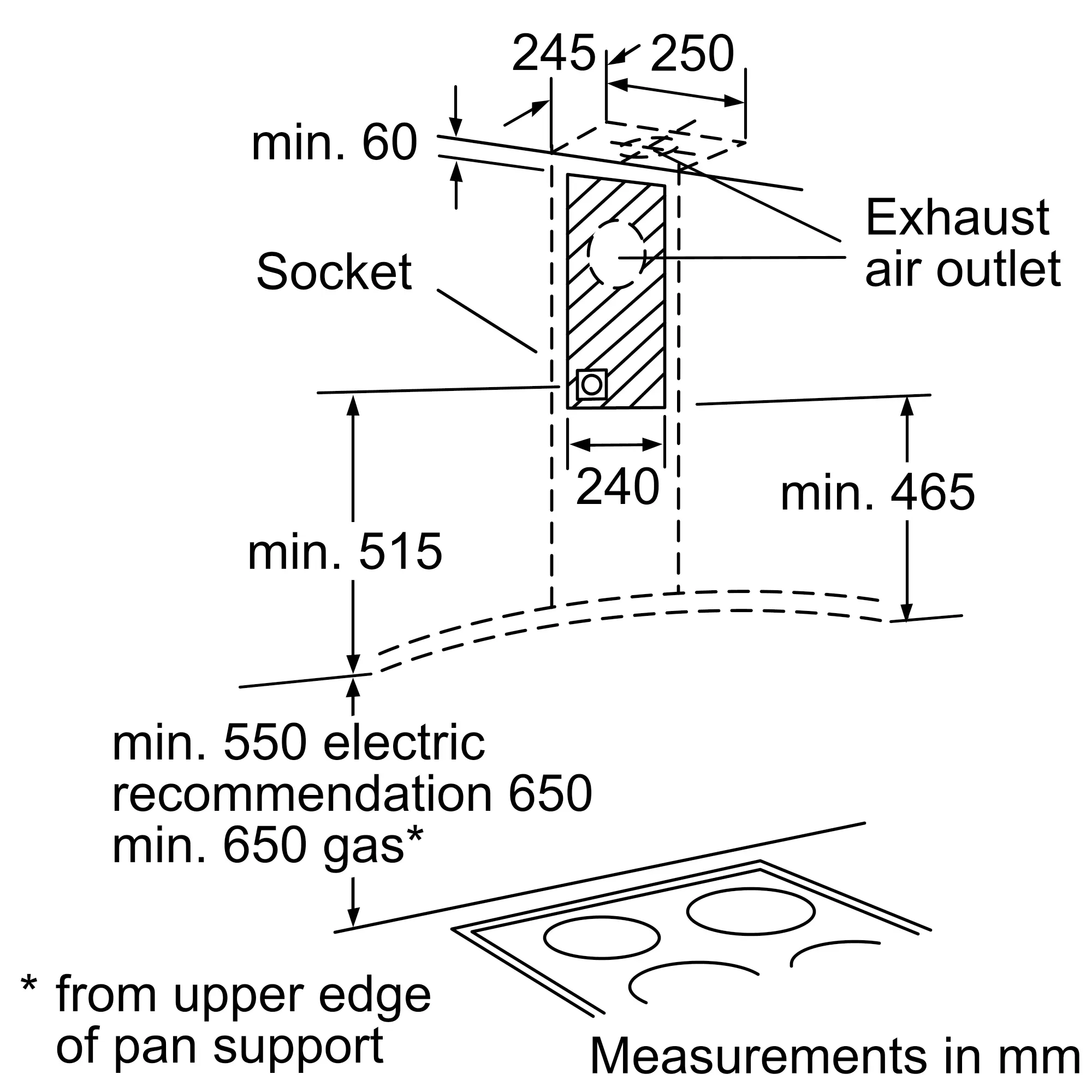

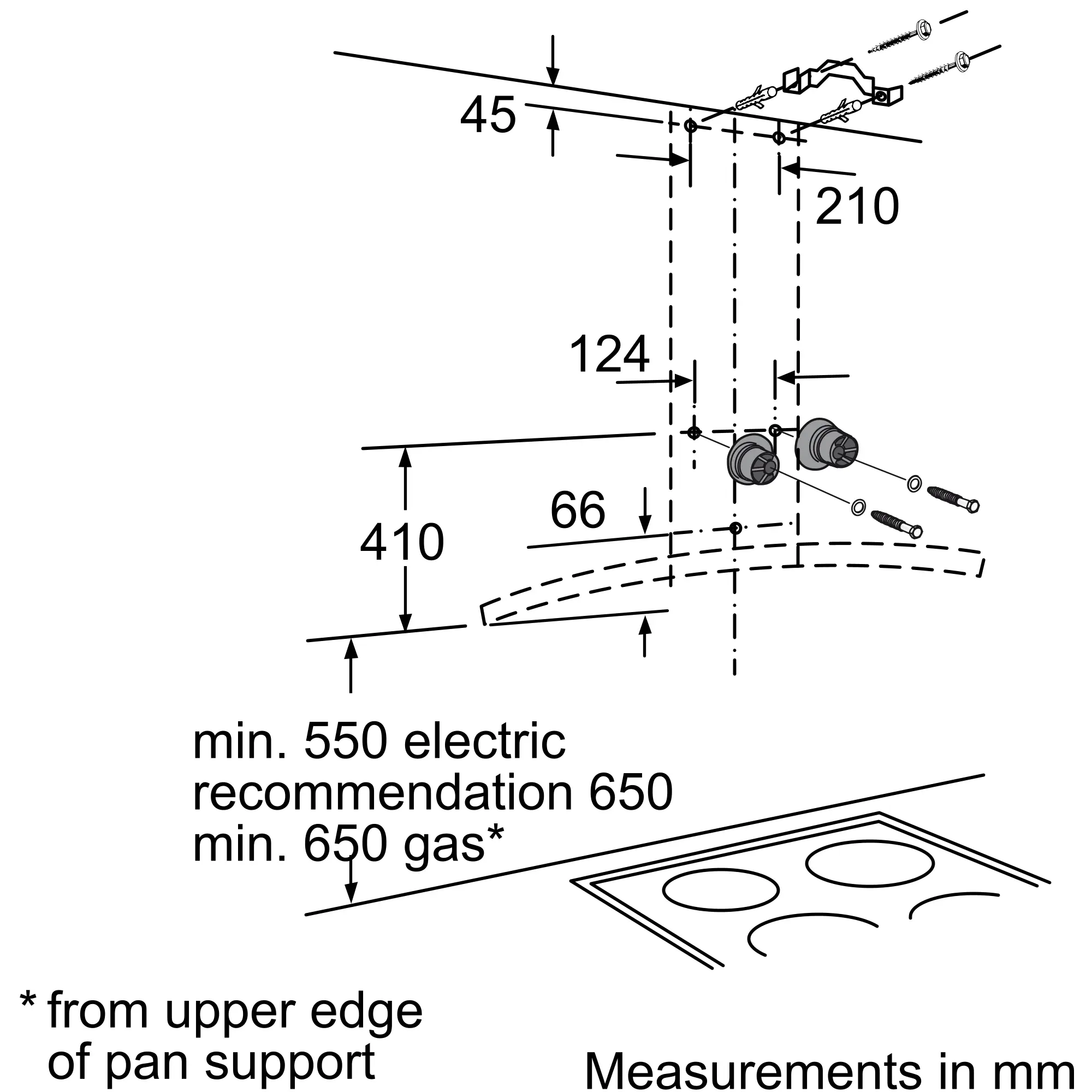

Minimum distance above an electric hob
550 mm
Minimum distance above a gas hob
650 mm

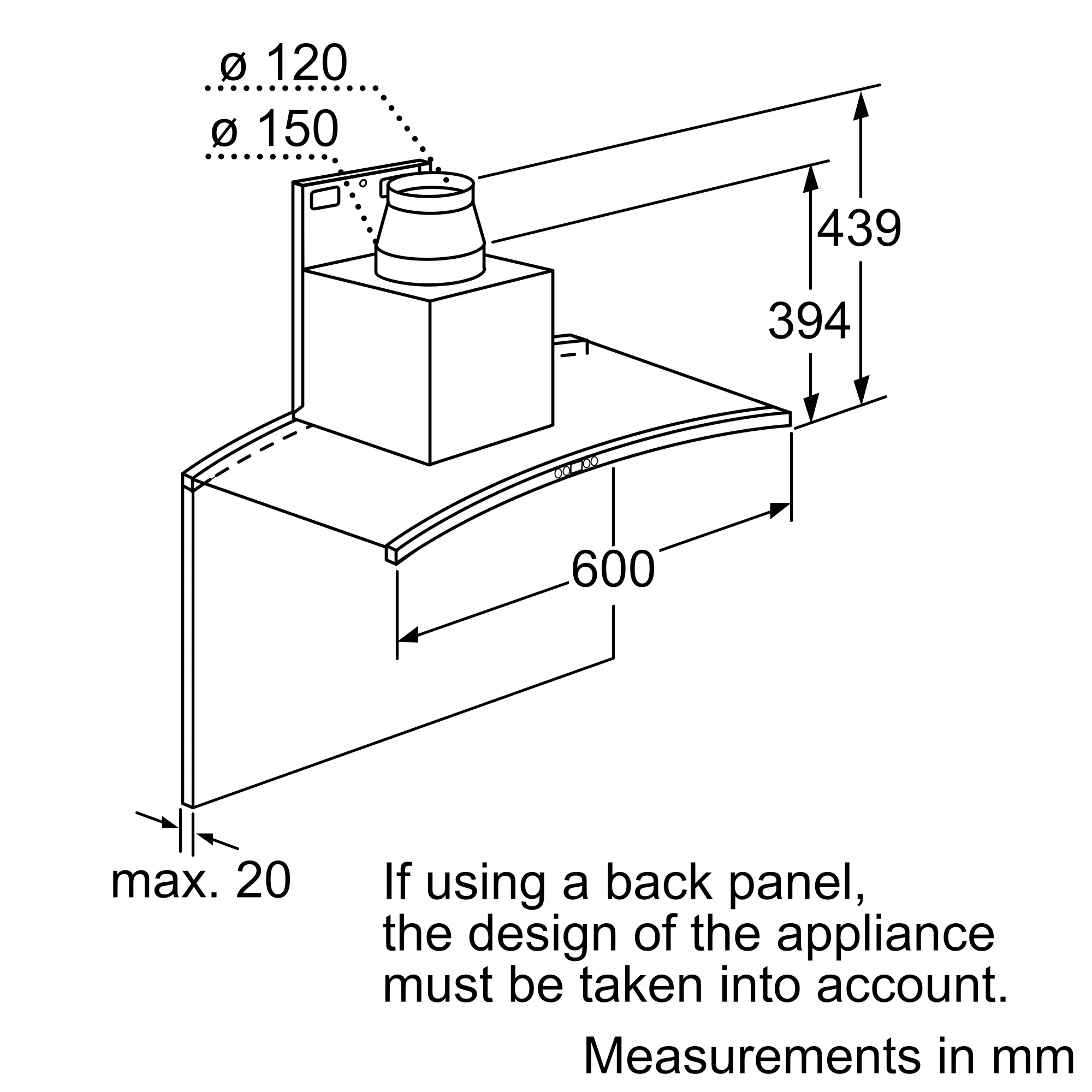

Diameter of air outlet
120 / 150 mm
No-return airflow flap
No
Length electrical supply cord
130 cm
Net weight
20.0 kg
Handle bar
N/A

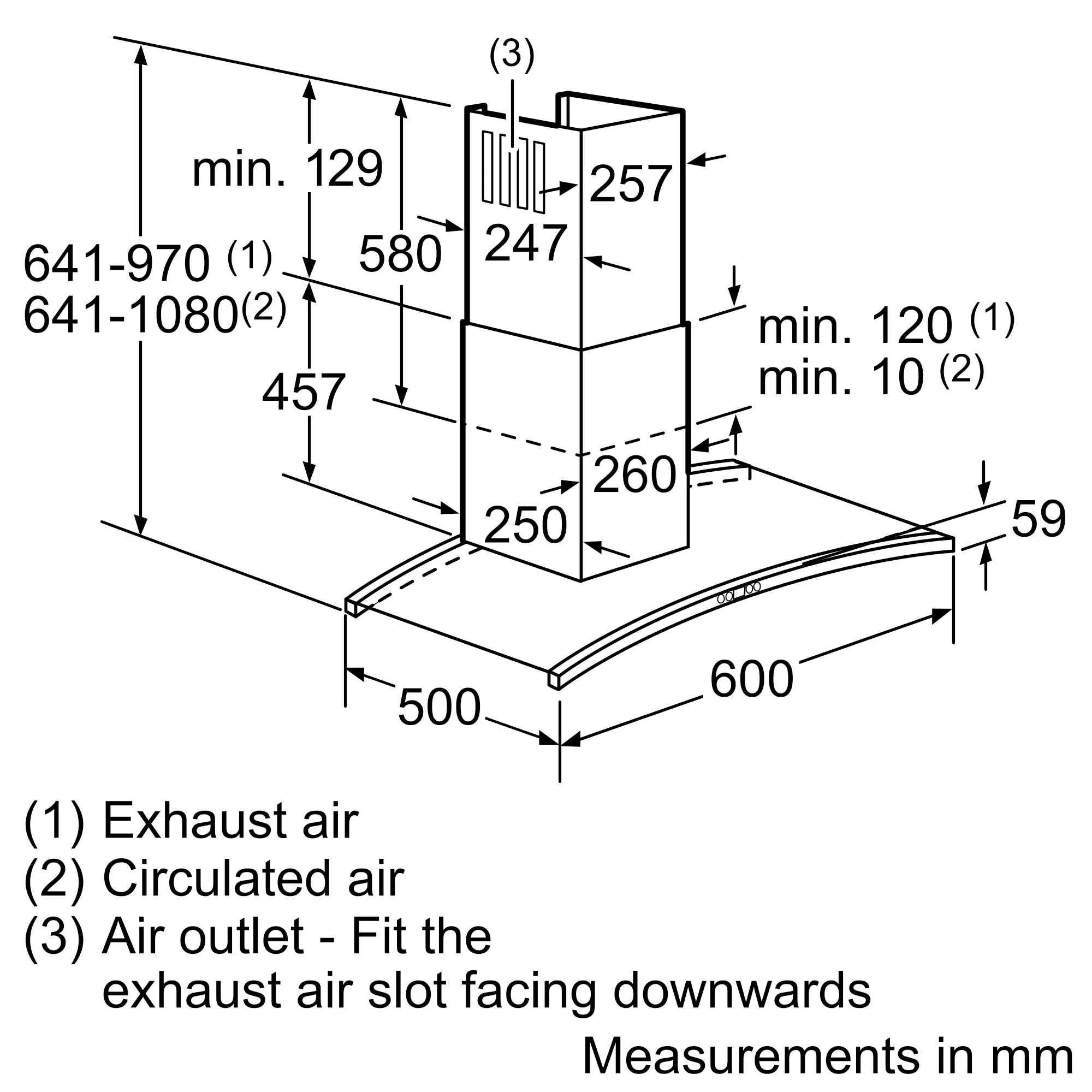

Appliance height exhaust air max
970 mm
Appliance height exhaust air min
641 mm
Appliance height recirculating max
1080 mm
Appliance height recirculating min
641 mm
1 / 0
climatecontrol sensor
No
SilentPowerDrive
Yes
Silence
Yes
Clean filter reminders
Yes
Boost position
Yes
Delay Shut off modes
Yes
Remote control
No
Type of lamps used
Halogen
Number of lights
2
Total power of the lamps
40 W
Total luminance
650 lux
Colour temperature
Warm (<= 3.000 K)
Illumination type softlight
Yes
Color temperature control via smartphone with Home Connect
No
emotionLight Pro
No
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Control your hood with your Home Connect hob
No
Smart Hood Automatic
No
