D76SH52N0B

Product is no longer available

More information and services related to this product

1 / 0

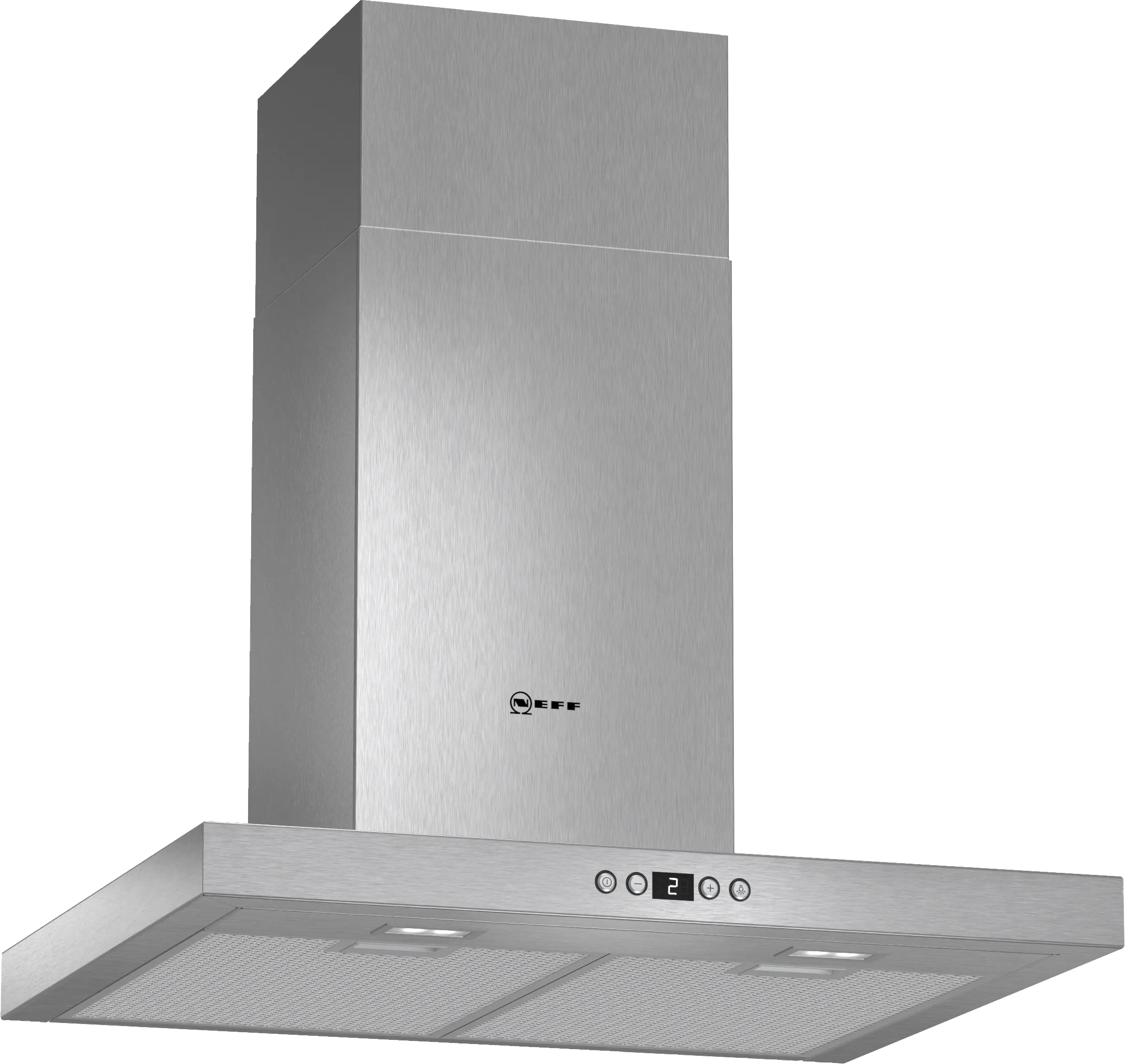

Photo Nr. 1 of the product D76SH52N0B
Photo Nr. 2 of the product D76SH52N0B
Photo Nr. 3 of the product D76SH52N0B
Photo Nr. 4 of the product D76SH52N0B
Photo Nr. 5 of the product D76SH52N0B
D76SH52N0B

Product is no longer available

More information and services related to this product

D76SH52N0B

Product is no longer available

More information and services related to this product

Technical Overview

Installation typology
Wall-mounted
Type of appliance width
60 cm
Control your hood with your Home Connect hob
No
Sound pressure recirculated air level 2
51 dB(A) re 1 pW
climatecontrol sensor
No
Operating Mode
Convertible
Maximum output air extraction
430 m³/h
Boost position air extraction
680 m³/h

Specifications

Type of appliance width
60 cm
Color body
Stainless steel
Installation typology
Wall-mounted
Operating Mode
Convertible
Total power of the motors
130 W
Type of control setting devices
7-segment display, Low-lift pushbuttons
Number of speed settings
3-stage + 2 intensive
Maximum output air extraction
430 m³/h
Boost position air extraction
680 m³/h
Sound power at max. speed (2010/30/EC)
58 dB
Sound power boost (2010/30/EC)
69 dB
Maximum output recirculating air
290 m³/h
Boost position output recirculating
350.0 m³/h
Sound power at max. speed (recirculation)
69 dB
Sound power boost (recirculation)
73 dB
Grease filter material
Washable aluminium
Energy efficiency rating
A
Total annual energy consumption
28.5 kWh/a
Height of the appliance
46 mm
Width of the appliance
600 mm
Depth
500 mm
Dimensions of the packed product (HxWxD)
585 x 650 x 670 mm
Height of the chimney
582-908/582-1018 mm
Minimum distance above an electric hob
550 mm
Minimum distance above a gas hob
650 mm
Diameter of air outlet
150 / 120 mm
No-return airflow flap
No
Length electrical supply cord
130 cm
Net weight
18.8 kg
Handle bar
N/A
Appliance height exhaust air max
954 mm
Appliance height exhaust air min
628 mm
Appliance height recirculating max
1064 mm
Appliance height recirculating min
628 mm
1 / 0
Photo Nr. 1 of the product
Photo Nr. 2 of the product
Photo Nr. 3 of the product
Photo Nr. 4 of the product
climatecontrol sensor
No
SilentPowerDrive
Yes
Silence
Yes
Clean filter reminders
Yes
Boost position
Yes
Delay Shut off modes
Yes
Remote control
No
Type of lamps used
LED
Number of lights
2
Total power of the lamps
6 W
Total luminance
745 lux
Colour temperature
Neutral (3.500 K)
Illumination type softlight
Yes
Color temperature control via smartphone with Home Connect
No
emotionLight Pro
No
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Control your hood with your Home Connect hob
No
Smart Hood Automatic
No
