Technical Overview
Installation typology
Built-in
Type of appliance width
70 cm
Control your hood with your Home Connect hob
No
Sound pressure recirculated air level 2
57 dB(A) re 1 pW
climatecontrol sensor
No
Operating Mode
Convertible
Maximum output air extraction
630 m³/h
Boost position air extraction
730 m³/h
Highlights
Specifications
Type of appliance width
70 cm
Color body
Stainless steel
Installation typology
Built-in
Operating Mode
Convertible
Total power of the motors
275 W
Type of control setting devices
Button
Number of speed settings
3-stages + intensive setting
Maximum output air extraction
630 m³/h
Boost position air extraction
730 m³/h
Sound power at max. speed (2010/30/EC)
66 dB
Sound power boost (2010/30/EC)
69 dB
Maximum output recirculating air
571 m³/h
Boost position output recirculating
664 m³/h
Sound power at max. speed (recirculation)
72 dB
Sound power boost (recirculation)
75 dB
Grease filter material
Washable aluminium
Energy efficiency rating
C
Total annual energy consumption
104.2 kWh/a
Included user manuals
[EN]

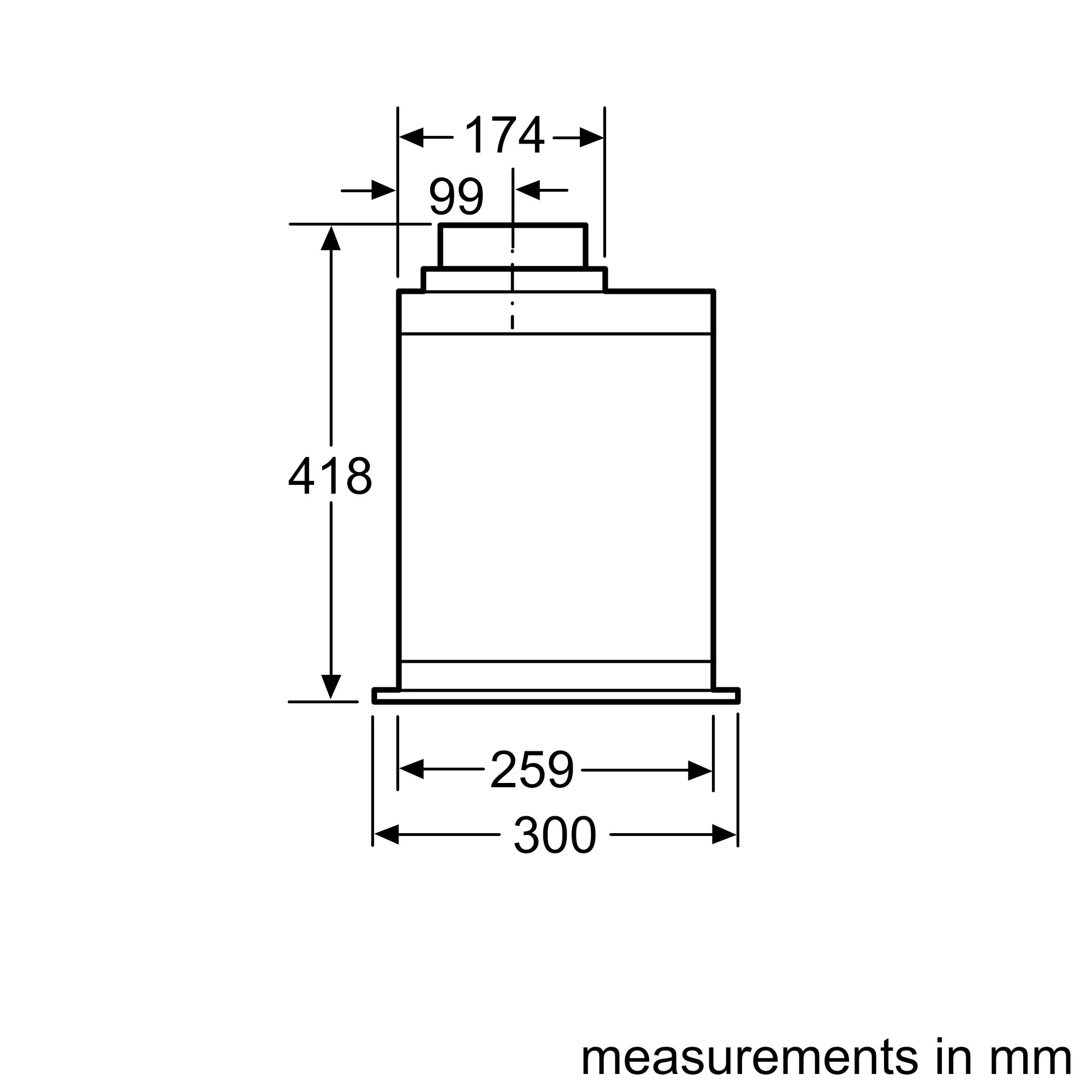

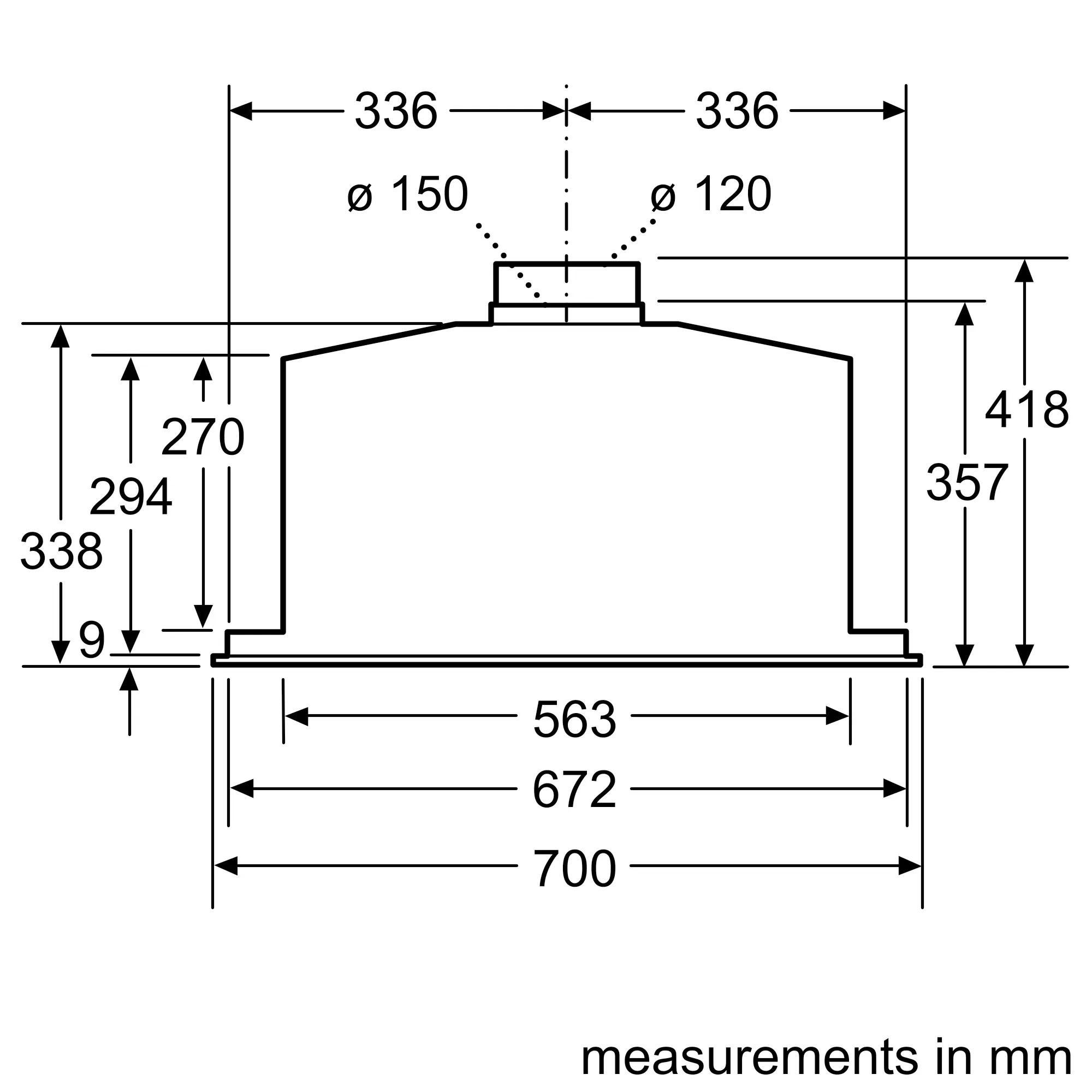

Height of the appliance
418 mm
Width of the appliance
700 mm
Depth
300 mm
Dimensions of the packed product (HxWxD)
370x885x465 mm
Minimum distance above an electric hob
500 mm
Minimum distance above a gas hob
650 mm
Diameter of air outlet
120 / 150 mm
No-return airflow flap
Yes
Length electrical supply cord
150 cm
Net weight
9.3 kg
Handle bar
N/A
Appliance height exhaust air max
418 mm
Appliance height exhaust air min
418 mm
Appliance height recirculating max
418 mm
Appliance height recirculating min
418 mm

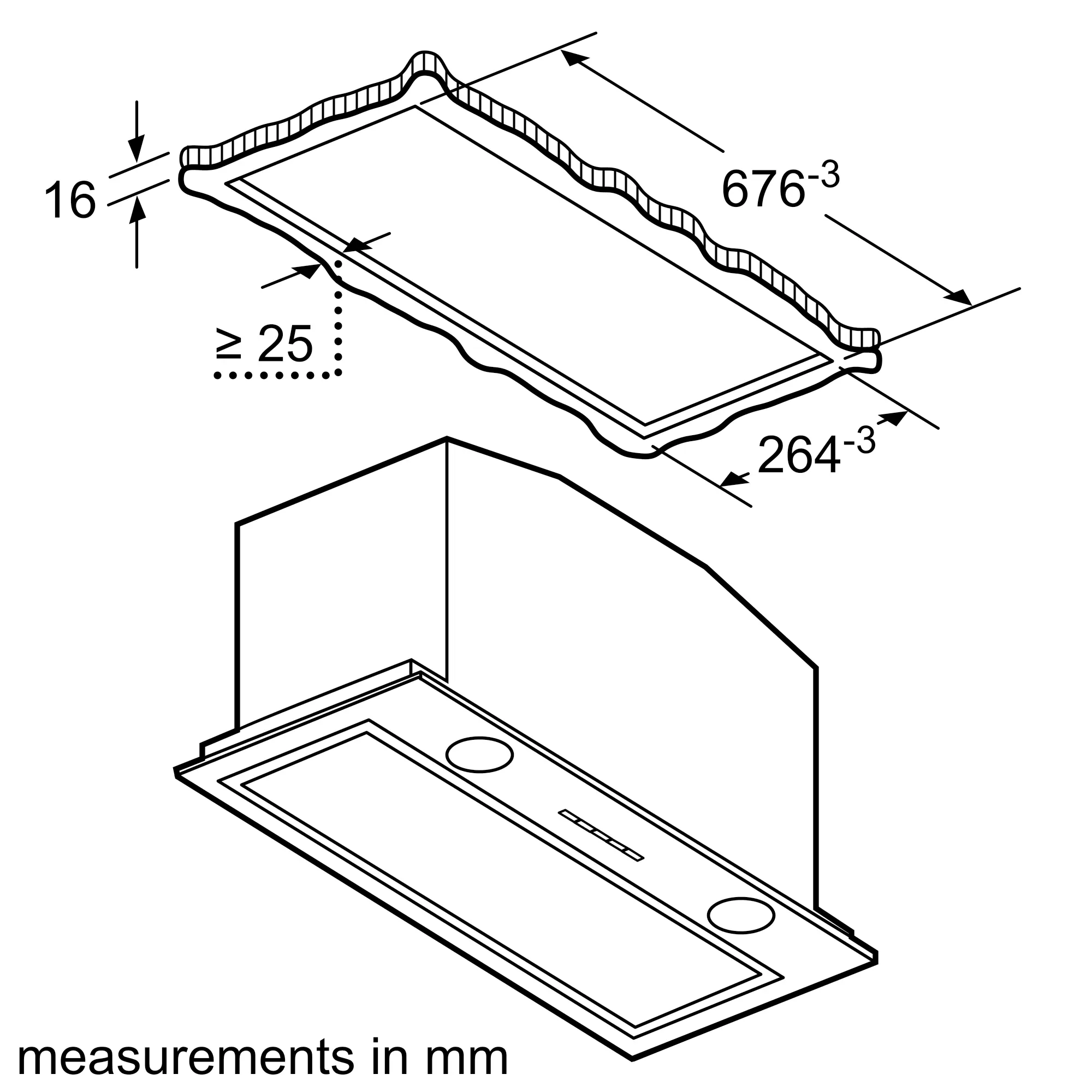

Maximum width for installation
676 mm
Minimum width for installation
676 mm
Depth for installation
264 mm
1 / 0
climatecontrol sensor
No
SilentPowerDrive
No
Silence
No
Clean filter reminders
No
Boost position
Yes
Delay Shut off modes
No
Remote control
No
Type of lamps used
LED
Number of lights
2
Total power of the lamps
2 W
Total luminance
244 lux
Colour temperature
Cold white (4.000 K)
Illumination type softlight
No
Color temperature control via smartphone with Home Connect
No
emotionLight Pro
No
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Control your hood with your Home Connect hob
No
Smart Hood Automatic
No
