D49PU54X0B

Product is no longer available

More information and services related to this product

1 / 0

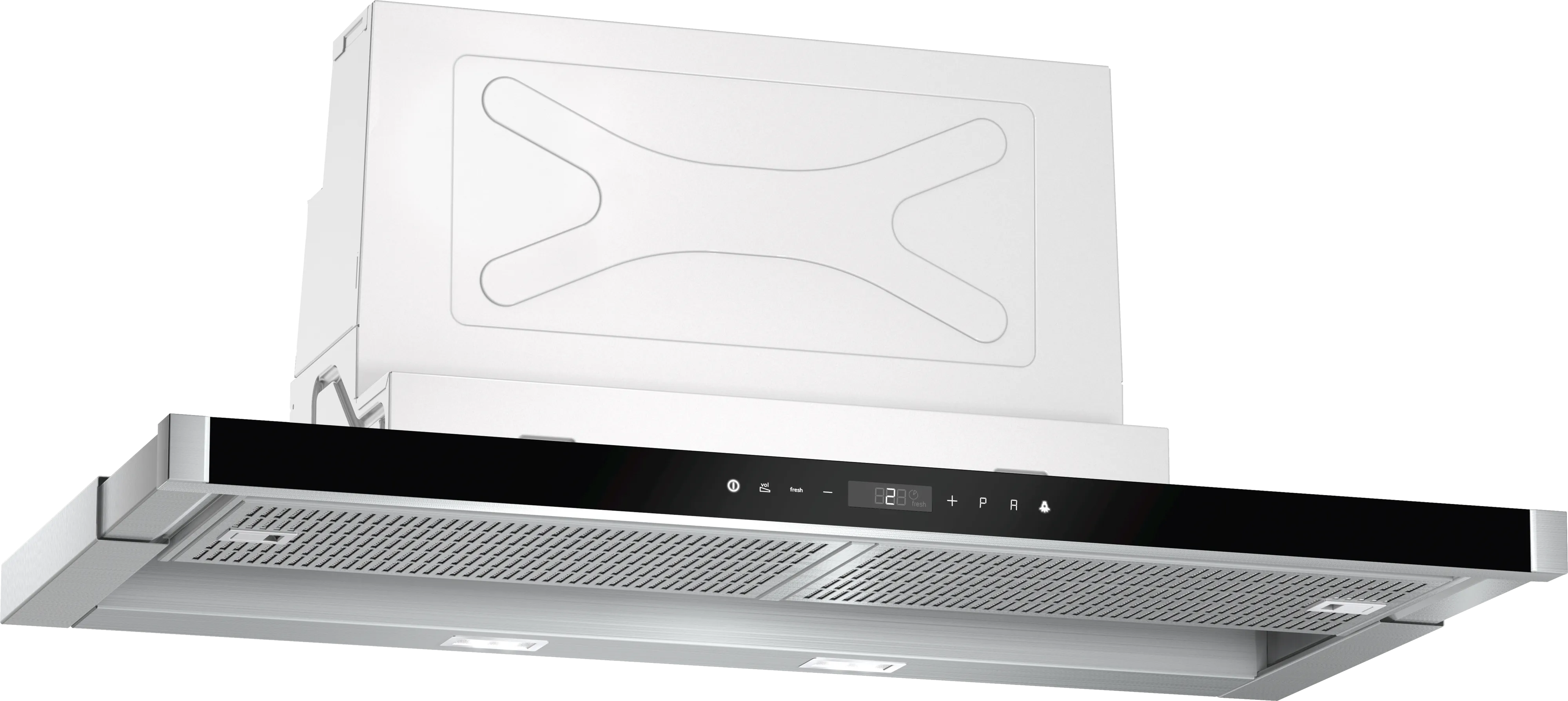

Photo Nr. 1 of the product D49PU54X0B

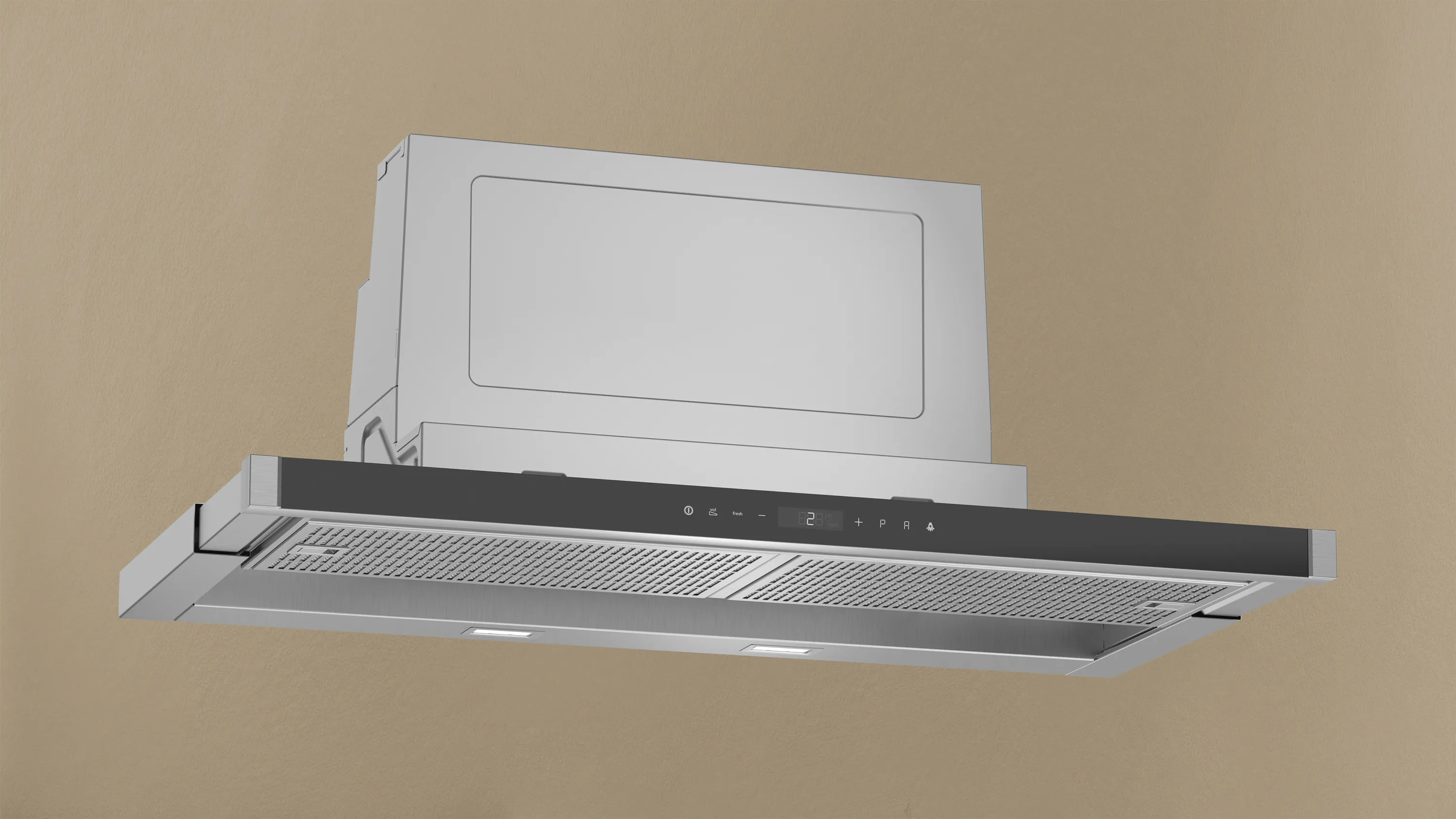

Photo Nr. 2 of the product D49PU54X0B

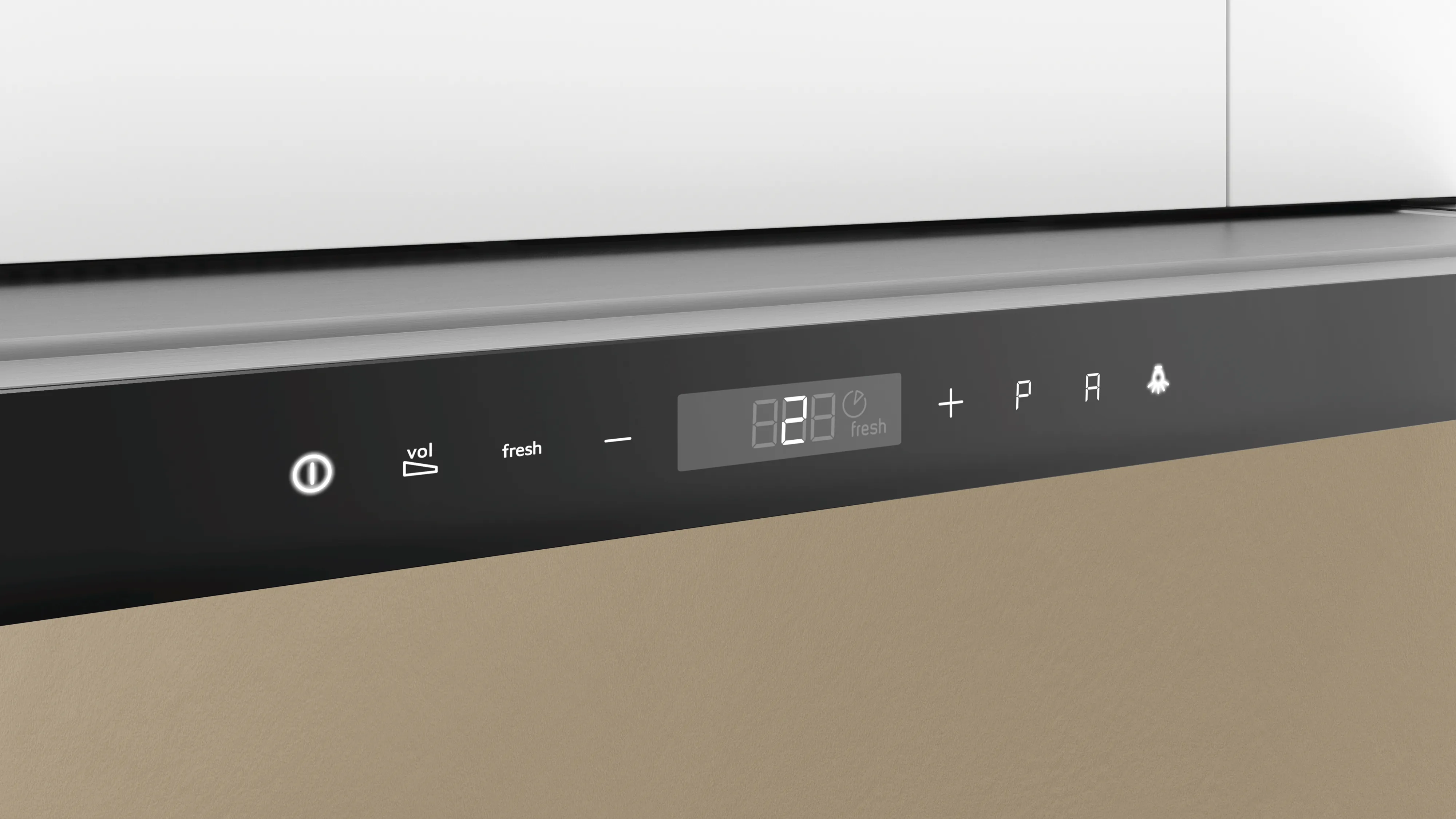

Photo Nr. 3 of the product D49PU54X0B

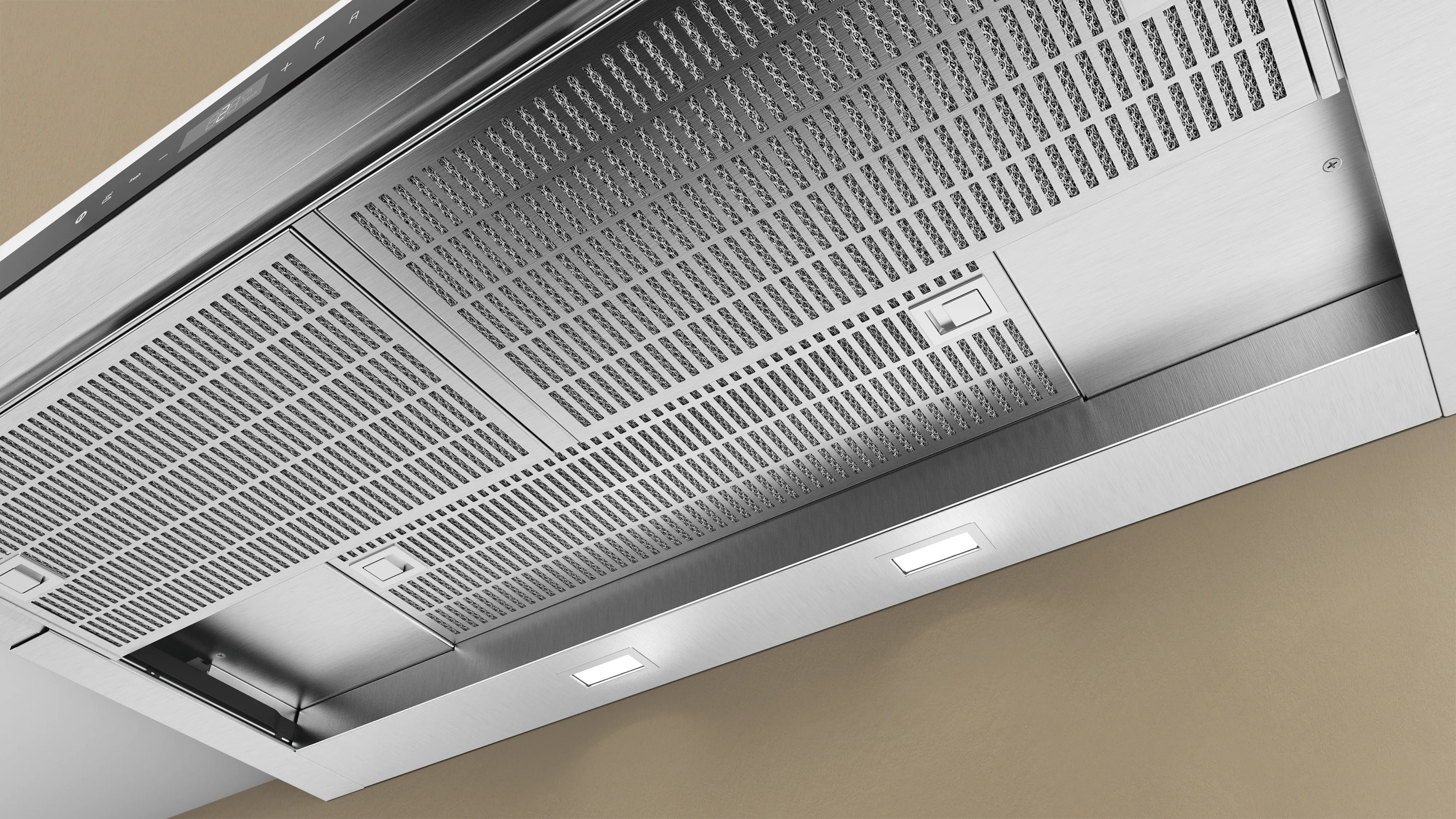

Photo Nr. 4 of the product D49PU54X0B
Photo Nr. 5 of the product D49PU54X0B
Photo Nr. 6 of the product D49PU54X0B
Photo Nr. 7 of the product D49PU54X0B
Photo Nr. 8 of the product D49PU54X0B
D49PU54X0B

Product is no longer available

More information and services related to this product

D49PU54X0B

Product is no longer available

More information and services related to this product

Technical Overview

Installation typology
Built-in
Type of appliance width
90 cm
Control your hood with your Home Connect hob
No
Sound pressure recirculated air level 2
42 dB(A) re 1 pW
climatecontrol sensor
Yes
Operating Mode
Convertible
Maximum output air extraction
395 m³/h
Boost position air extraction
708 m³/h

Highlights

Specifications

Type of appliance width
90 cm
Color body
Stainless steel
Installation typology
Built-in
Operating Mode
Convertible
Total power of the motors
140 W
Number of speed settings
3-stage + 2 intensive
Maximum output air extraction
395 m³/h
Boost position air extraction
708 m³/h
Sound power at max. speed (2010/30/EC)
56 dB
Sound power boost (2010/30/EC)
68 dB
Maximum output recirculating air
358 m³/h
Boost position output recirculating
628 m³/h
Sound power at max. speed (recirculation)
60 dB
Sound power boost (recirculation)
71 dB
Grease filter material
Washable stainless steel
Energy efficiency rating
B
Total annual energy consumption
37.9 kWh/a
Included user manuals
[EN]
Height of the appliance
426 mm
Width of the appliance
898 mm
Depth
290 mm
Dimensions of the packed product (HxWxD)
400x940x480 mm
Minimum distance above an electric hob
430 mm
Minimum distance above a gas hob
650 mm
Diameter of air outlet
120 / 150 mm
No-return airflow flap
No
Length electrical supply cord
175 cm
Net weight
13.7 kg
Handle bar
External
Appliance height exhaust air max
426 mm
Appliance height exhaust air min
426 mm
Appliance height recirculating max
426 mm
Appliance height recirculating min
426 mm
Maximum width for installation
524 mm
Minimum width for installation
524 mm
Depth for installation
290 mm
1 / 0
Photo Nr. 1 of the product
Photo Nr. 2 of the product
Photo Nr. 3 of the product
Photo Nr. 4 of the product
Photo Nr. 5 of the product
Photo Nr. 6 of the product
Photo Nr. 7 of the product
climatecontrol sensor
Yes
SilentPowerDrive
Yes
Silence
Yes
Clean filter reminders
Yes
Boost position
Yes
Delay Shut off modes
Yes
Remote control
No
Type of lamps used
LED
Number of lights
2
Total power of the lamps
6 W
Total luminance
601 lux
Colour temperature
Neutral (3.500 K)
Illumination type softlight
Yes
Color temperature control via smartphone with Home Connect
No
emotionLight Pro
No
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Control your hood with your Home Connect hob
No
Smart Hood Automatic
No
