Technical Overview
Installation typology
Built-in
Type of appliance width
60 cm
Control your hood with your Home Connect hob
No
Sound pressure recirculated air level 2
59 dB(A) re 1 pW
climatecontrol sensor
No
Operating Mode
Convertible
Maximum output air extraction
387 m³/h
Specifications
Type of appliance width
60 cm
Color body
Silver metallic
Installation typology
Built-in
Operating Mode
Convertible
Total power of the motors
105 W

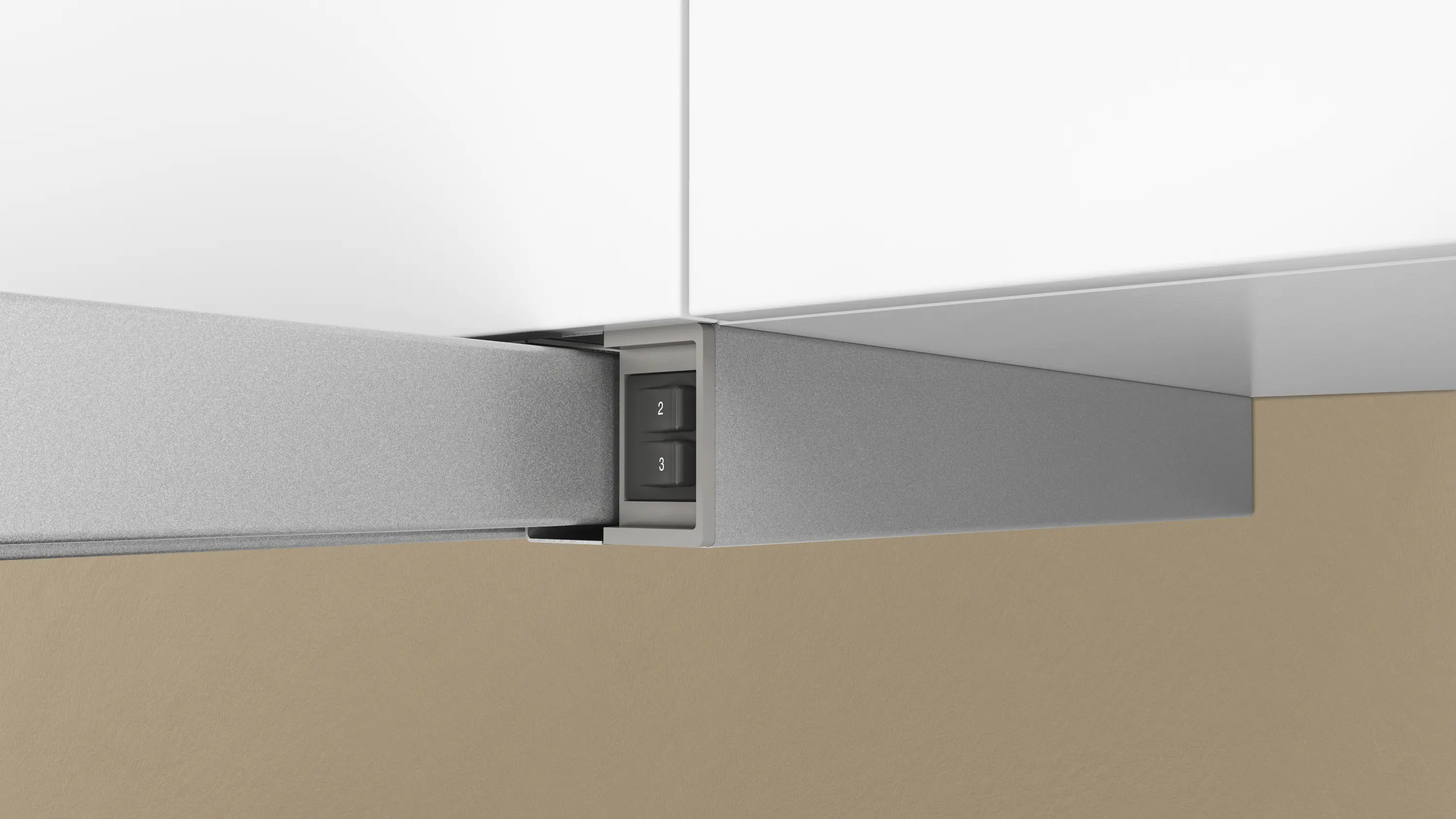

Type of control setting devices
Rocker switch
Number of speed settings
3
Maximum output air extraction
387 m³/h
Sound power at max. speed (2010/30/EC)
67 dB
Maximum output recirculating air
195 m³/h
Sound power at max. speed (recirculation)
74 dB

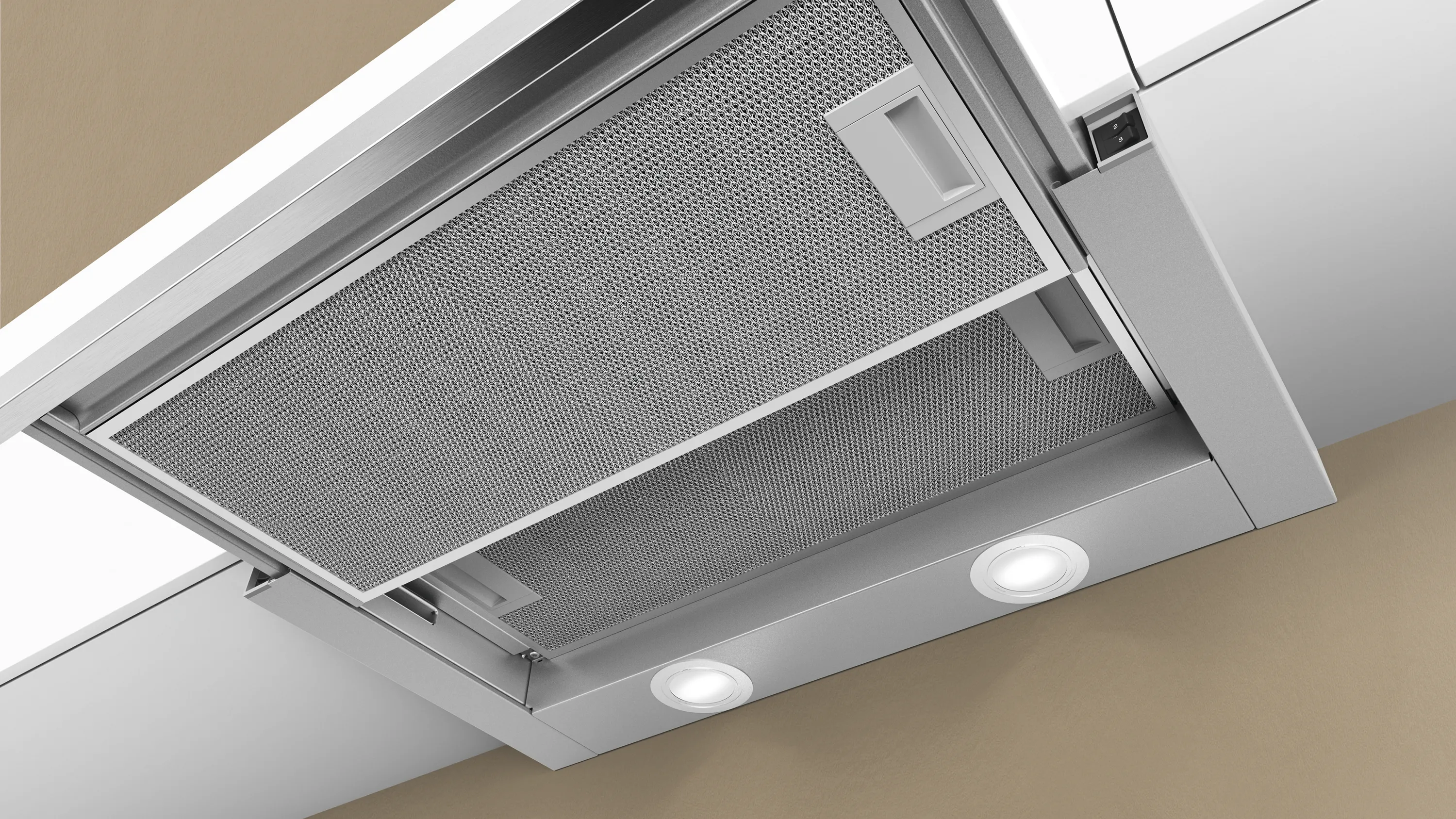

Grease filter material
Washable aluminium
Energy efficiency rating
C
Total annual energy consumption
68.3 kWh/a
Included user manuals
[EN]
Height of the appliance
203 mm
Width of the appliance
598 mm
Depth
290 mm
Dimensions of the packed product (HxWxD)
310x640x360 mm
Minimum distance above an electric hob
430 mm
Minimum distance above a gas hob
650 mm
Diameter of air outlet
150 / 120 mm
No-return airflow flap
No
Length electrical supply cord
175 cm
Net weight
8.4 kg
Handle bar
enclosed
Appliance height exhaust air max
203 mm
Appliance height exhaust air min
203 mm
Appliance height recirculating max
203 mm
Appliance height recirculating min
203 mm
Maximum width for installation
526 mm
Minimum width for installation
526 mm
Depth for installation
290 mm
1 / 0
climatecontrol sensor
No
SilentPowerDrive
No
Silence
No
Clean filter reminders
No
Boost position
No
Delay Shut off modes
No
Remote control
No
Type of lamps used
Halogen
Number of lights
2
Total power of the lamps
40 W
Total luminance
355 lux
Colour temperature
Warm (<= 3.000 K)
Illumination type softlight
No
Color temperature control via smartphone with Home Connect
No
emotionLight Pro
No
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Control your hood with your Home Connect hob
No
Smart Hood Automatic
No
