Technical Overview
Installation typology
Wall-mounted
Type of appliance width
90 cm
Control your hood with your Home Connect hob
No
Sound pressure recirculated air level 2
54 dB(A) re 1 pW
climatecontrol sensor
No
Operating Mode
Convertible
Maximum output air extraction
410 m³/h
Boost position air extraction
730 m³/h
Specifications
Type of appliance width
90 cm
Color body
Stainless steel
Installation typology
Wall-mounted
Operating Mode
Convertible
Total power of the motors
160 W
Type of control setting devices
7-segment display, Low-lift pushbuttons
Number of speed settings
3-stage + 2 intensive
Maximum output air extraction
410 m³/h
Boost position air extraction
730 m³/h
Sound power at max. speed (2010/30/EC)
58 dB
Sound power boost (2010/30/EC)
72 dB
Maximum output recirculating air
310 m³/h
Boost position output recirculating
380.0 m³/h
Sound power at max. speed (recirculation)
70 dB
Sound power boost (recirculation)
75 dB
Grease filter material
Washable stainless steel
Energy efficiency rating
A
Total annual energy consumption
31.4 kWh/a
Height of the appliance
387 mm
Width of the appliance
900 mm

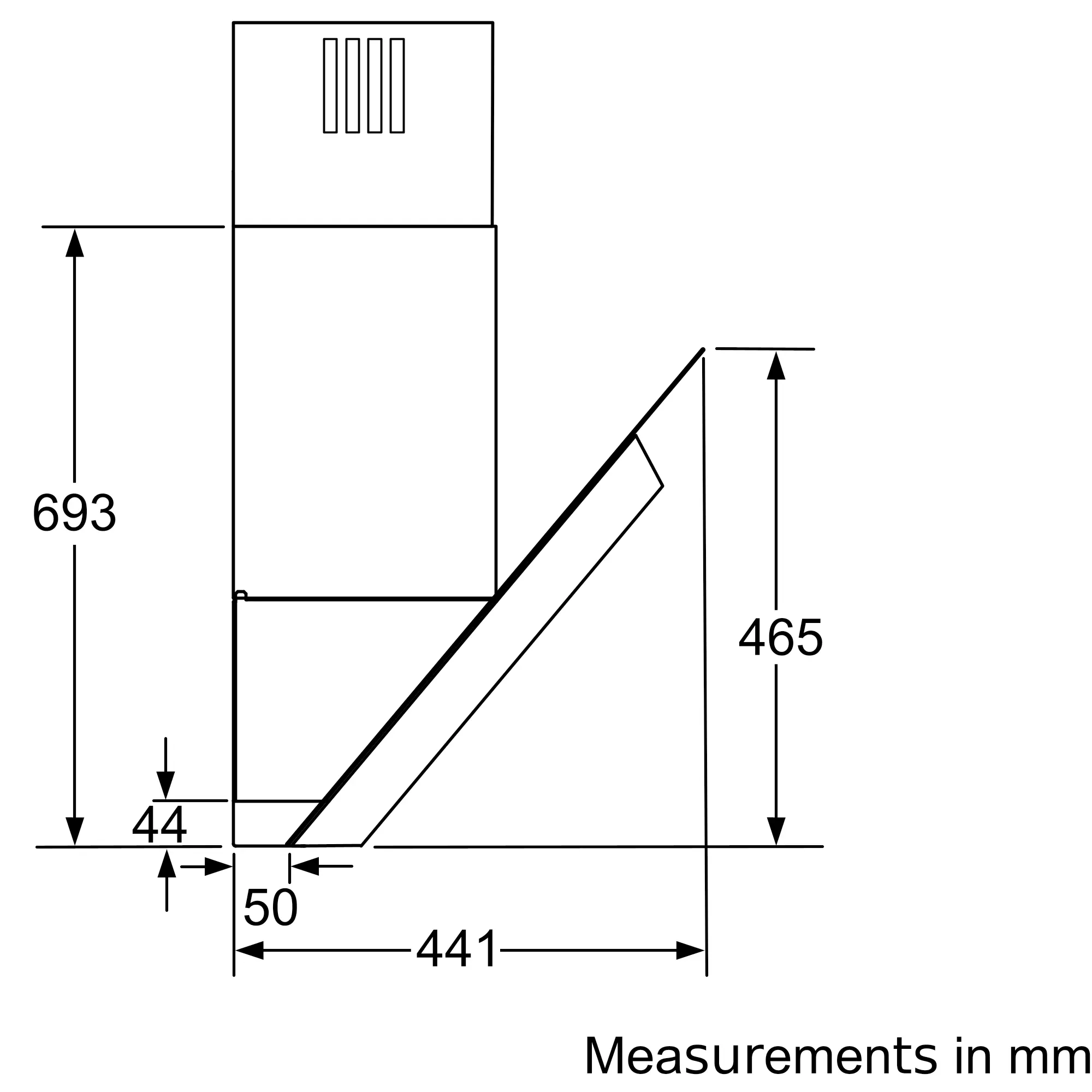

Depth
441 mm
Dimensions of the packed product (HxWxD)
695 x 740 x 965 mm
Height of the chimney
582-920/582-1030 mm

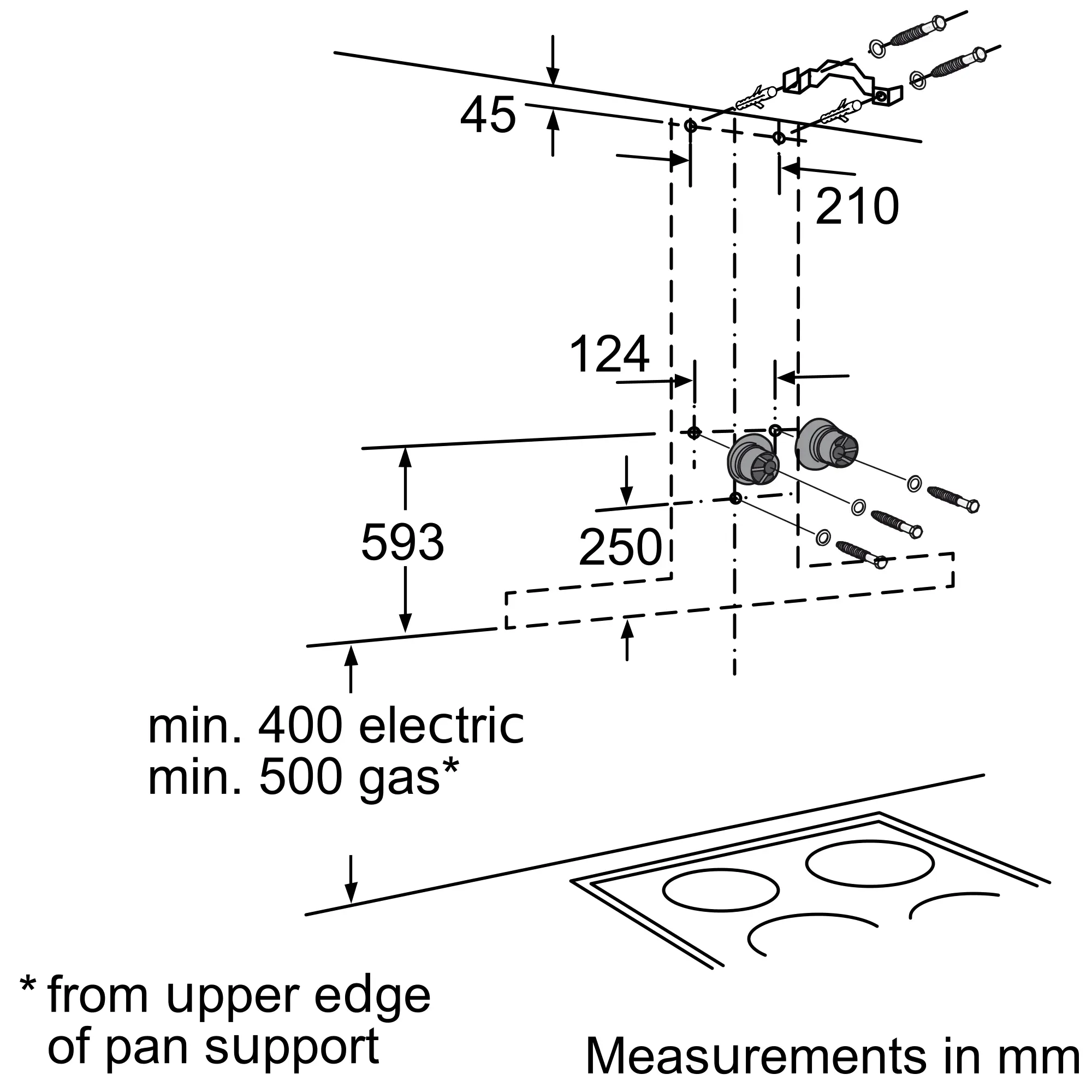

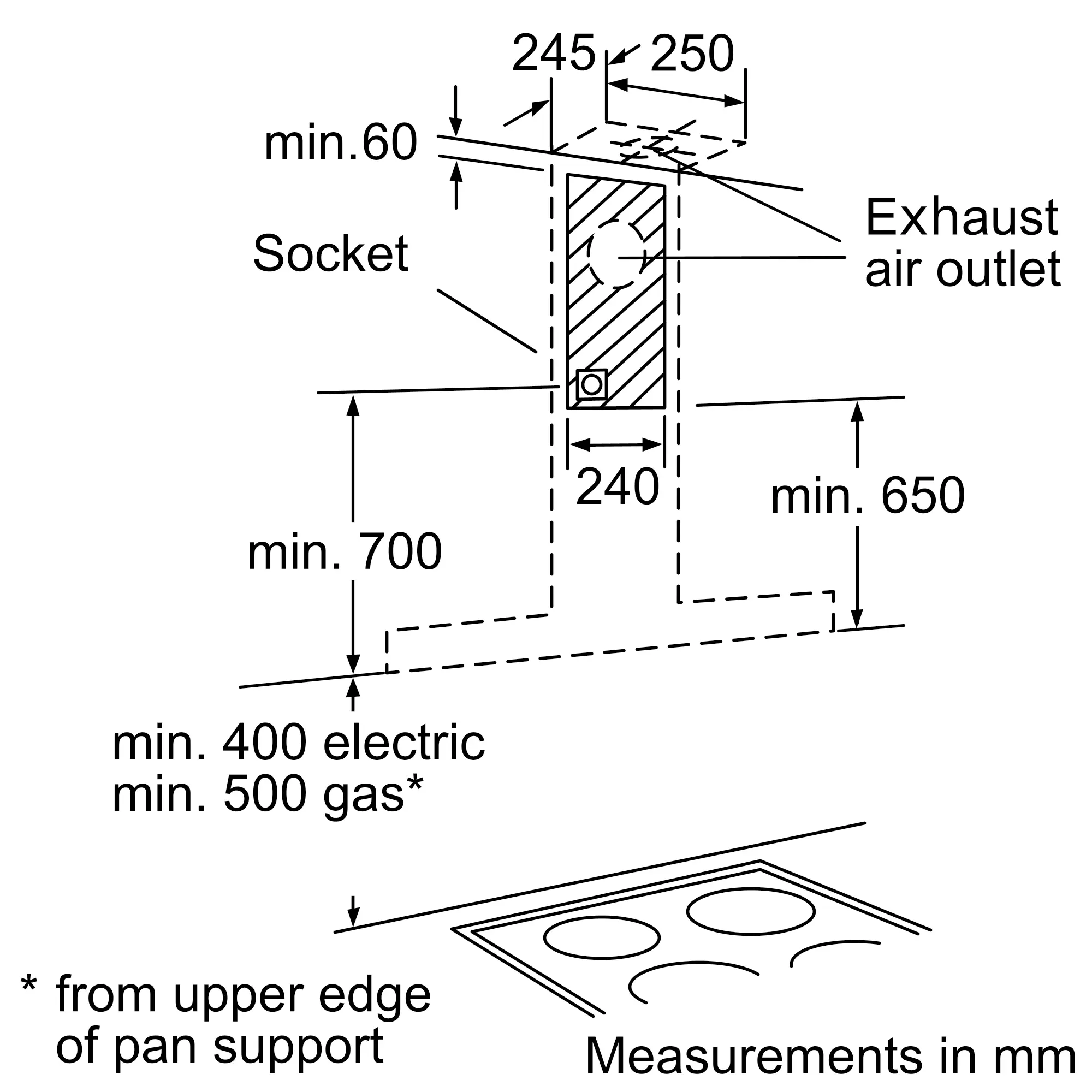

Minimum distance above an electric hob
400 mm
Minimum distance above a gas hob
500 mm
Diameter of air outlet
150 / 120 mm
No-return airflow flap
No
Length electrical supply cord
130 cm
Net weight
30.4 kg
Handle bar
N/A

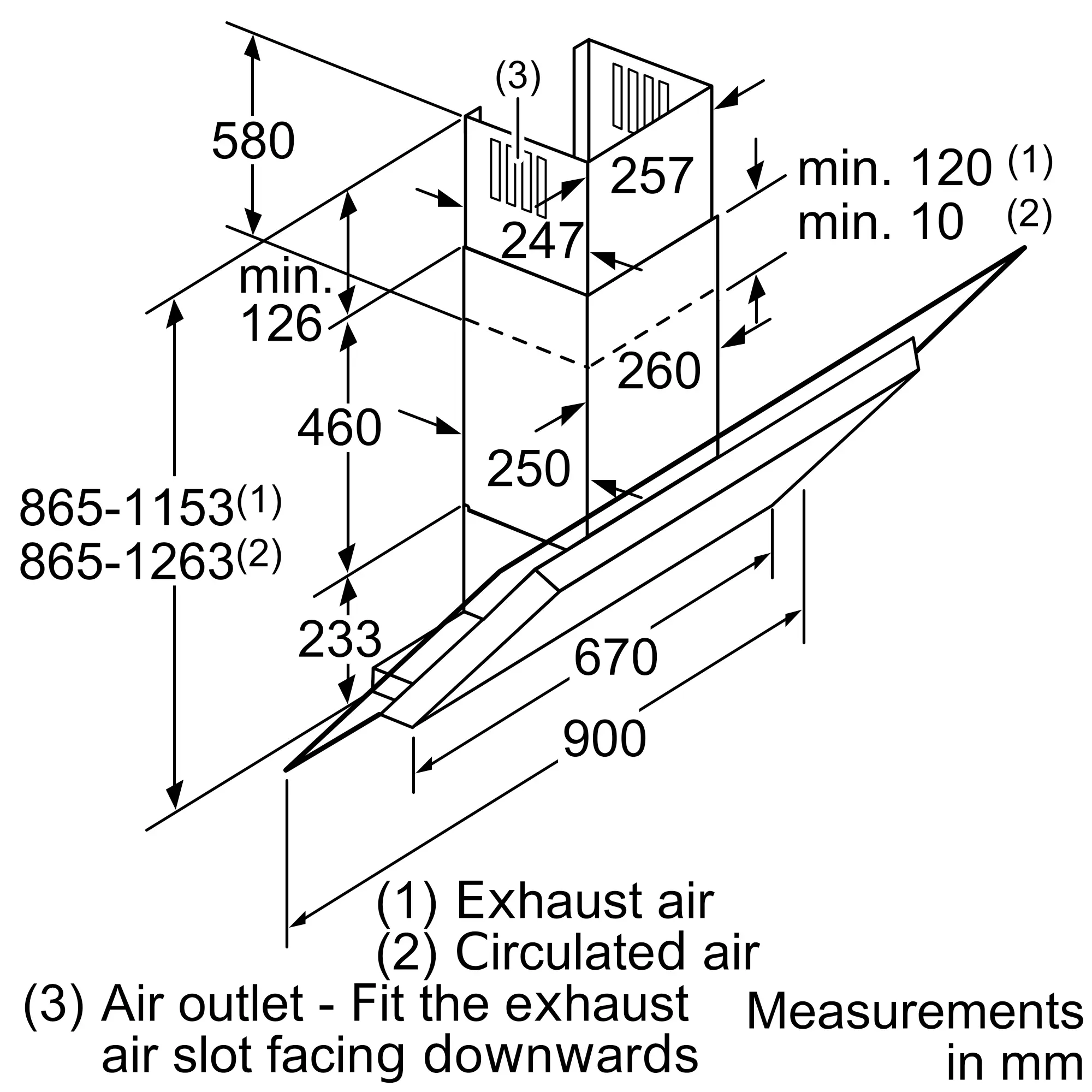

Appliance height exhaust air max
1153 mm
Appliance height exhaust air min
865 mm
Appliance height recirculating max
1263 mm
Appliance height recirculating min
865 mm
1 / 0
climatecontrol sensor
No
SilentPowerDrive
Yes
Silence
Yes
Clean filter reminders
Yes
Boost position
Yes
Delay Shut off modes
Yes
Remote control
No
Type of lamps used
LED
Number of lights
2
Total power of the lamps
6 W
Total luminance
581 lux
Colour temperature
Neutral (3.500 K)
Illumination type softlight
Yes
Color temperature control via smartphone with Home Connect
No
emotionLight Pro
No
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Control your hood with your Home Connect hob
No
Smart Hood Automatic
No
