Conventional hood Stainless steel

D1613N0GB


Technical Specification

Features
  • 1 x 40 Watt lamps
  • 1 paper grease filter
Design
  • 60 cm wide
  • For wall mounted installation or suspended beneath a reduced height wall cupboard
  • Adjustable vapour screen
  • Switch control operation
Performance/technical information
  • Suitable for ducted extraction and recirculation
  • Extraction rate according to EN 61591: max. 190 m³/h
  • Noise level according to EN 60704-3 and EN 60704-2-13 at maximum normal setting: extraction rate: 64 dB(A) re 1 pW (50 dB(A) re 20 µPa sound pressure)
  • 3 speeds
Optional accessories
  • Carbon odour filter cassette Z5110X3
  • Paper grease filters Z5200X0
Additional product information
General
Type of appliance width (cm) 60 cm
Depth of the product 510 mm
Construction type Built-in
Operating Mode Convertible
Maximum output recirculating air (m3/h) 150
Sound pressure max. normal 50
Type of control setting and signalling devices Rocker switches
Energy efficiency class (2010/30/EC) E
Construction type
Diameter of air outlet (mm) 100 / 120 mm
Color body Stainless steel
Grease filter material Not washable synthetic
Grease filter type Multilayer
Installation type Built-in
Material body Stainless steel
Number of motors (Stck) 1
Operating Mode Convertible
Typology Traditional
Connection
Connection rating (W) 115 W
Length of electrical supply cord (cm) 130 cm
Frequency (Hz) 50 Hz
Total power of the lamps (W) 30 W
Total power of the motors (W) 85 W
Voltage (V) 220-240 V

Reviews

Accessories

  • 2 accessories found for Conventional hood:

£ 49.75

Product information



Quantity: 1

In stock
Product details

£ 38.99

Product information



Quantity: 6 Units

In stock
Product details

Download NEFF Documents

Here you can find all the NEFF documents relating to this product, including the EU energy label, EU data sheet, instalation instructions and instruction manual.

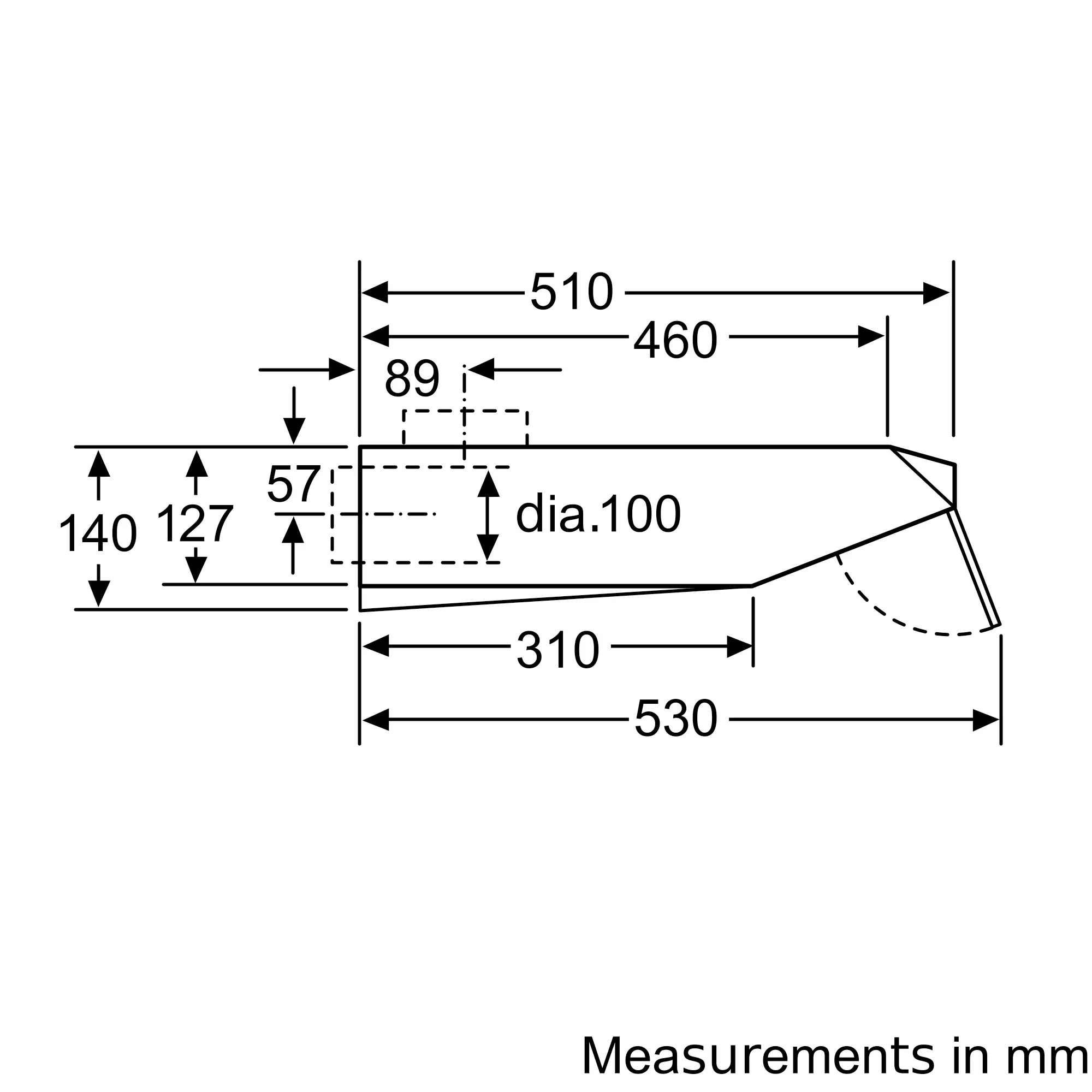

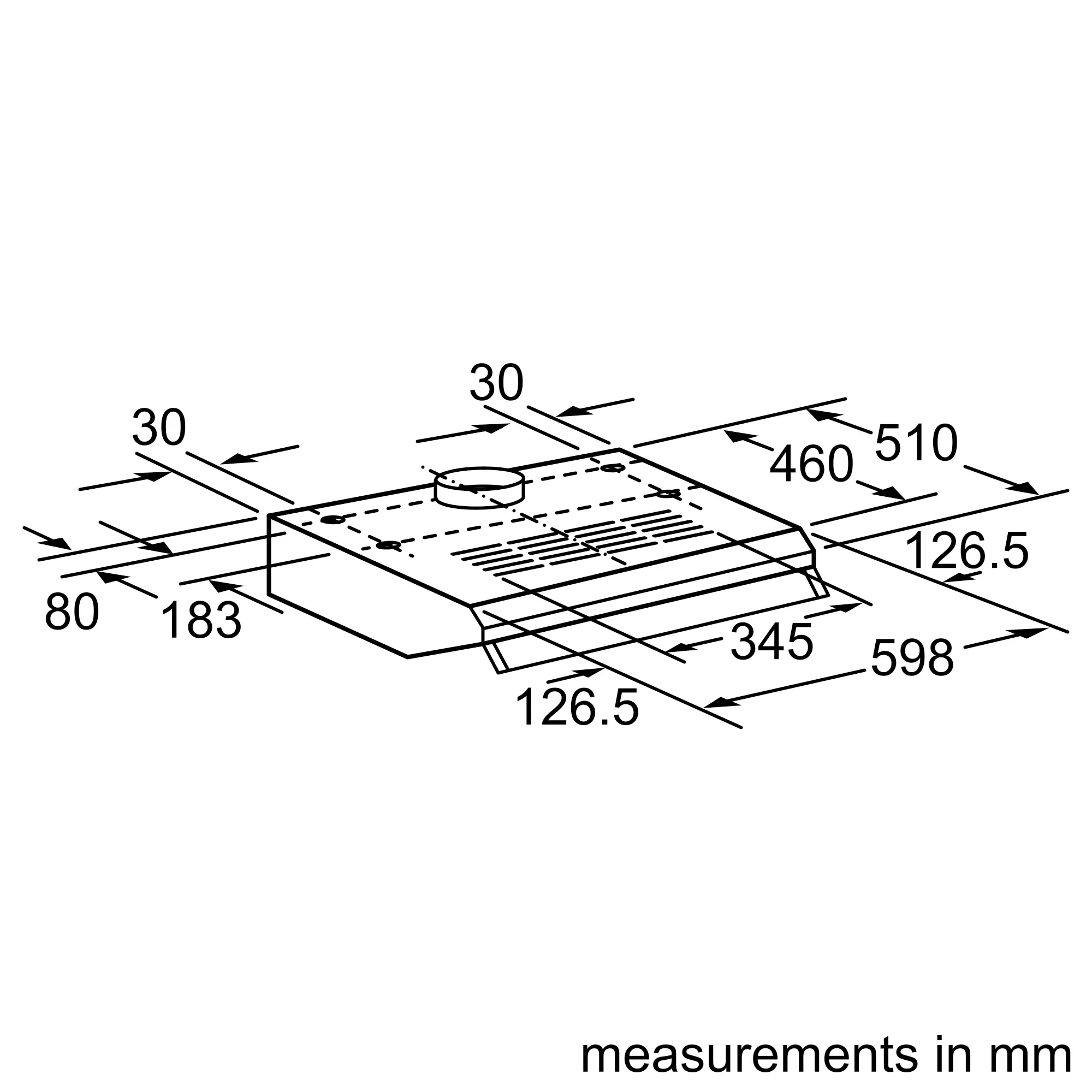

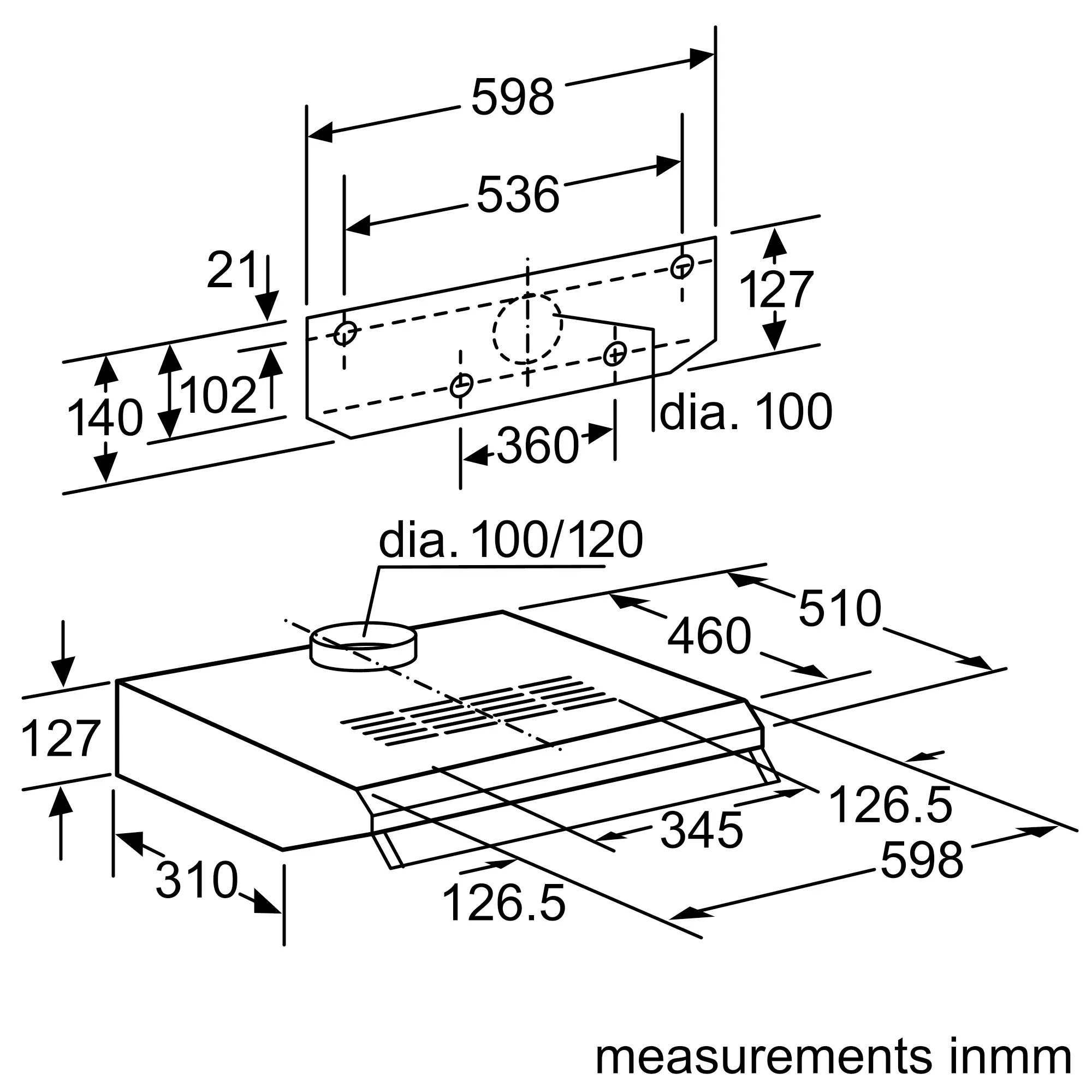

Line Drawings
